NOTE: You must install a filler bracket over an empty expansion card slot to maintain Federal Communications
Commission (FCC) certification of the system. The brackets also keep dust and dirt out of the system and aid in
proper cooling and airflow inside the system. The filler bracket is necessary to maintain proper thermal conditions.
4. Install a metal filler bracket over the empty expansion slot opening and close the expansion card latch.

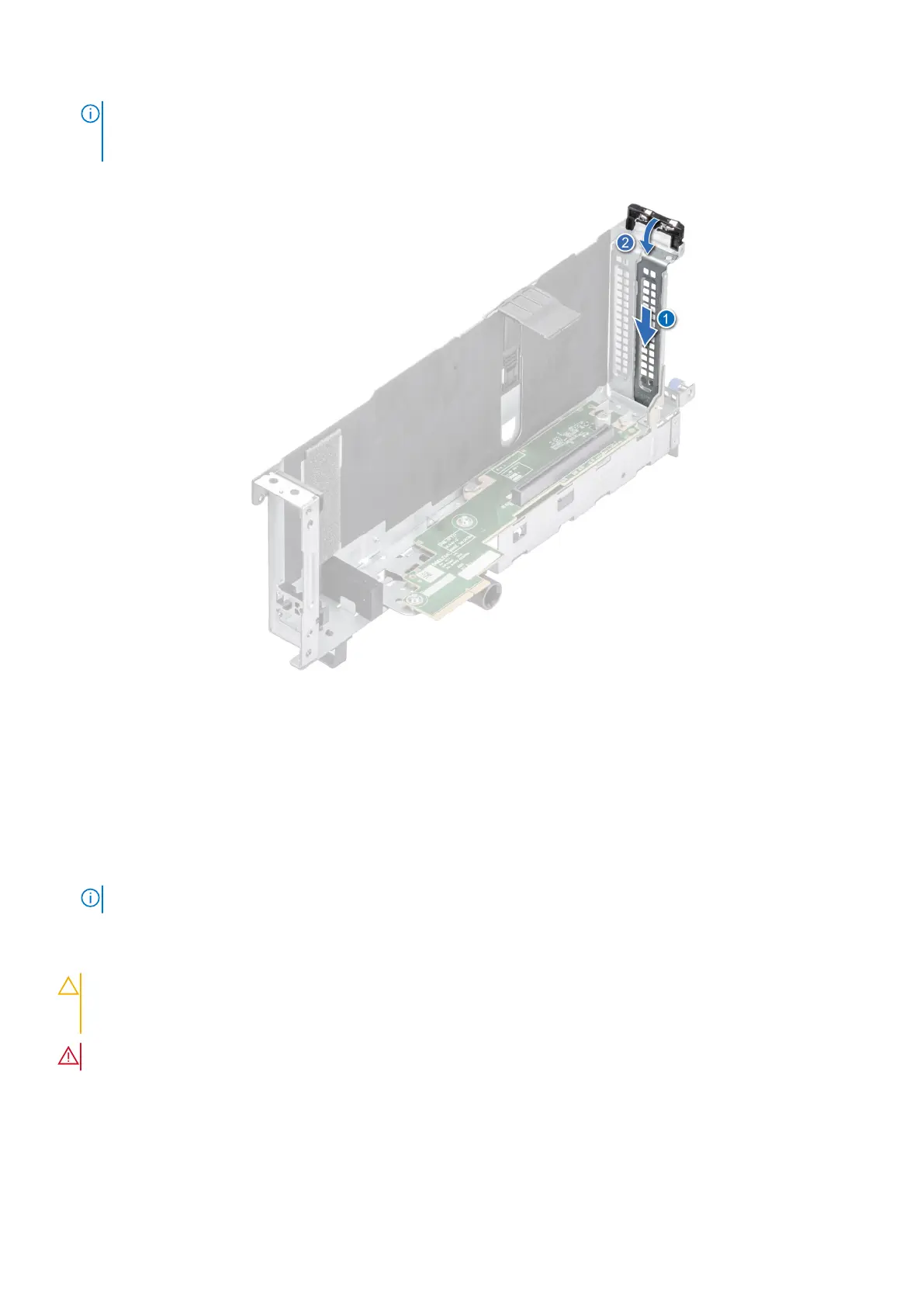

Figure 142. Installing the metal filler bracket
Installing a GPU
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. If installing a new expansion card, unpack it and prepare the card for installation.
NOTE: For instructions, see the documentation accompanying the card.
4. Remove the GPU air shroud top cover.
5. Remove the GPU air shroud filler.
6. Remove the full length expansion card riser.
CAUTION:
Do not install GPUs, network cards, or other PCIe devices on your system that are not validated
and tested by Dell. Damage caused by unauthorized and invalidated hardware installation will null and void the
system warranty.
WARNING: Consumer-Grade GPU should not be installed or used in the Enterprise Server products.
Steps
1. If installed, remove the filler bracket.
152
Installing and removing system components
