Expansion card installation guidelines

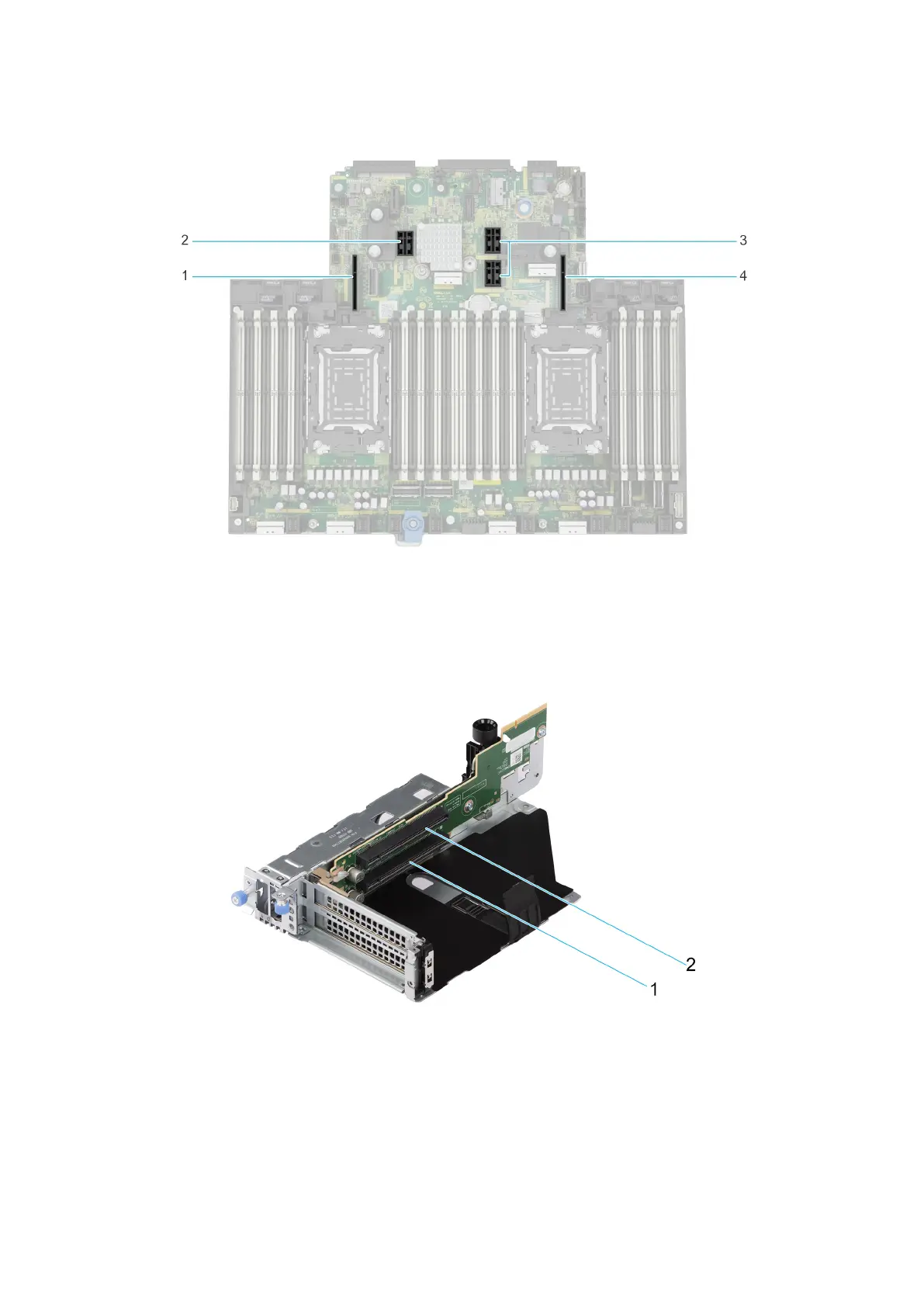

Figure 96. Expansion card riser slot connectors
1. Riser 4
2. Riser 3
3. Riser 2
4. Riser 1
Figure 97. Riser 1B
1. Slot 1
2. Slot 2
Installing and removing system components
115
