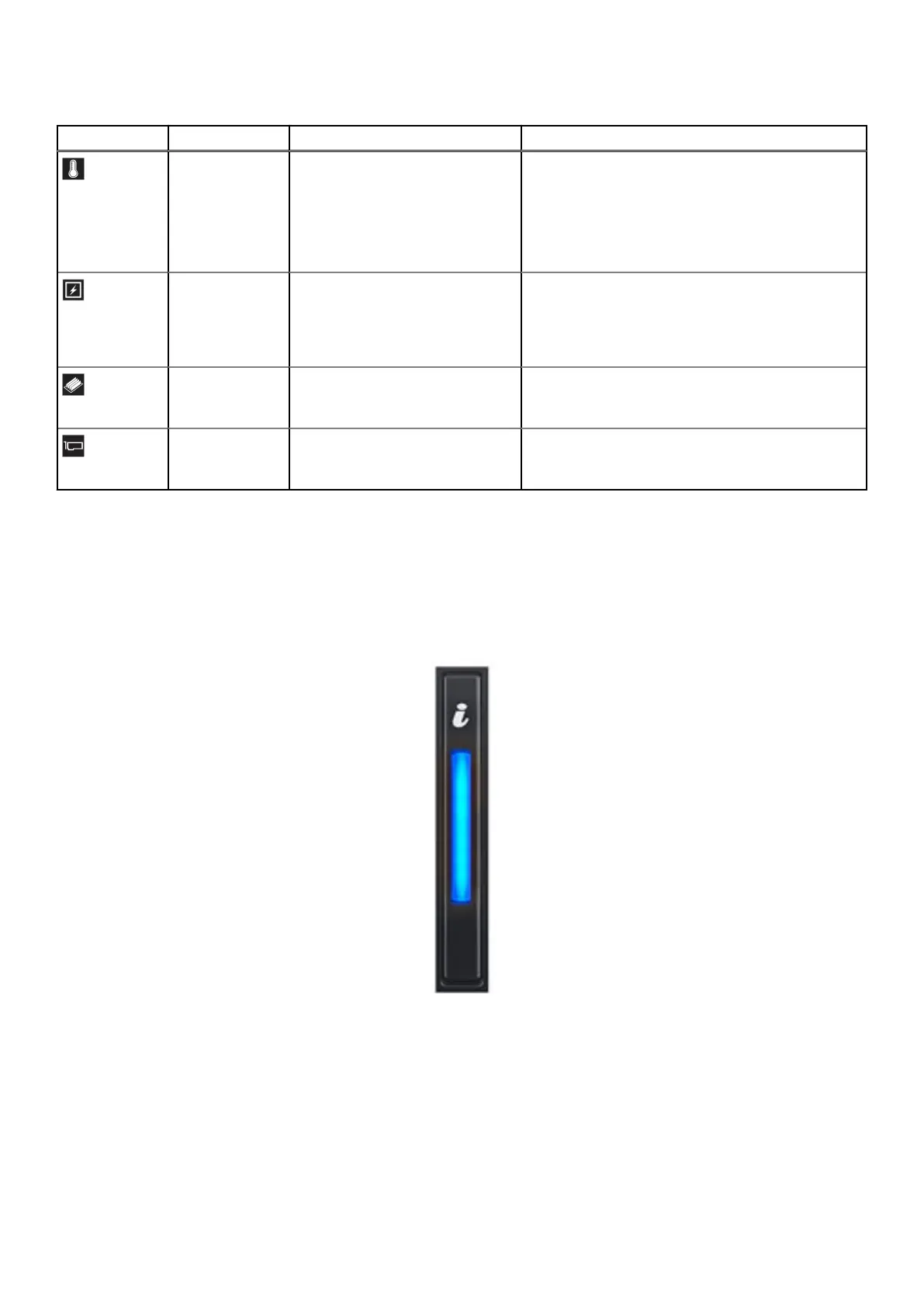

Table 63. Status LED indicators and descriptions(continued)
Icon Description Condition Corrective action
Temperature
indicator
If the system experiences a
thermal error (for example, the
temperature is out of range or a
fan fails), the indicator turns solid
amber.
Ensure that none of the following conditions exist:
● A cooling fan has been removed or has failed.
● System cover, air shrouds, or back filler bracket
has been removed.
● Ambient temperature is too high.
● External airflow is obstructed.
Electrical
indicator
If the system experiences an
electrical error (for example,
voltage out of range, or a failed
power supply unit), the indicator
turns solid amber.
Check the system event log or system messages for
the specific issue. If it is due to a problem with the
PSU, check the LED on the PSU. Reseat the PSU.
Memory indicator If a memory error occurs, the
indicator turns solid amber.
Check the System event log or system messages
for the location of the failed memory. Reseat the
memory module.
PCIe indicator If a PCIe card experiences an
error, the indicator turns solid
amber.
Restart the system. Update any required drivers for
the PCIe card. Reinstall the card.
System health and system ID indicator codes
The system health and system ID indicator is located on the left control panel of the system.
Figure 187. System health and system ID indicator
System diagnostics and indicator codes
195
