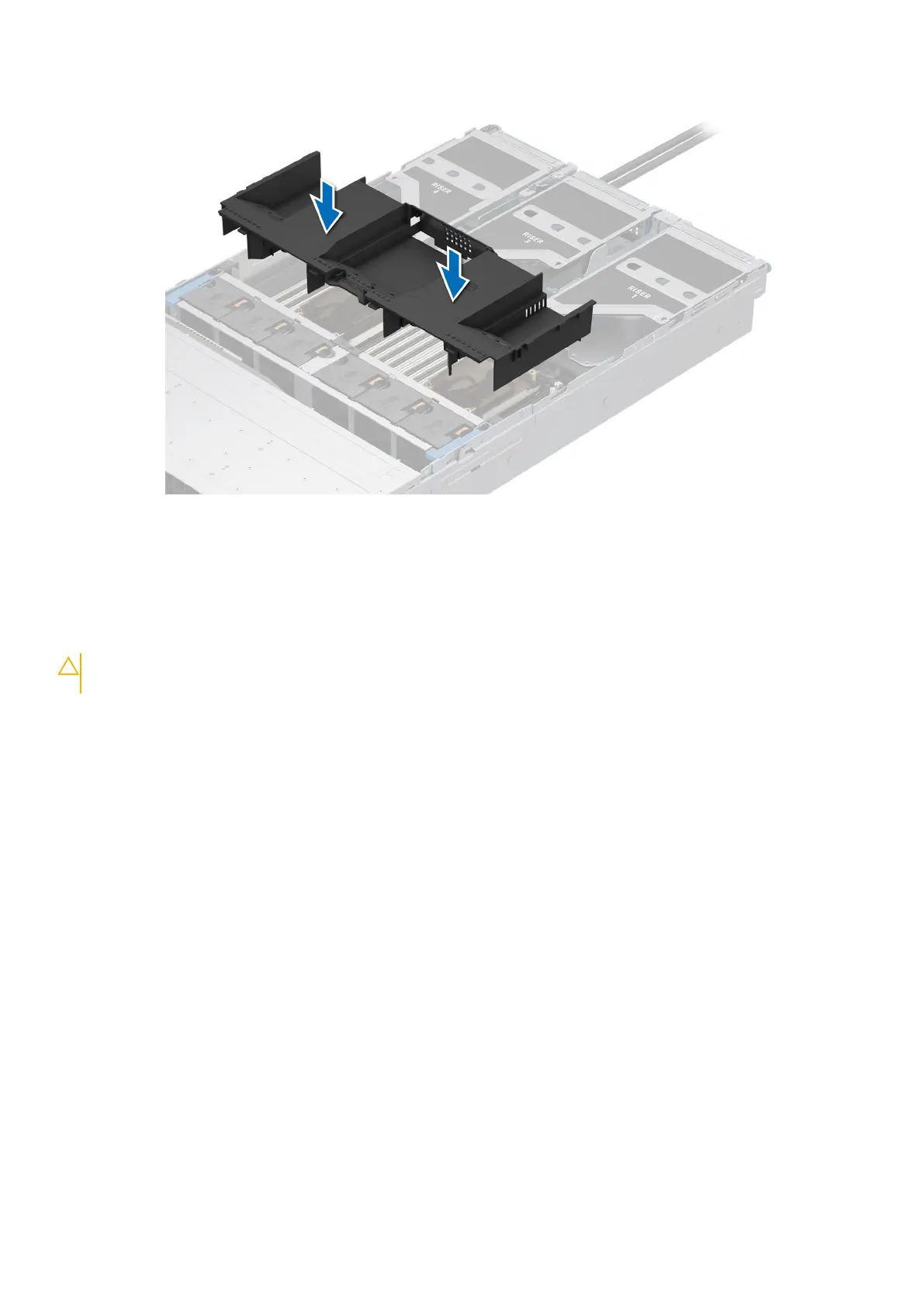

Figure 26. Installing the air shroud
Removing the GPU air shroud top cover
Prerequisites
CAUTION:
Never operate your system with the air shroud removed. The system may get overheated quickly,
resulting in shutdown of the system and loss of data.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
Press the tabs on either sides of the top cover, and lift the top cover out of the GPU air shroud.
Installing and removing system components
55
