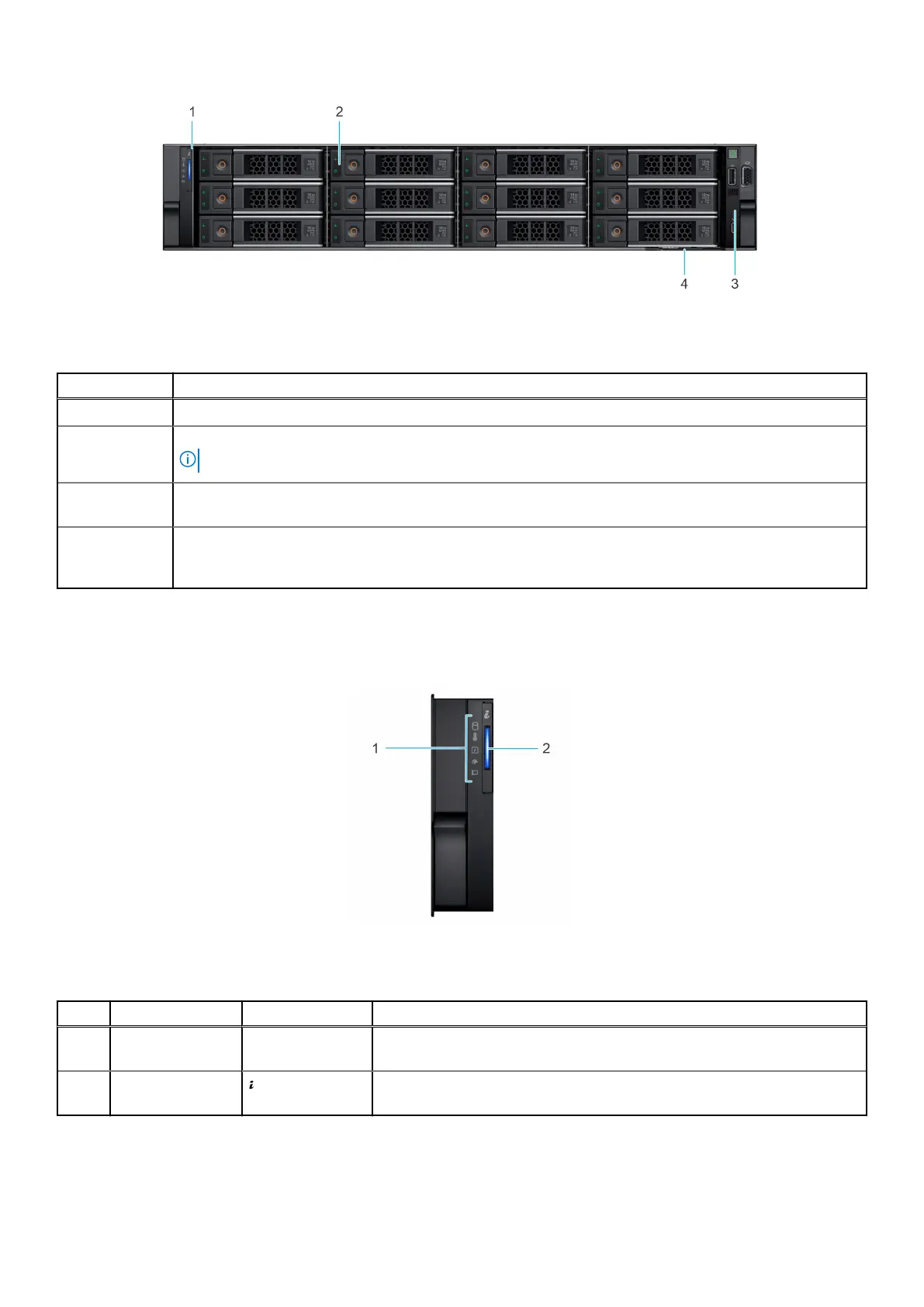

Figure 2. Front view of 12 x 3.5-inch drive system
Table 1. Features available on the front of the system
Item Description of ports, panels, and slots
1 Left control panel - Contains the system health, system ID, and the status LED indicator.
2 Drive - Drives that are supported on your system.
NOTE: For drive slot numbers, see the System information labels section.
3 Right control - Contains the power button, VGA port, USB port, iDRAC Direct (Micro-AB USB) port, and the
iDRAC Direct status LED. panel
4 Information tag - A slide-out label panel that contains the Service Tag, NIC, MAC address, and other system
information. The Information tag contains the iDRAC secure default password for systems that have the
secure default access to iDRAC.
Left control panel view
This section provides information about the LED and system health indicators on the left control panel of the XC760.
Figure 3. Left control panel
Table 2. Left control panel
Item Indicator Icon Description
1. Status LED
indicators
N/A Indicates the status of the system. For more information, see the Status
LED indicators section.
2. System health and
system ID indicator
Indicates the system health. For more information, see the System health
and system ID indicator codes section.
For more information about the indicator codes, see the
System diagnostics and indicator codes section.
Dell XC Core XC760 overview
9
