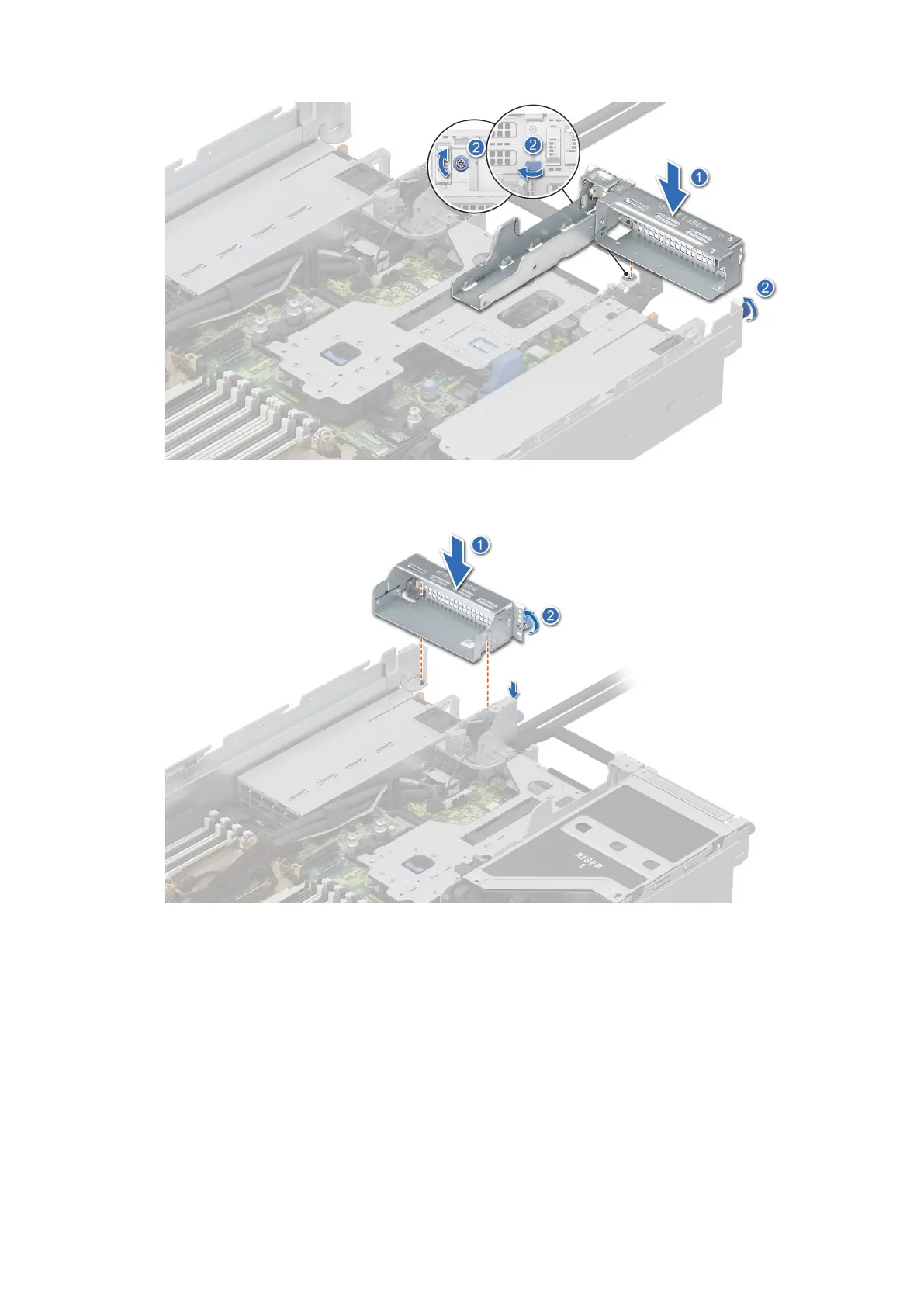

Figure 134. Installing the Riser 1 blank
Figure 135. Installing the Riser 4 blank
Installing the full length expansion card risers
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. If installing full length expansion card riser for the first time, remove the air shroud and replace it with the GPU air shroud.
4. Remove the GPU air shroud top cover.
5. If installed, remove the GPU air shroud filler.
6. If removed, install the GPU into the expansion card risers.
