Dell XC Core XC760 User Manual

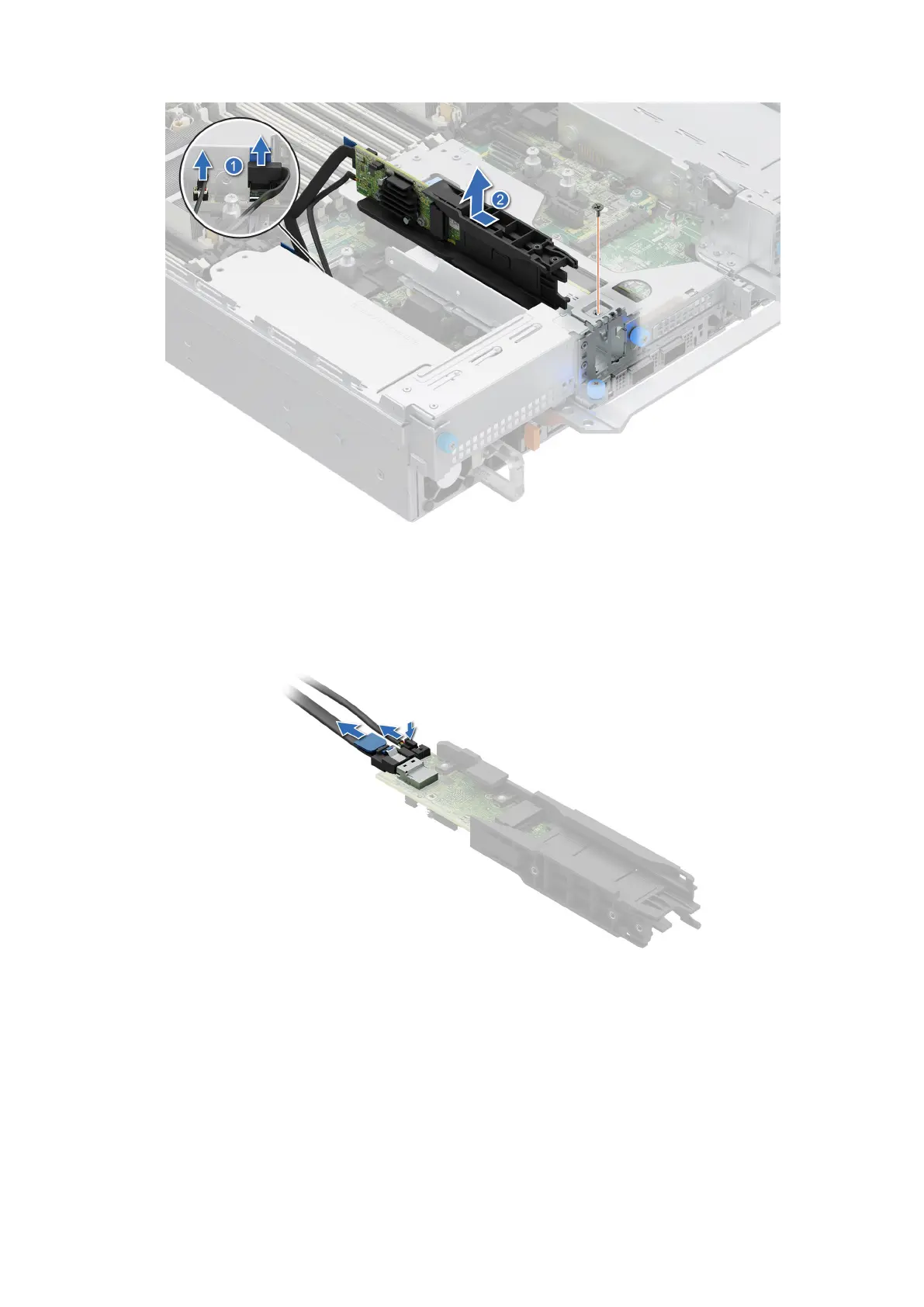

Figure 160. Removing the BOSS-N1 module
8. Pull the blue tag to remove the BOSS-N1 signal cable from the BOSS-N1 module.
9. Remove the BOSS-N1 power cable from the BOSS-N1 module.
Figure 161. Removing the BOSS-N1 power and signal cable from the BOSS-N1 module
Installing the BOSS-N1 module
The installation of the BOSS-N1 module to the Riser 1 and 4 x 2.5-inch rear drive module is similar.
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
Installing and removing system components
165
