Dell XC Core XC760 User Manual

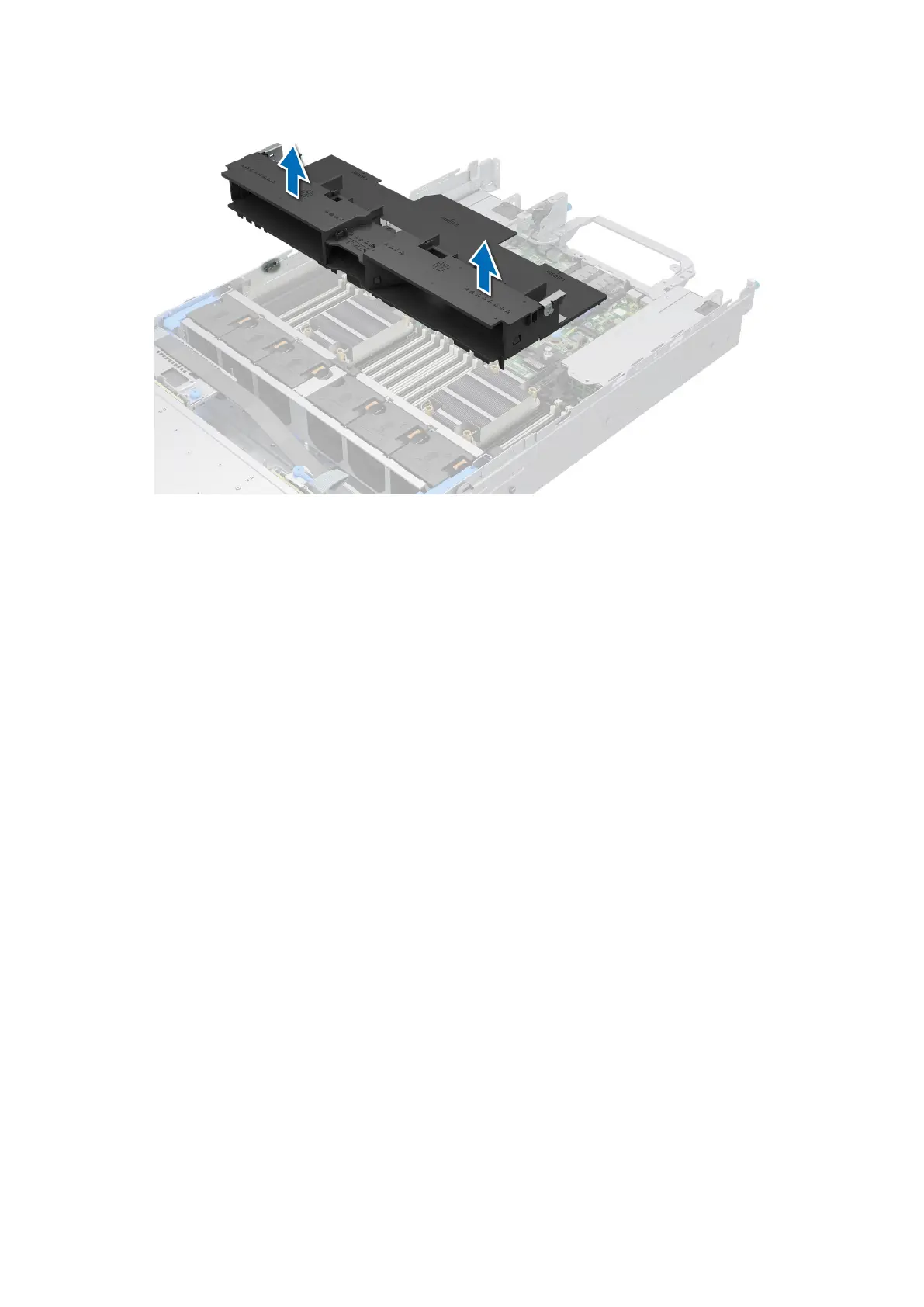

Figure 31. Removing the GPU air shroud
Installing the GPU air shroud
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the GPU air shroud top cover.
4. Remove the full length expansion card risers.
Steps
1. Align the tabs on the GPU air shroud with the slots on the system.
2. Lower the GPU air shroud into the system until it is firmly seated.
60
Installing and removing system components
