Dell XC Core XC760 User Manual

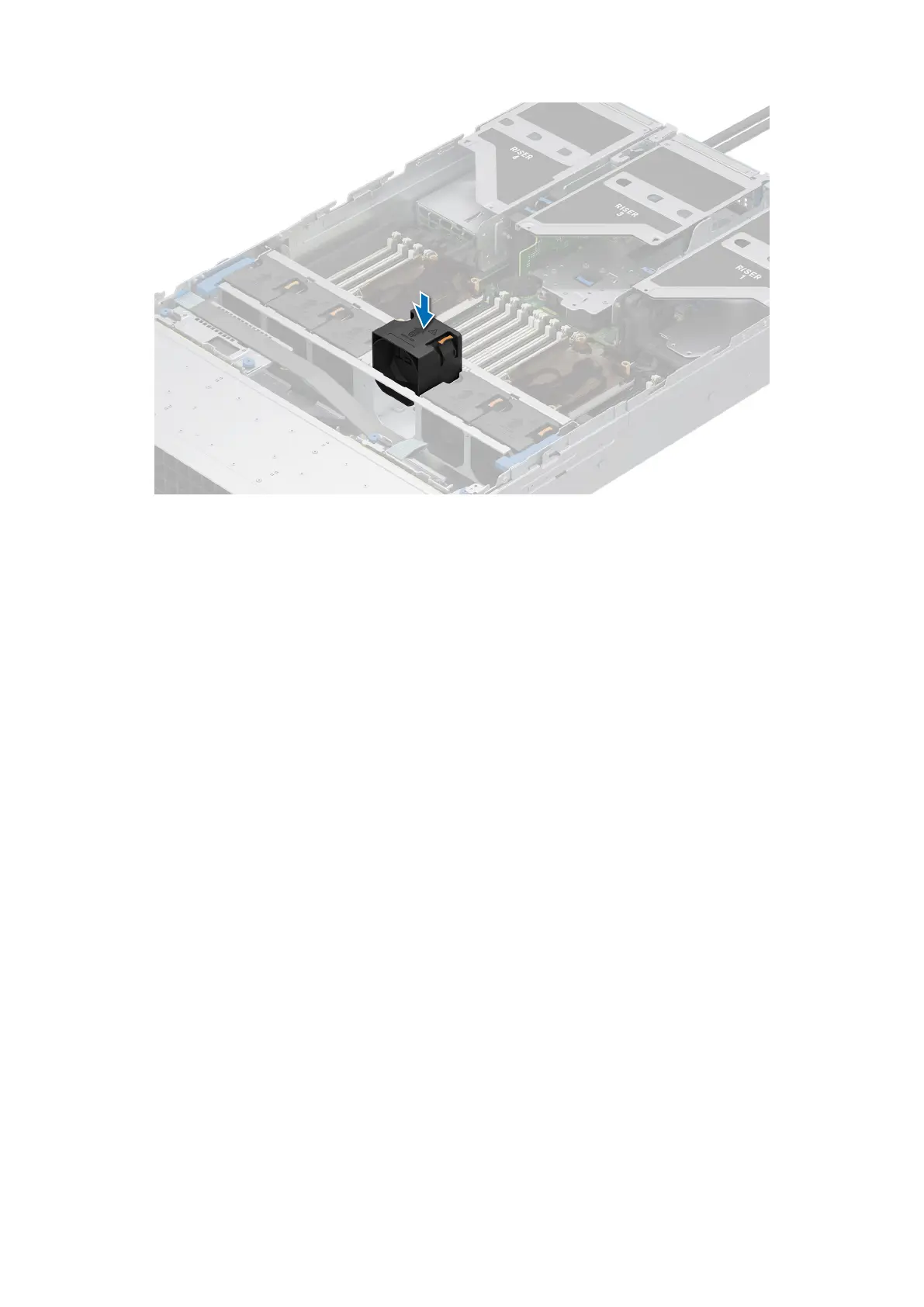

Figure 38. Installing a cooling fan
Removing a 2 x 2.5-inch rear drive module cooling fan
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the 2 x 2.5-inch rear drive module air shroud.
Steps
Press the orange release tab and lift the rear drive module cooling fan to disconnect from the connector on the rear drive
module.
Installing and removing system components
67
