Air shrouds
Removing the air shroud
Prerequisites
CAUTION: Never operate your system with the air shroud removed. The system may get overheated quickly,
resulting in shutdown of the system and loss of data.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
Hold the edges of the air shroud, and lift the air shroud out of the system.

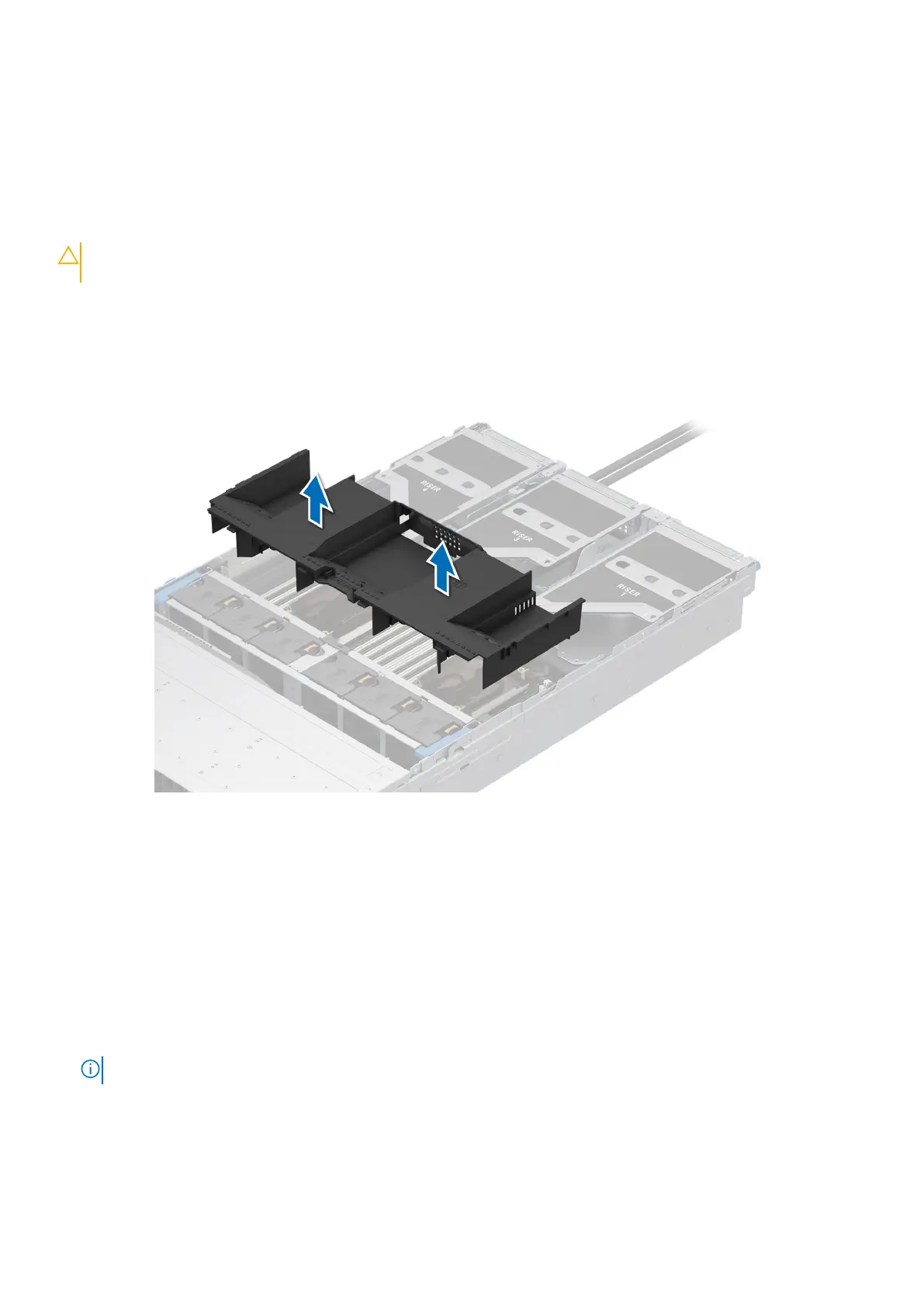

Figure 25. Removing the air shroud
Installing the air shroud
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Tilt the air shroud at an angle and align the air shroud tabs with the system slots.
NOTE: Ensure that the air shroud tabs are below the surface of the cooling cage fan assembly.
2. Lower the air shroud into the system until it is firmly seated.
54
Installing and removing system components
