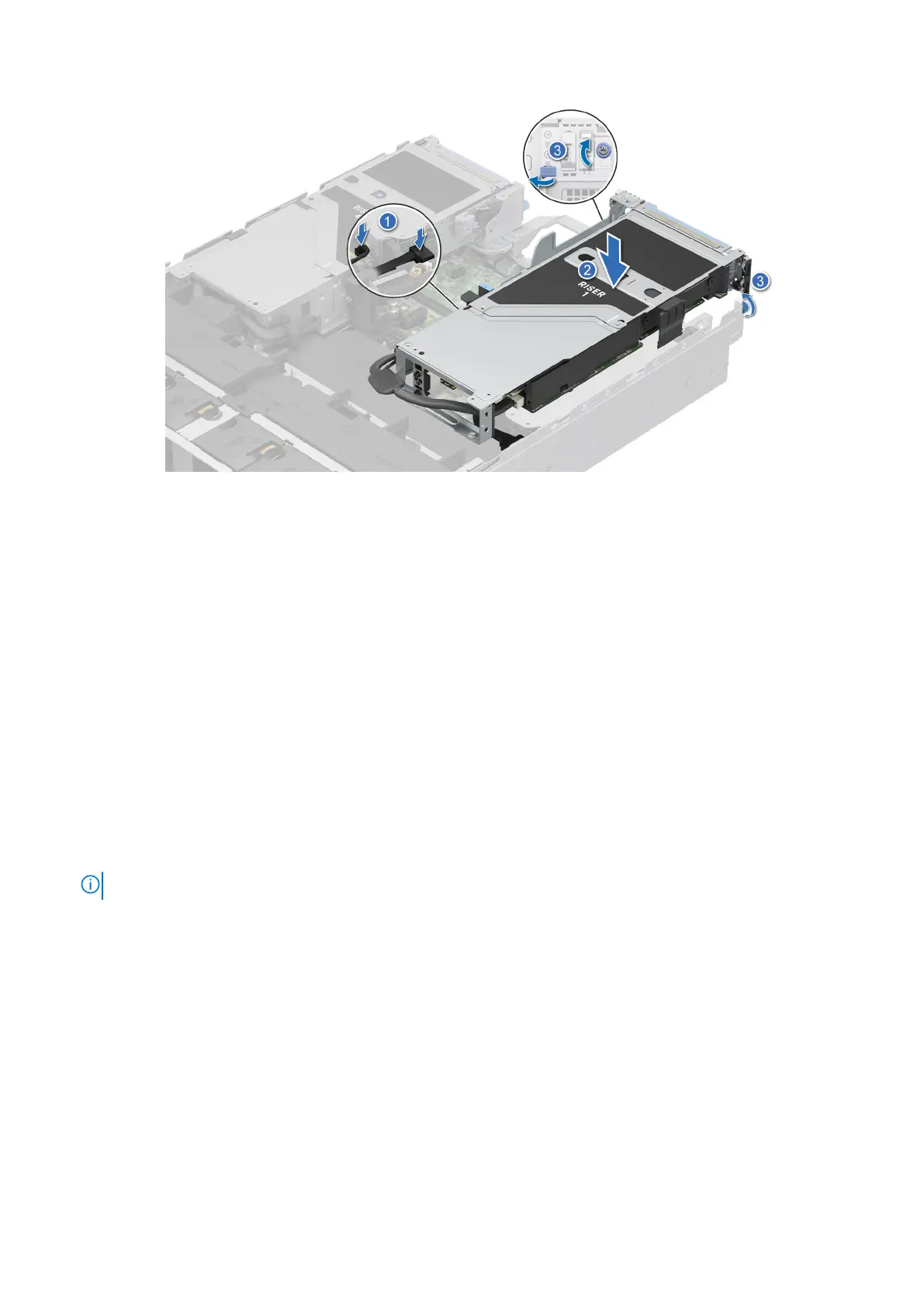

Figure 139. Installing the expansion card riser (Riser 1)
Removing a GPU
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. If applicable, disconnect the cables from the expansion card.
4. Remove the GPU air shroud top cover.
5. Remove the full length expansion card riser.
Steps
1. To remove the GPU from Riser 1:
a. Tilt the expansion card holder latch on the riser.
b. Press the tab, and pull the card holder from the riser.
c. Hold the GPU card by the edges and pull the card from the riser.
d. Disconnect the GPU power cable from the GPU card.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
150 Installing and removing system components
