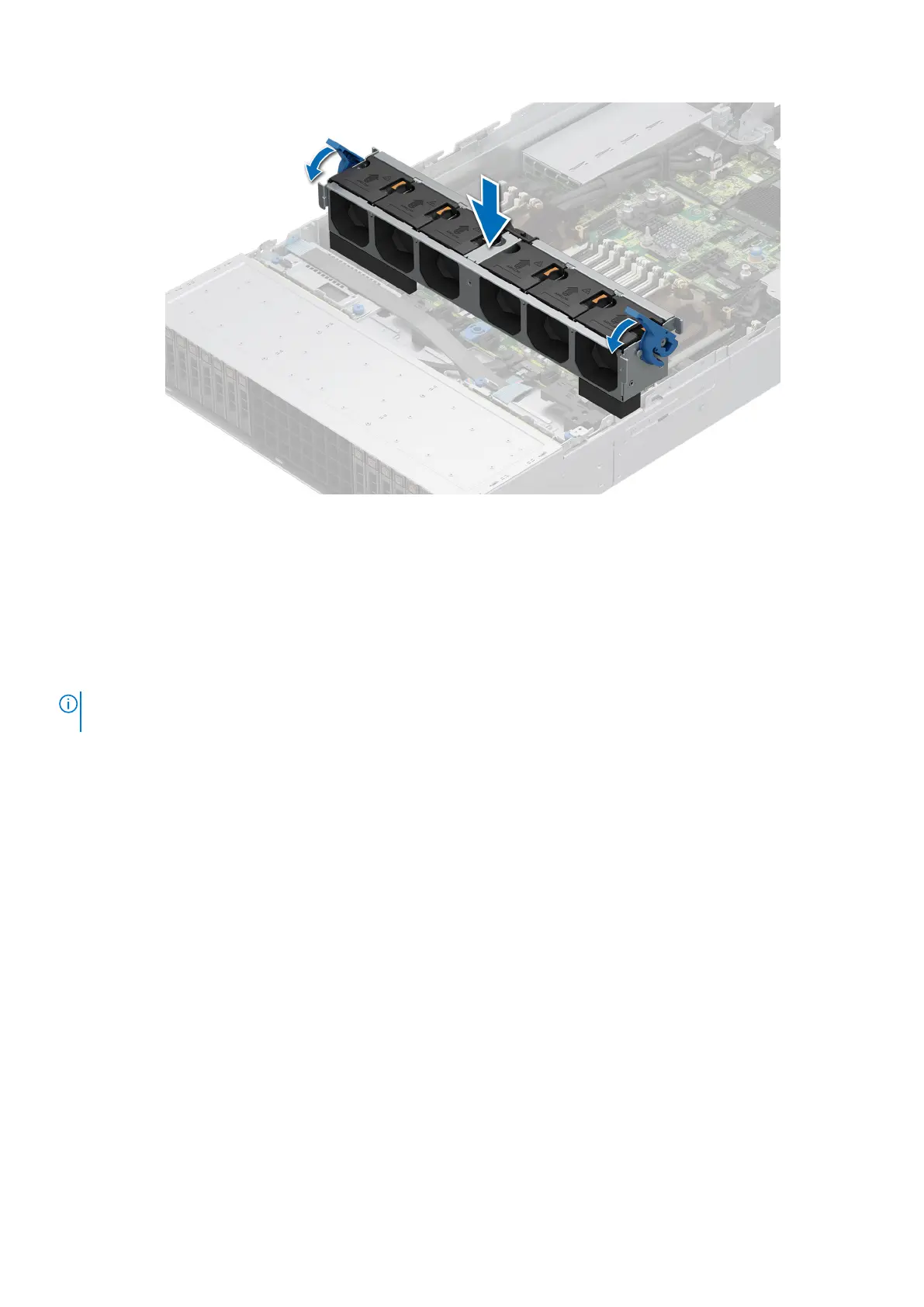

Figure 36. Installing the cooling fan cage assembly
Removing a cooling fan
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
NOTE:
The procedure for removing a standard (STD), high-performance silver grade (HPR SLVR), or high-performance
gold grade (HPR GOLD) fan is the same.
Steps
Press the orange release tab and lift the cooling fan to disconnect the fan from the connector on the system board.
Installing and removing system components
65
