Removing the full length expansion card risers
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the GPU air shroud top cover.
4. If applicable, disconnect the cables from the expansion card or system board.
5.
NOTE: If BOSS-N1 module is installed, be sure to disconnect the BOSS-N1 power cable and signal cable before
removing the Riser 1 cage.
Steps

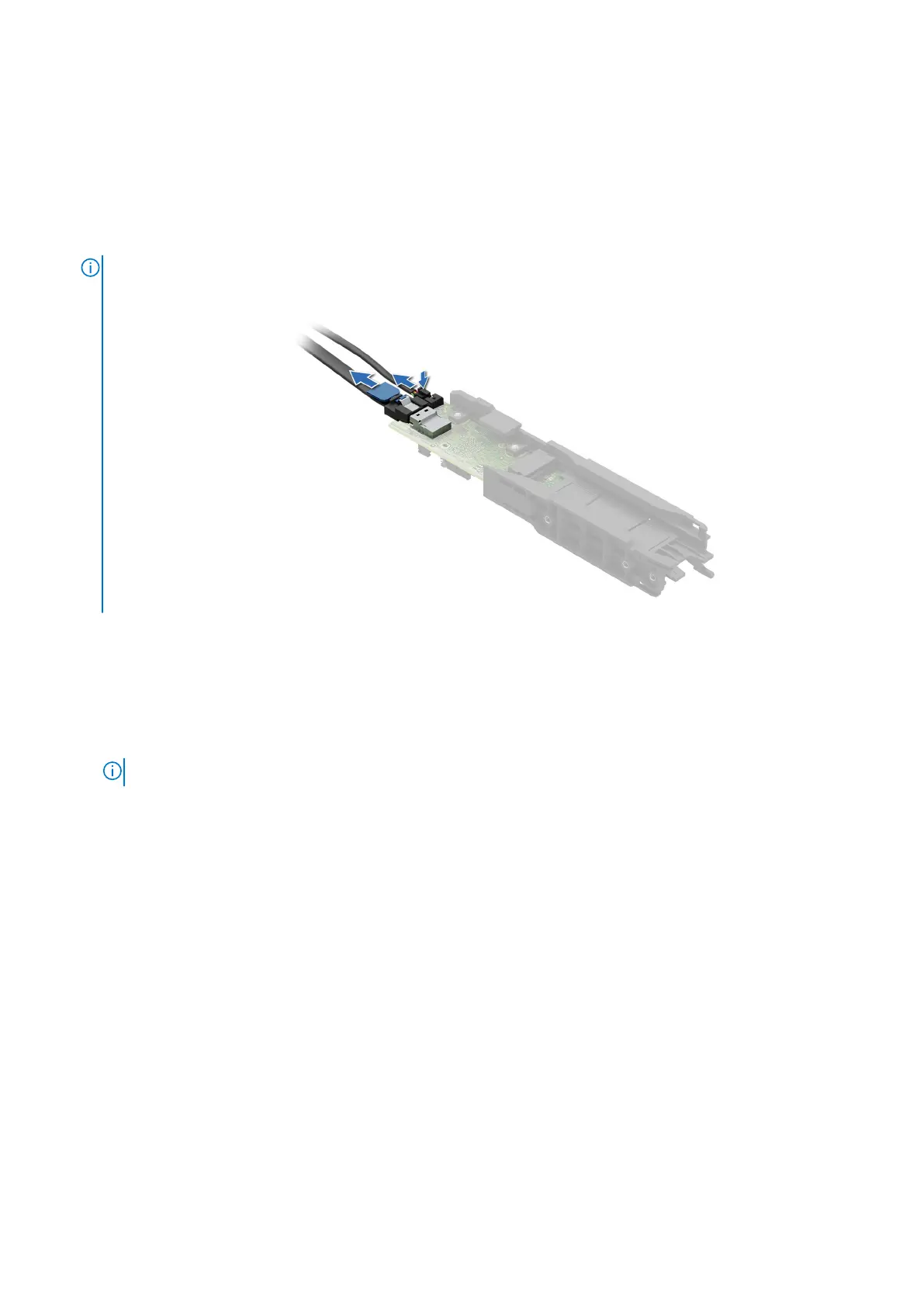

1. To remove full length expansion card riser:
a. Loosen the captive screws on the riser.
b. Press the blue release tab and holding the edges, lift the expansion card riser from the riser connector on the system
board.
c. Disconnect the GPU power cable and signal cable from the system board.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
Installing and removing system components 145
