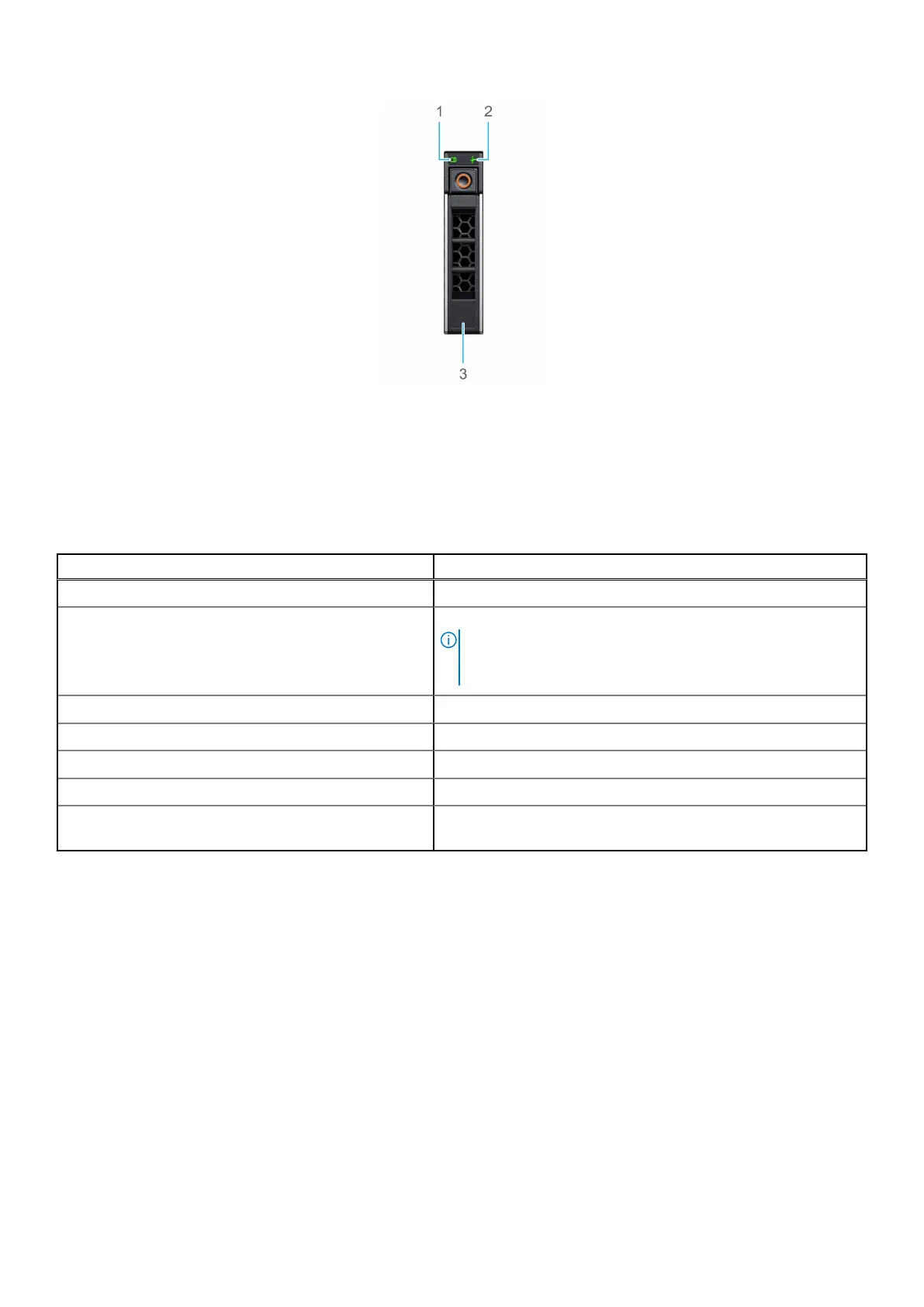

Figure 191. Drive indicators
1. Drive activity LED indicator
2. Drive status LED indicator
3. Drive capacity label
If the drive is in the Advanced Host Controller Interface (AHCI) mode, the status LED indicator does not power on. Storage
Spaces Direct manages the drive status indicator behavior. Not all drive status indicators may be used.
Table 71. Drive indicator codes
Drive status indicator code Condition
Blinks green twice per second An identified drive is preparing for removal.
Not powered on The drive is ready for removal.
NOTE: The drive status indicator remains off until all drives
are initialized after the system is powered on. Drives are not
ready for removal during this time.
Blinks green, amber, and then powers off An unexpected drive failure has occurred.
Blinks amber four times per second The drive has failed
Blinks green slowly The drive is rebuilding.
Solid green The drive is online.
Blinks green for three seconds, amber for three seconds,
and then powers off after six seconds.
The rebuild has stopped.
Use system diagnostics
If you experience an issue with the system, run the system diagnostics before contacting Dell for technical assistance. The
purpose of running system diagnostics is to test the system hardware without using additional equipment or risking data loss.
If you are unable to fix the issue yourself, service and support personnel can use the diagnostics results to help you solve the
issue.
Dell Embedded System Diagnostics
The Dell Embedded System Diagnostics is also known as Enhanced Pre-boot System Assessment (ePSA) diagnostics.
The Embedded System Diagnostics provide a set of options for particular device groups or devices allowing you to:
● Run tests automatically or in an interactive mode
● Repeat tests
● Display or save test results
● Run thorough tests to introduce additional test options to provide extra information about the failed device(s)
200
System diagnostics and indicator codes
