Table 7. Components inside the system with full-length risers and GPU shroud(continued)
Item Description
7 Intrusion switch module
8 Power supply unit (PSU2)
9 Power supply unit (PSU1)
10 Rear handle
11 Expansion riser 1
12 Expansion riser 2
13 System board
14 Cooling fan cage assembly
15 Backplane
16 Express Service Tag
Locating the Express Service Code and Service Tag
The unique Express Service Code and Service Tag are used to identify the system.
The Express Service Tag is located on the front of the system that includes system information such as the Service Tag,
Express Service Code, Manufacture date, NIC, MAC address, QRL label, and so on. If you have opted for the secure default
access to iDRAC, the Information tag also contains the iDRAC secure default password. If you have opted for iDRAC Quick Sync
2, the Information tag also contains the OpenManage Mobile (OMM) label, where administrators can configure, monitor, and
troubleshoot the PowerEdge servers.

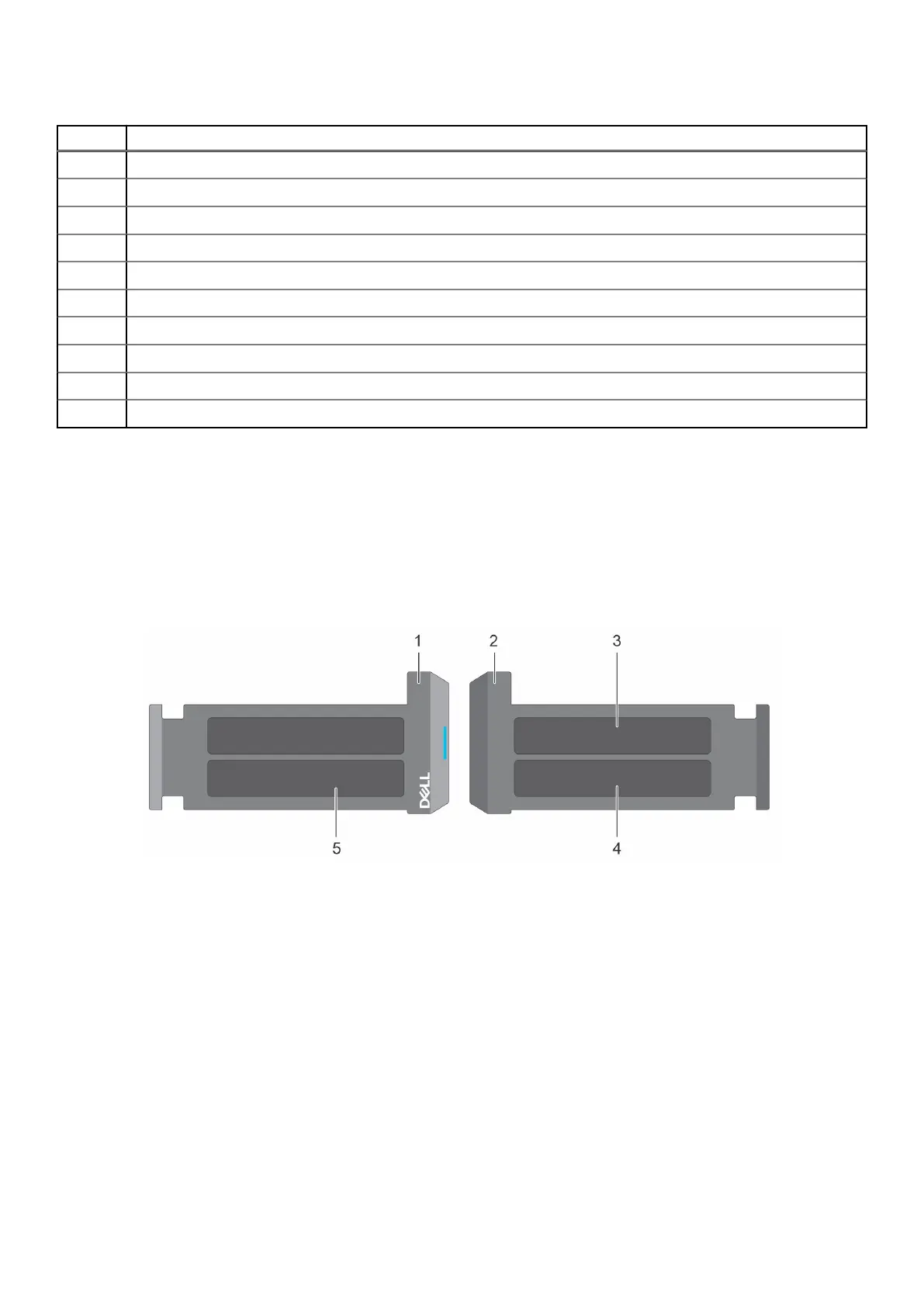

Figure 9. Locating the Express Service Code and Service tag
1. Express Service Tag (front view)
2. Express Service Tag (rear view)
3. OpenManage Mobile (OMM) label
4. iDRAC MAC address and iDRAC secure password label
5. Service Tag, Express Service Code, QRL label
The Mini Enterprise Service Tag (MEST) label is on the rear of the system that includes the Service Tag (ST), and Express
Service Code (Exp Svc Code). The Exp Svc Code is used by Dell to route support calls to the appropriate personnel.
