3.3. Simple measurement
This chapter describes measurement basics, how to configure SIRIUS and gives some details on the
measurement setup.
3.3.1. Help - manual

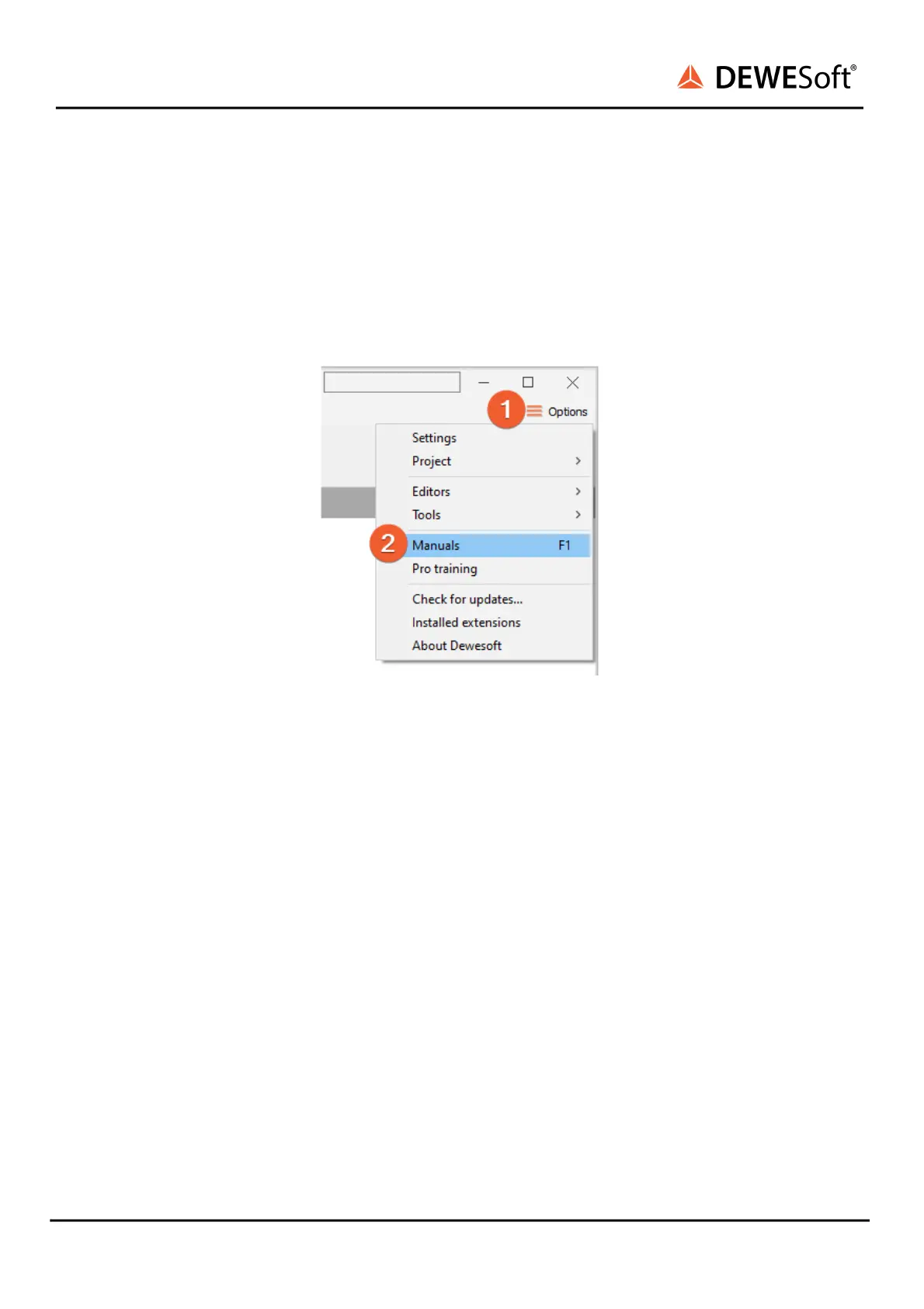

Note that this document is just a quick start guide. For detailed information about Dewesoft consult the
Manual. To open the manual press the F1 button or click on the Options button ❶ and then select
Manual from the pop-up menu ❷ .
Help - Manual
3.3.2. Analog channel setup
In the analog channel setup screen you can see all channels of your connected SIRIUS systems. Per
default only the first channel will be set to Used. Unused channels will not show up in measure mode
and can thus not be used for display, calculations or storing: thus, we will also set the other channels to
the used. You can left-click on the Used column of channel 2 ❶ , hold the mouse button and move the
mouse down to channel 6 ❷ : then release the mouse button and all channels will be selected – this is
shown by the black rectangle around the buttons. Then you can click into the selected region to toggle
Used/Unused for all channels at once. The selected channels will also be highlighted in the small
preview image of the device ❸ .
When you press the Setup button of a channel (the column at the right edge of the channel table – not
shown in this screen-shot), you can change all the settings of the channel amplifier. You can also
change the sample rate of SIRIUS ❹ .
SIRIUS
®
V20-1 18 / 336
To Next Page
