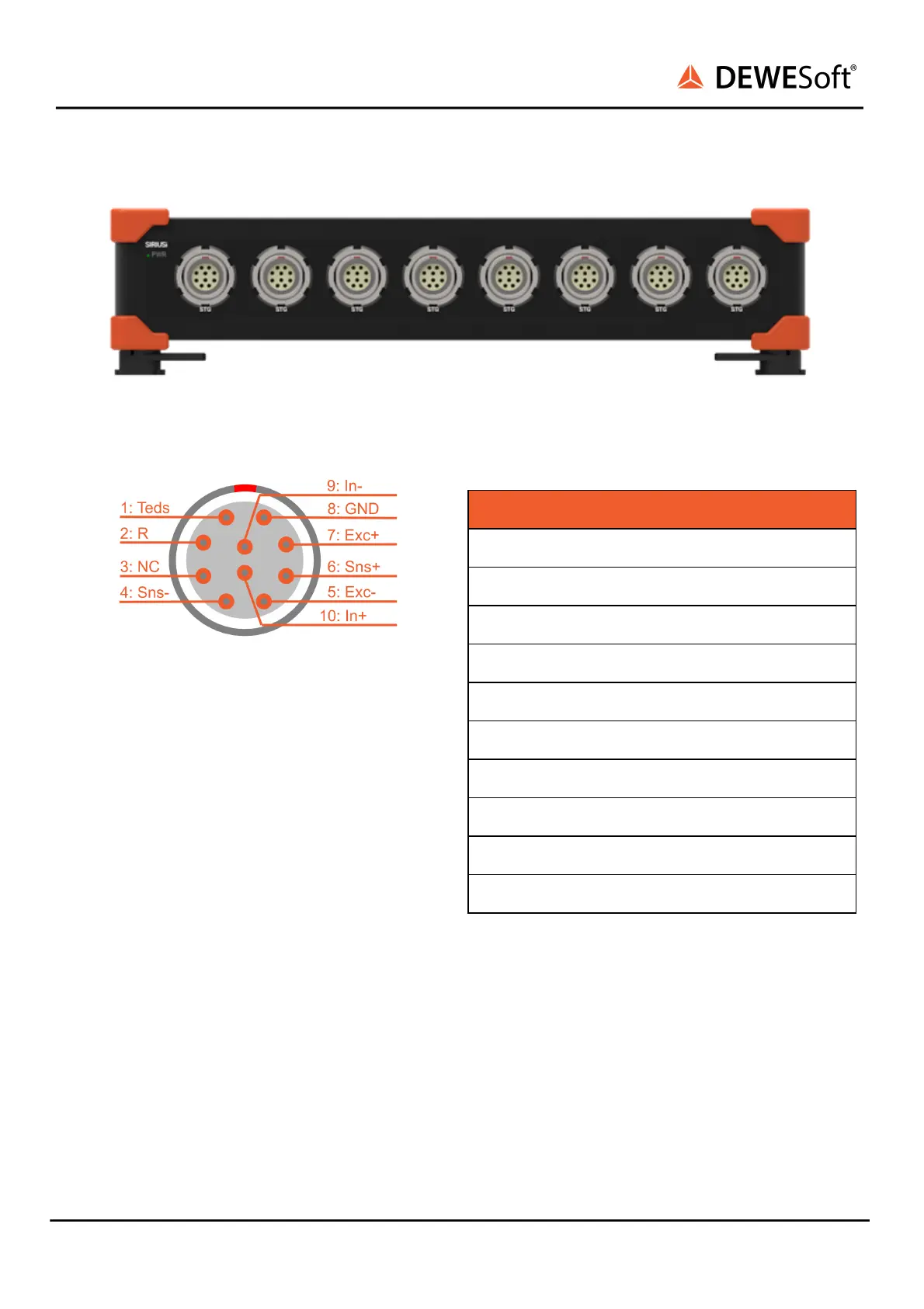

SIRIUS
®
TECHNICAL REFERENCE MANUAL
5.14.5. STG-L2B10fs
SIRIUSi-8xSTG-L2B10fs
STG-L2B10fs connector: pin-out (10-pin LEMO female)
Mating Connector: FGG.2B.310.CLADxx
Pin
Name
Description
1
Teds
TEDS
2
R
Resistance / SHUNT
3
NC
4
Sns-
Sense -
5
Exc-
Excitation -
6
Sns+
Sense +
7
Exc+
Excitation +
8
GND
Ground-iso
9
In-
Input -
10
In+
Input +
SIRIUS
®
V20-1 204 / 336
