4.4.1.5. EtherCAT® slave port
DAQ AND CONTROL: R_rt instrument is an upgrade of the Rack DAQ system. It uses same DAQ
technology, data logging, and data processing capabilities, but includes an additional EtherCAT slave
port that can send the real-time data feed to any 3rd party EtherCAT master controller.
Important
List of supported systems
DUAL MODE: EtherCAT slave interface can be used to provide real-time data to a 3rd party control
system while the Internal bus allows full-speed data recording to Dewesoft X software in parallel, serving
both worlds of data acquisition and control which have been so far separated.

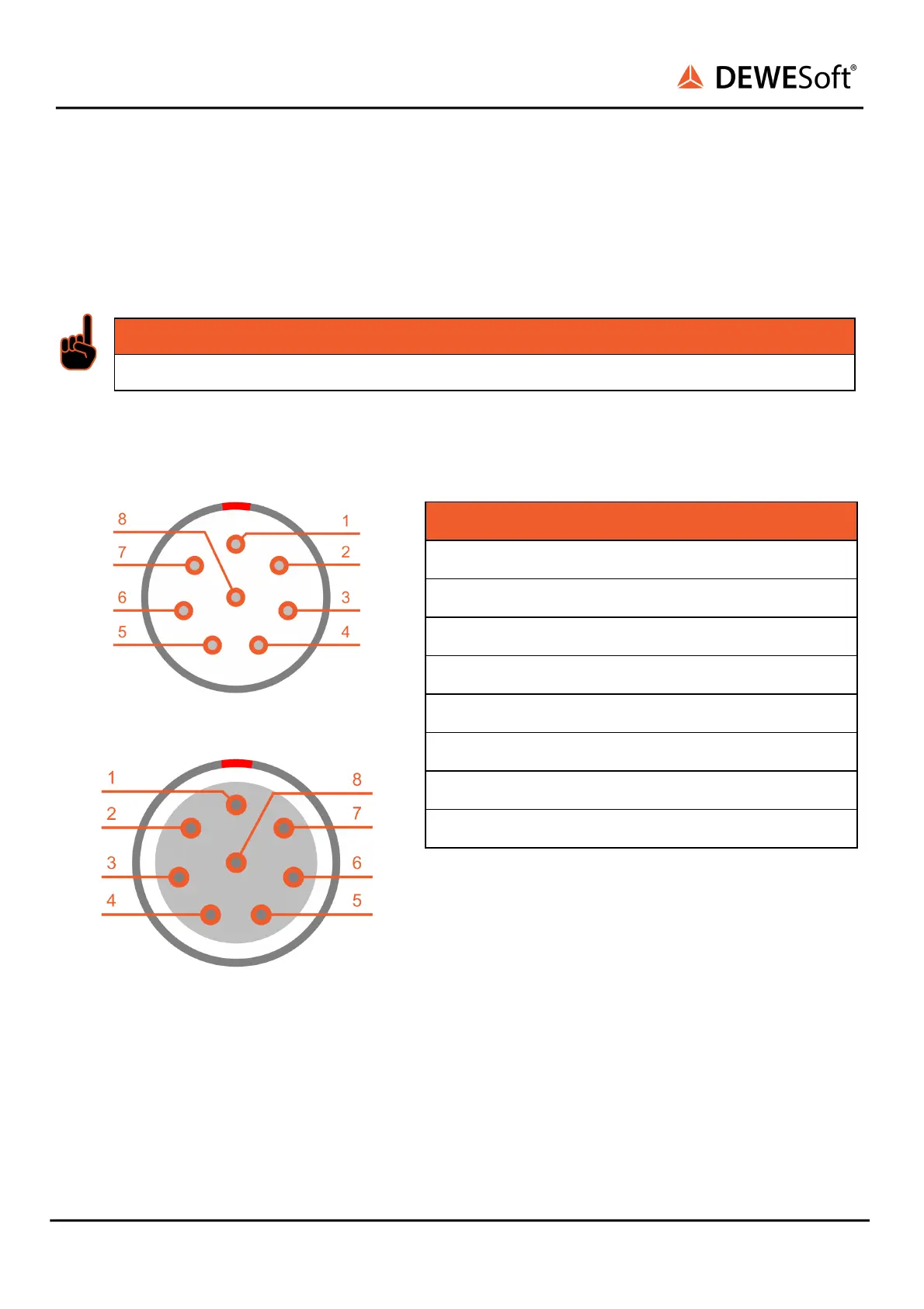

EtherCAT SLAVE IN connector: pin-out (8-pin LEMO
male)
EtherCAT SLAVE OUT connector: pin-out (8-pin LEMO
female)
1) VIN+ and VIN- are not connected to internal
Power or Ground signals. Only pass-through
between IN / OUT connectors is made.
Connectors (on the device):
EGG.1T.308.CLN LEMO 8-pin female
EGJ.1T.308.CLD LEMO 8-pin male
Mating connector (for the cable):
FGG.1T.308.CLA.1433 male
FGJ.1T.308.CLL.1433 female
