4.6.3. SIRIUS-SBOXwe: Rear side 


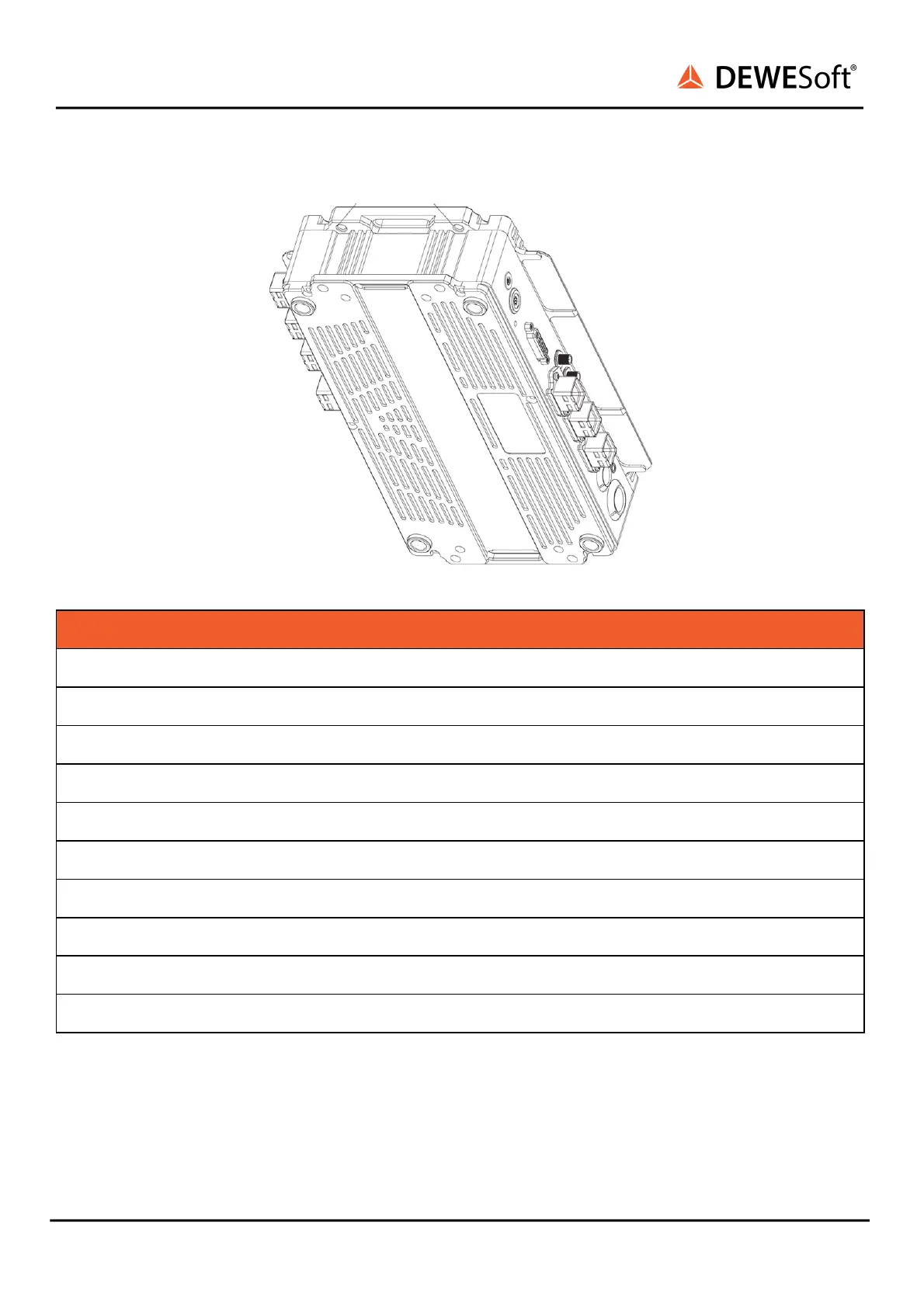

SIRIUS-SBOXwe Rear side 

Name 
Description 
SYNC 
4-pin LEMO female sync connector 
EtherCAT 
8-pin LEMO female connector 
DVI-D 
DVI video out (VGA and HDMI compatible) 
GPS ANT 
SMA Female GPS antenna 
WLAN 
RP-SMA Female WLAN antenna: WiFi 802.11 a/b/g/n/c 
USB 2.0 
2x USB 2.0, Watertight push-pull 
LAN 
1x GLAN Ethernet, RJ45 connector, Watertight push-pull 
POWER OUT 
2-pin LEMO female connector, K-type 
GND 
Protective ground 
POWER 
3-pin LEMO male connector, K-type 

Power IN connector (on the SBOX): HGL.2K.303.CLAPV 
Mating connector (for the cable): FGL.2K.303.CLLC65Z 

Power OUT connector (on the SBOX): HGG.1K.302.CLLSV 
Mating connector (for the cable): FGG.1K.302.CLAC65Z  
