SIRIUS

® 

TECHNICAL REFERENCE MANUAL 



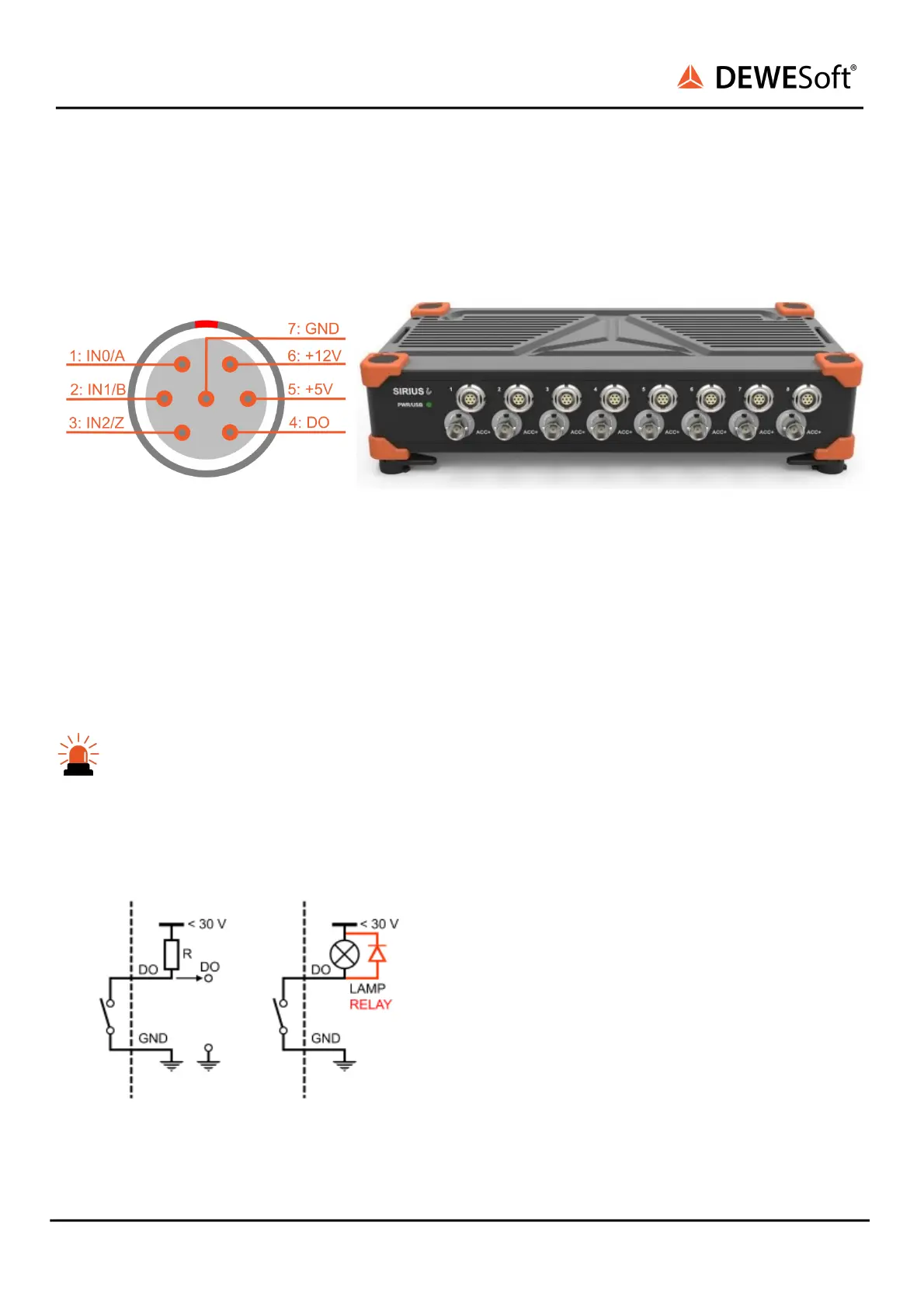

5.18.3. HS-ACC+ (Counter) 

The HS-ACC+ modules are perfect for high speed sound and vibration IEPE channels plus counter               

applications. In addition to the HS-ACC module, it also has a 7-pin Lemo connector for digital counters. 



CNT connector: pin-out (7-pin LEMO 

female) 

SIRIUSi-HS-8xACC+ 



Connector type L1B7f 

Connector on the module: EGG.1B.307.CLL 

Mating cable connector: FGG.1B.307.CLAD52 



Caution 

GND of the counter input is connected via a 50 Ω resistor to In- of the analog channel. 



Digital output conﬁguration 

The “switch” of the open collector output is closed when active. 



 

SIRIUS

V20-1 230 / 336  
