SIRIUS
®
TECHNICAL REFERENCE MANUAL

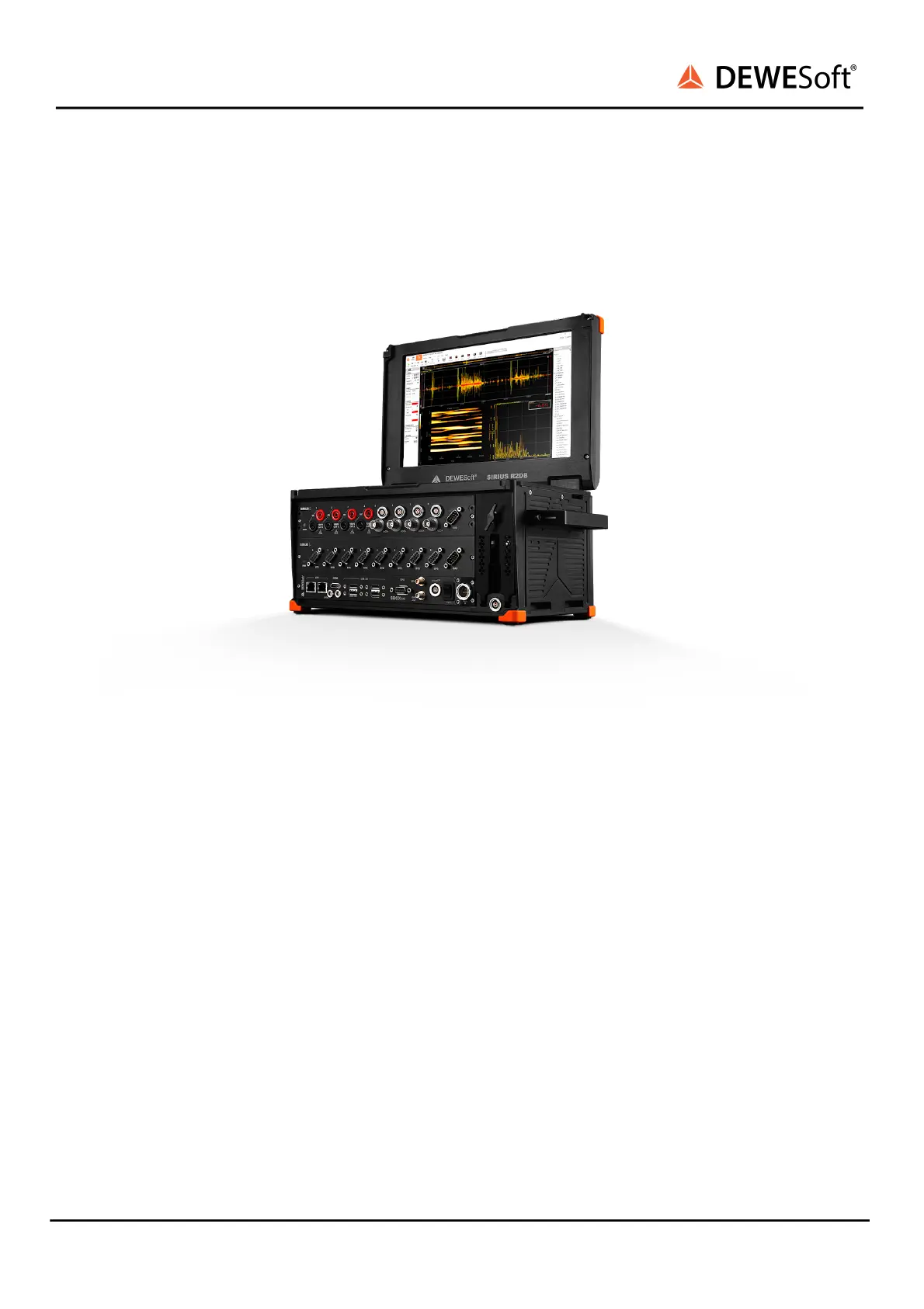

4.8. SIRIUS-R1DB/R2DB Mobile Data Acquisition System
Compact, mobile data acquisition systems with a built-in data logger, powerful data processing
computer, multi-touch display, and internal batteries for maximum portability.
Main Features
● HIGH-END SIGNAL CONDITIONING: R1DB/R2DB data acquisition system is built around SIRIUS
DAQ technology and features the same versatile and powerful amplifiers for world-leading signal
conditioning. See the SIRIUS product page for a detailed SIRIUS DAQ technology overview.
● ALL-IN-ONE INSTRUMENT: R1DB/R2DB instruments are stand-alone DAQ systems with the
built-in touchscreen LED display, powerful data processing computer, SSD data logging
capabilities, and internal Li-Ion batteries (R1DB/R2DB). A version without battery is also available
(R2D).
● UP TO 32 ANALOG INPUTS: Systems can be configured with one (R1DB) or two (R2DB) SIRIUS
DAQ slices for a total of 32 analog inputs capable of connecting virtually any sensor.
● UP TO 16 COUNTER/ENCODER INPUTS: Up to 16 counter/encoder or 48 digital input channels, all
equipped with our patented SUPERCOUNTER® technology.
● UP TO 2 ISOLATED CAN PORTS: Up to 2 high speed CAN 2.0b channels with 1 Mbit/sec data
throughput with additional support for CCP, OBDII, J1939, and CAN output.
● ETHERCAT PORT: DAQ system includes EtherCAT master port with built-in synchronization for
easy connection and extension of any of our EtherCAT based DAQ systems like KRYPTON DAQ
modules.
● ALL INTERFACES: Interfaces for Wireless LAN, dual GLAN, 4x USB 3.0, GPS, HDMI, 2x
synchronization are available.
● 100 Hz GPS WITH RTK: Optional 10Hz or 100Hz GPS receiver with additional RTK support can be
built right into R1DB/R2DB DAQ system.
SIRIUS
®
V20-1 66 / 336
