SIRIUS
®
TECHNICAL REFERENCE MANUAL
4.11. SIRIUS-R8DB
High channel count data acquisition system with built-in data logger and powerful data processing
computer, touch screen display (R8D) and internal batteries (R8B, R8DB) for maximum portability.

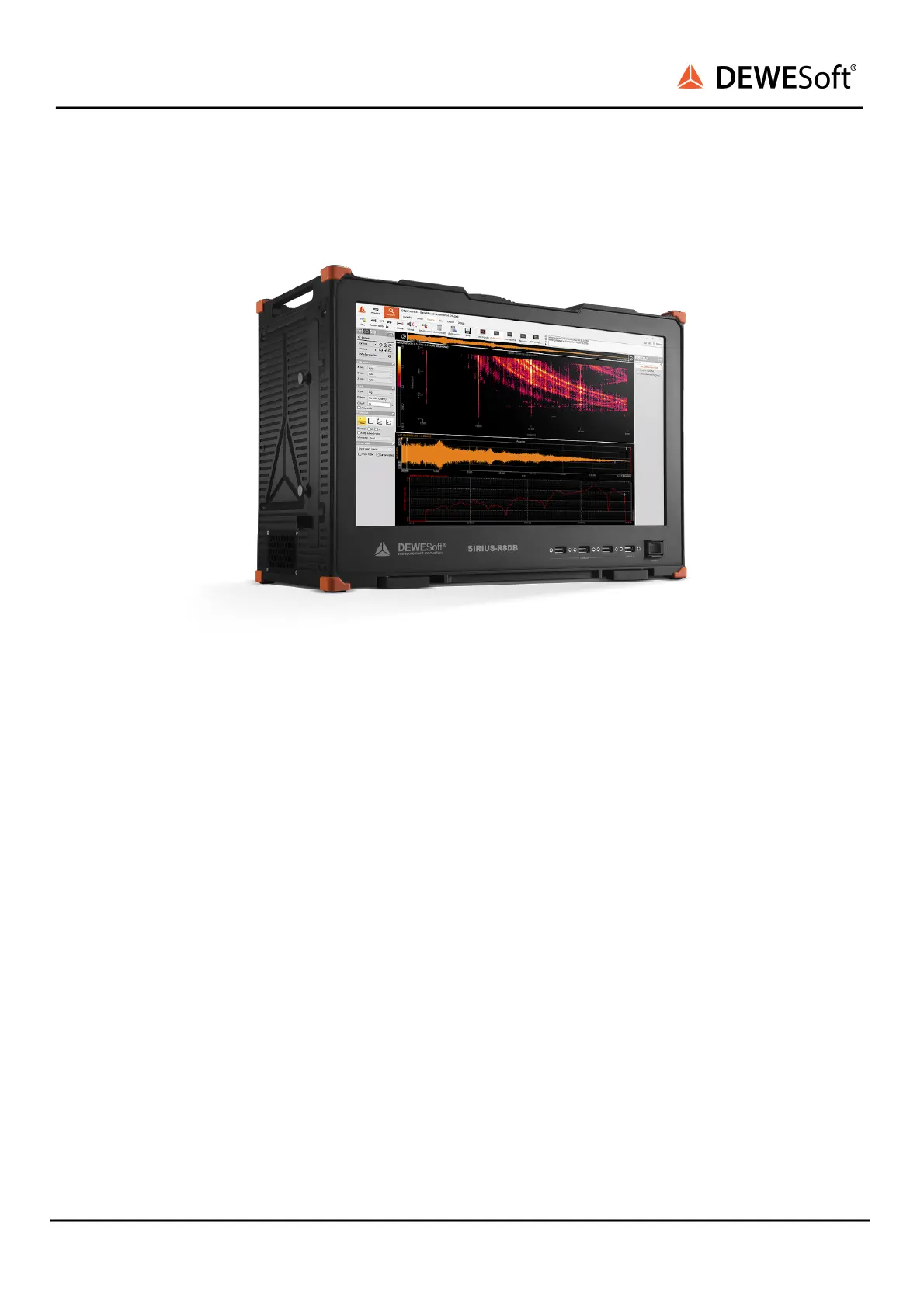

SIRIUS-R8DB
Main Features:
● HIGH-END SIGNAL CONDITIONING: R8 data acquisition systems are built around SIRIUS DAQ
technology and feature the same versatile and powerful amplifiers for world-leading signal
conditioning. Visit SIRIUS product page for detailed SIRIUS DAQ technology overview.
● ALL-IN-ONE INSTRUMENT: R8 instruments are high channel count, standalone DAQ systems
with built-in powerful data processing computer, SSD data logging capabilities, touch-screen
LED display (R8D and R8DB), and internal Li-Ion batteries (R8B/R8DB) for maximum portability.
● UP TO 128 ANALOG INPUTS: Systems can be configured with up to eight SIRIUS DAQ slices for a
total of 128 analog inputs for virtually any sensor.
● UP TO 64 COUNTER/ENCODER INPUTS: R8 DAQ system can be configured with up to 64
counter/encoder or 192 digital input channels, all equipped with our patented SUPERCOUNTER®
technology.
● UP TO 8 ISOLATED CAN PORTS: Configure up to 8 high speed CAN 2.0b channels with 1 Mbit/sec
data throughput with additional support for CCP, OBDII, J1939, and CAN output.
● UP TO 64 ANALOG OUTPUTS: R8/R8B can be configured with up to 64 analog outputs and can
function as a multi-channel function generator, analog replay, or control device with the output
voltage signal of ±10V.
● ETHERCAT MASTER PORT: R8 DAQ systems include an EtherCAT master port with built-in
synchronization for easy connection and extension of any of our EtherCAT based DAQ system like
KRYPTON DAQ modules or SIRIUS DAQ system.
● ALL INTERFACES: Interfaces for Wireless LAN, dual GLAN, 4x USB 3.0, GPS, HDMI, 2x
synchronization are available.
● 100 Hz GPS WITH RTK: Optional 10 Hz or 100 Hz GPS receiver with additional RTK support can be
built straight into R1DB/R2DB DAQ system.
SIRIUS
®
V20-1 84 / 336
