SIRIUS
®
TECHNICAL REFERENCE MANUAL

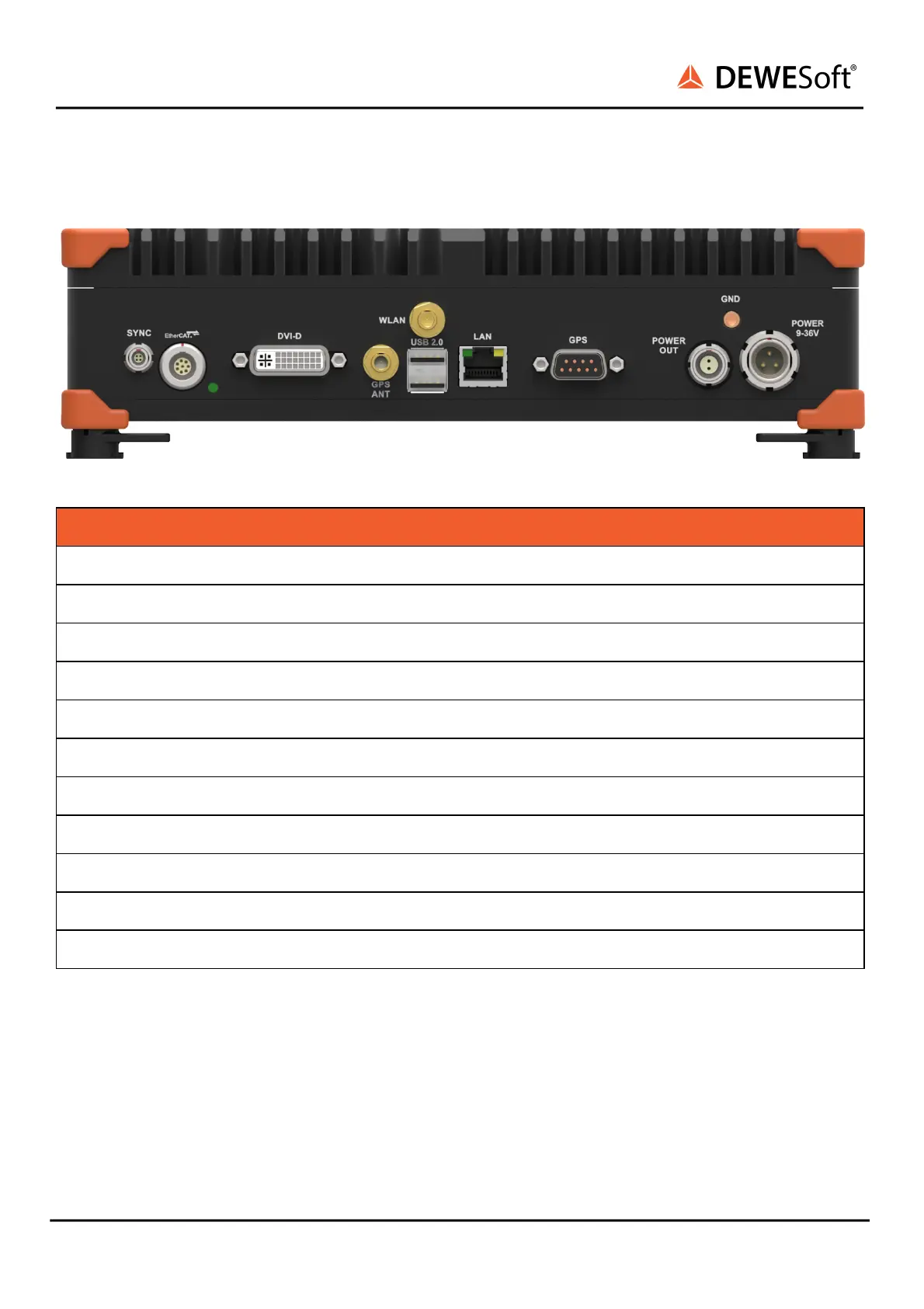

4.5.5. SIRIUS-SBOXfe: Rear side
SIRIUS-SBOXfe Rear side
Name
Description
SYNC
4-pin LEMO female sync connector
EtherCAT
8-pin LEMO female connector
DVI-D
DVI video out (VGA and HDMI compatible)
GPS ANT
SMA Female GPS antenna
WLAN
RP-SMA Female WLAN antenna: WiFi 802.11 b/g/n
USB 2.0
2x USB 2.0
LAN
1x GLAN Ethernet, RJ45 connector
GPS
Connection for external GPS display, PPS, Remote ON
POWER OUT
2-pin LEMO female connector
GND
M4 grounding insert
POWER 9-36V
3-pin LEMO male connector
SIRIUS
®
V20-1 60 / 336
