4.4.2.5. Remote on
If the SBOX system is used, the remote mode can be used to turn the SBOX on or off from the remote
distance.
Important
To power the system on, press the Power switch OR apply a voltage between 3.6 V and 30 V to
the Remote-On pin. To power off the system press the Power switch or reduce the voltage on
Remote-On below 0.5 V for more than one second.
Remote on functionality can be set to various options, see details below.

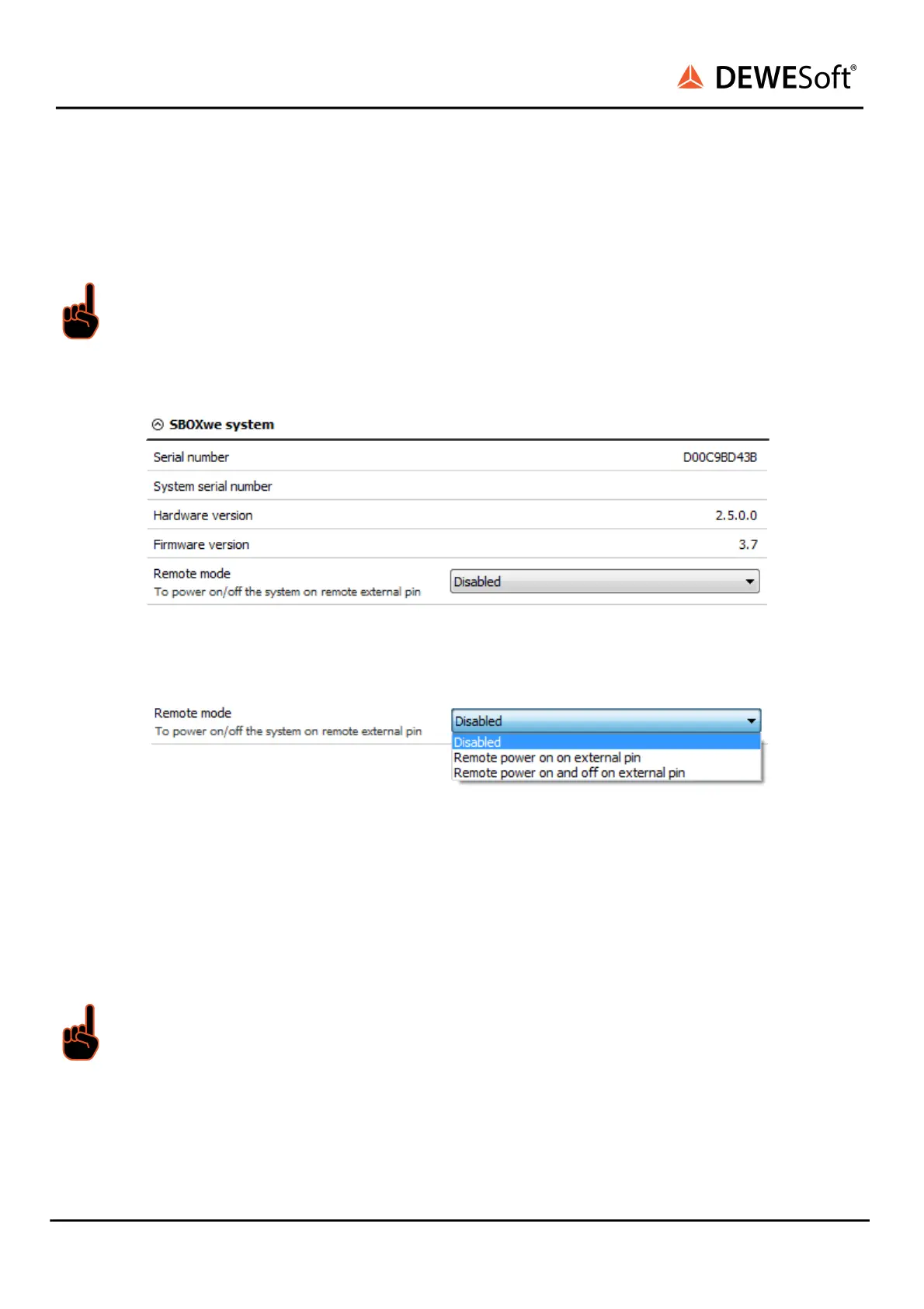

DEWESoft settings, SBOX system
● Disabled - If the remote mode is disabled, SBOX can only be turned on or off by pressing the
power button on the device.
● Remote power ON on external pin - The SBOX can be remotely turned on. When the voltage
signal comes to pin for remote, the SBOX is turned on.
● Remote power ON and OFF on external pin - The SBOX can be remotely turned on or off. If the
SBOX is off and the signal comes, it will be turned on. If the SBOX is on and the signal comes, it
will be turned off.
Important
After the Remote mode option is changed, a total reset of the device is required. The SBOX
needs to be shut down and disconnected from the power supply. If the SBOX is also powered by
batteries (e.g. R1DB, R8B,..) then the batteries need to be removed as well. The setting will
become permanently enabled after a total reset.
