Domino D Series User Manual

OPERATION
L025317 Issue 1 March 2011 3-55
Horizontal Alignment - Centres the object horizontally.
Vertical Alignment - Centres the object vertically.
Mirror x - Mirrors the object horizontally.
Mirror y - Mirrors the object vertically.
Mark - Prevents/allows the marking of the object. Useful for objects that are
only used as a positional aid when creating an object. The Digital Input
option is for special applications only and requires the Conditional and mark
values
Shape
The shape function allows the user to create or edit an Arc or Rectangle. The
shape’s property values can be applied and a parameter set assigned to the
shape for printing.

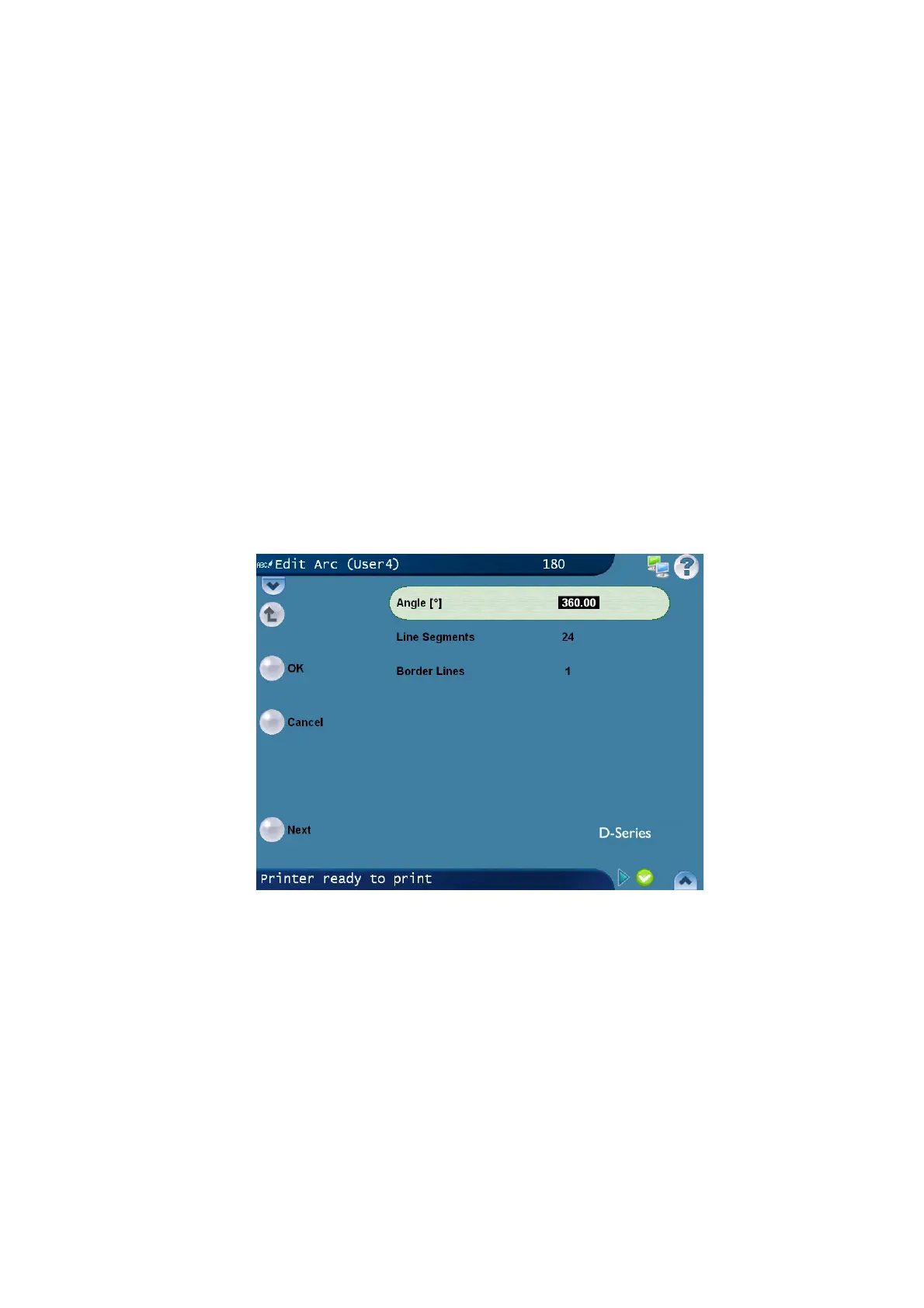

Arc
The property values are the same as the general property values and text
property values. HELP_TAG_EditorArc,1 HELP _TAG_Editor ShapeBorder,1
Angle - Sets the angle in degrees that the circle is to encompass. The default
setting is 360.
Line Segments - Sets the number of line segments used in the circle. A
higher number creates a more perfect circle. The minimum of three creates a
triangle.
Border Lines - Sets the number of concentric circles or arcs used.
Object Name - Gives a unique name to the object.
