D320I AIR FLOW SETTINGS
All curves are recorded with the original D-Series air kit. The maximum hose
length when an air chiller is used is 4 meters form the chiller to the laser
head. In this case the air kit is installed between air chiller and laser head. An
air chiller type SMC (Modell: IDFA8E) has been used as reference.

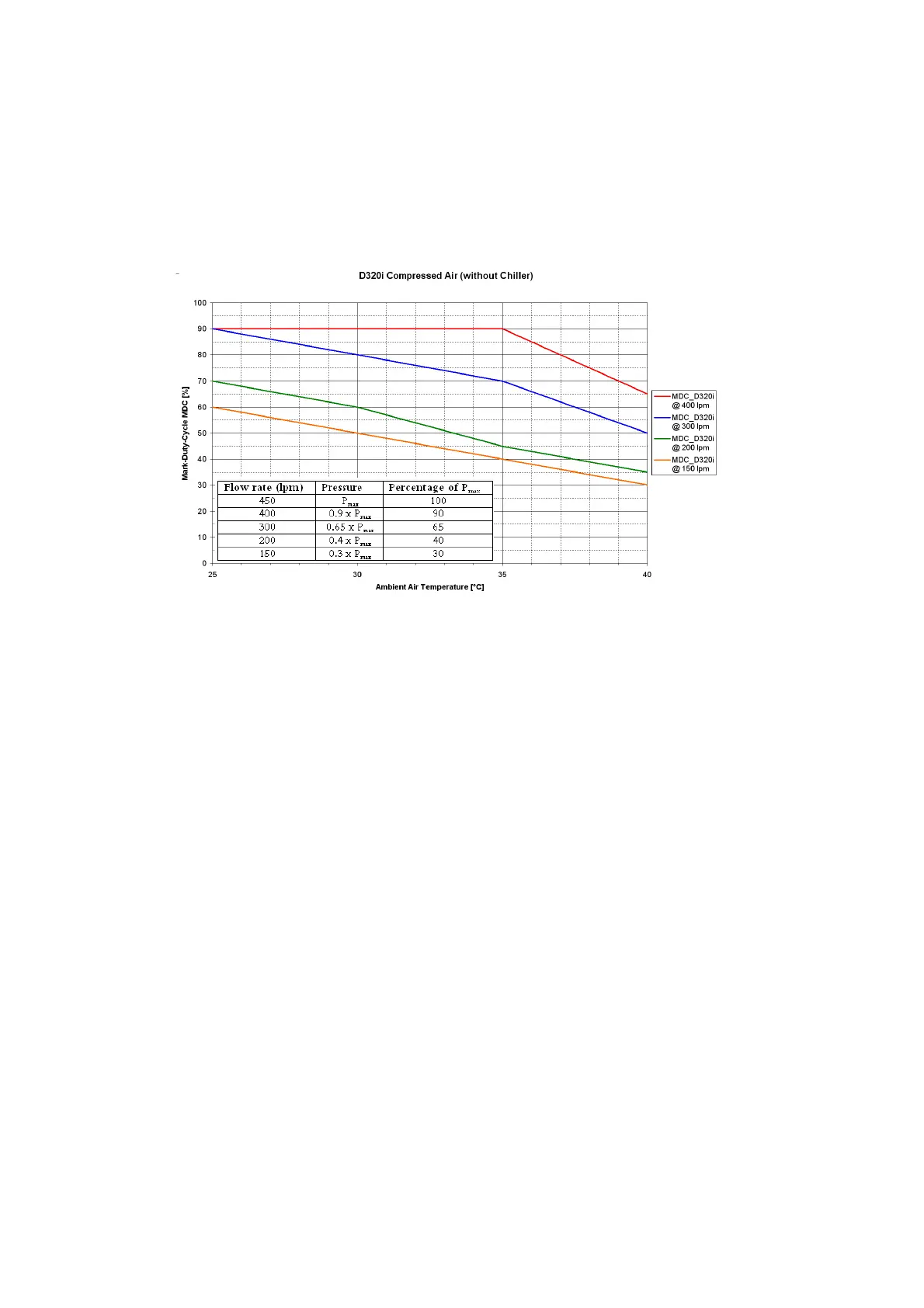

D320i Ambient temperature (in °C) vs. maximum mark duty cycle (in %) depending
on airflow (in LPM)
Without chiller
