OPERATION
L025317 Issue 1 March 2011 3-57

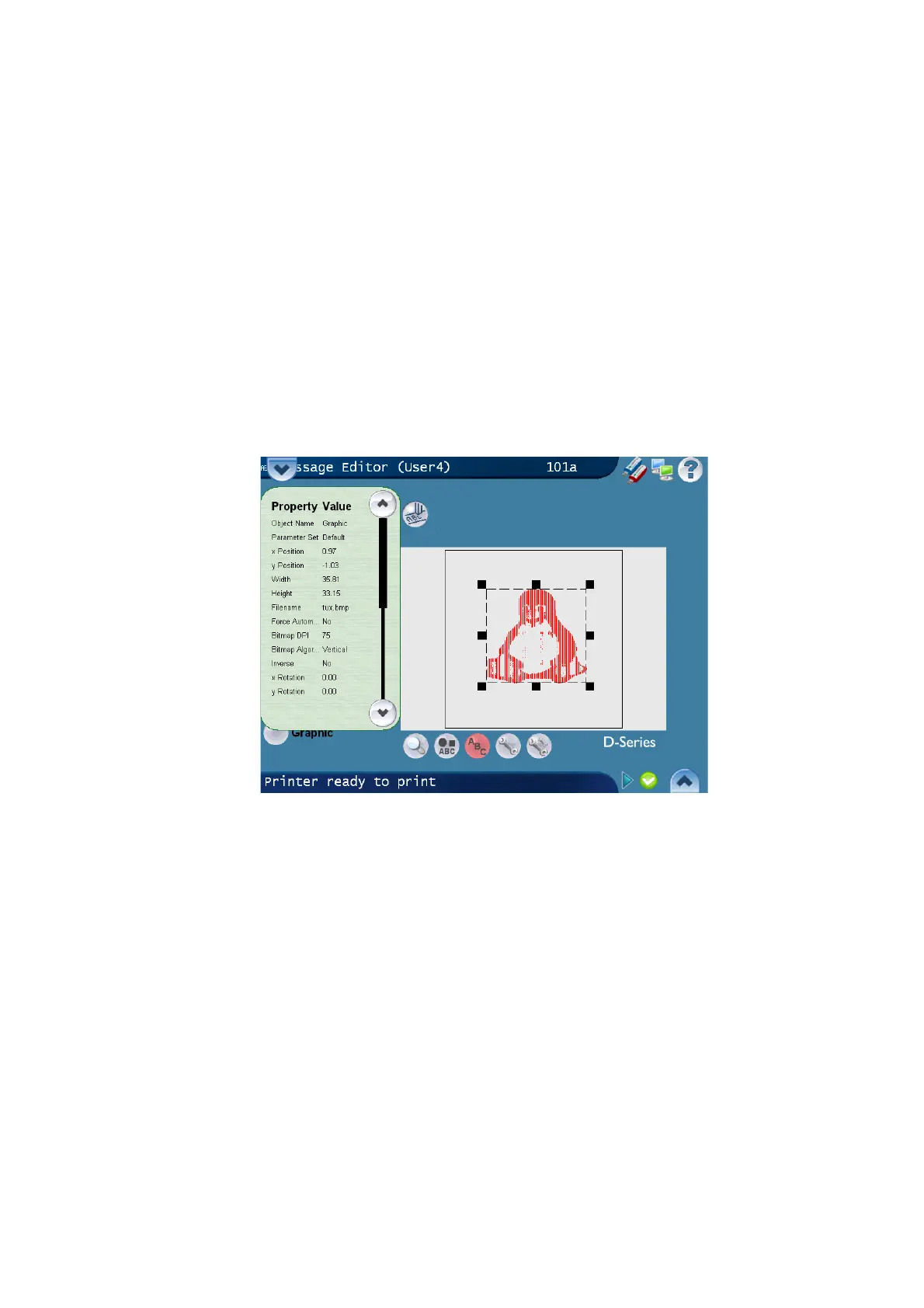

Graphic
The property values are the same as the general property values and text
property values.
Note: Monochromous Bitmap (*.bmp), DXF (*.dxf) (up to Version 12,
information about 3-dimensional objects is discarded, fonts and labels are
not supported) and Hewlett Packard Graphics Language HPGL (*.plt)
black white graphic file formats are supported.
Note: Supported commands for HPGL import are: Arc Absolute, Arc Realtive,
Plot Absolute, Plot Relative, Pen Up, Pen Down
Upload - Upload a Graphic File from USB or select one from the Flash
Drives. HELP_TAG_EditorGraphicInsert,1 HELP_TAG_EditorGraphicAskChange,1 HELP_TAG_EditorGraphicEdit,1 HELP_TAG_EditorGraphicProperty,1 HELP_TAG_EditorGraphicSwitch,1 HELP_TAG_EditorGraphicBMP,1 HELP_TAG_EditorGraphicDXF,1
Select the file and click Next and OK to upload file to Editor.
Bitmap (dpi) - Sets the resolution in dots per inch (dpi) of the lines that
make up the graphic file.
Bitmap Algorithm - Specifies how the graphic is marked. Options include
horizontal, vertical and outline.
Inverse - Generates the inverse of the graphic. Necessary if the marking on
the substrate is to be highlighted. Has no effect in Outline mode.
Note: Refer to the General Property and Object property values to set the values
for the Graphic object.
Parameter Sets
Assigns a set of parameters to an object. The parameter set assigned is specific
to the object and not Global. The parameter values can be modified and a
duplicate can be made of the parameter set. HELP_TAG_Edi torDeleteObjec t,1
