16Installation and Service Guide: Color Controller E-46A
Installing Hardware
Installing Hardware
About the installation process
It is strongly recommended that you review this chapter before you install the E-46A. Also keep in mind that
installation problems are easier to avoid and diagnose if you proceed from the component level to the system level,
verifying functionality at each step.
Since the E-46A is connected to the customer’s network, be sure to coordinate your installation schedule with the
administrator at the customer site. For information about network setup, refer the site administrator to
Configuration and Setup, which is part of the user documentation set.
To install the E-46A
1 Check installation requirements and verify site conditions (see page 17).
If possible, obtain verification that the network is operational.
2 Unpack the E-46A (see page 18).
3 If applicable, install the Fiery NX Station (for information about Fiery NX Station, see page 9).
For information about installing the Fiery NX Station, see the documentation provided with the Fiery NX Station
kit.
4 Connect the E-46A to power, printer, network, and other optional devices (see page 19).
5 Locate the EFI/Fiery decal in the shipping container and affix it to the printer on the area specified in Figure 3.

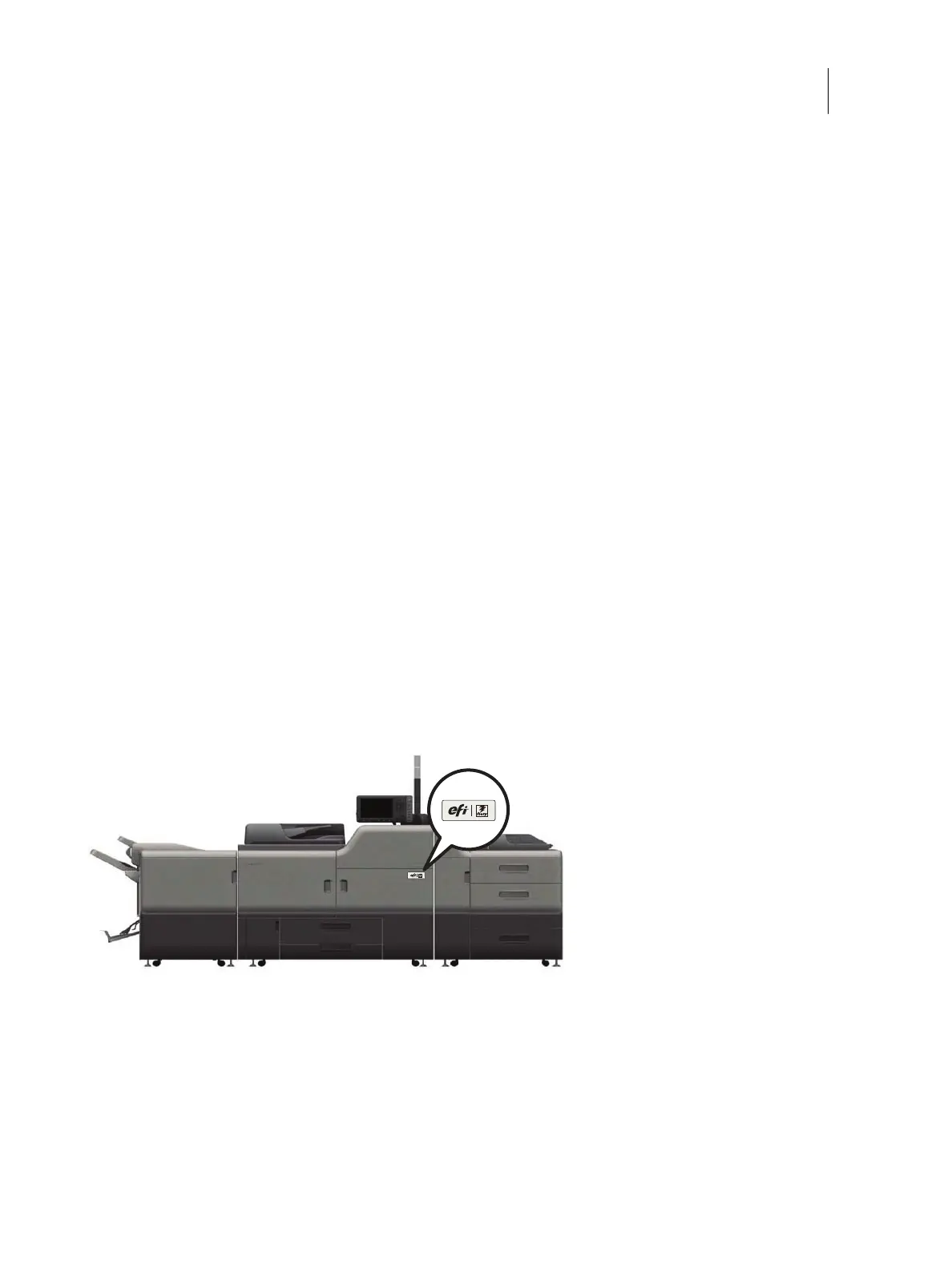

Figure 3: Affixing the EFI/Fiery decal to the printer
6 Complete the installation (see page 26).
Remind site administrator to install current user software on client computers that print to the E-46A (see Printing
and Utilities, which are part of the user documentation set).
