49Installation and Service Guide Color Controller E-46A

Replacing parts

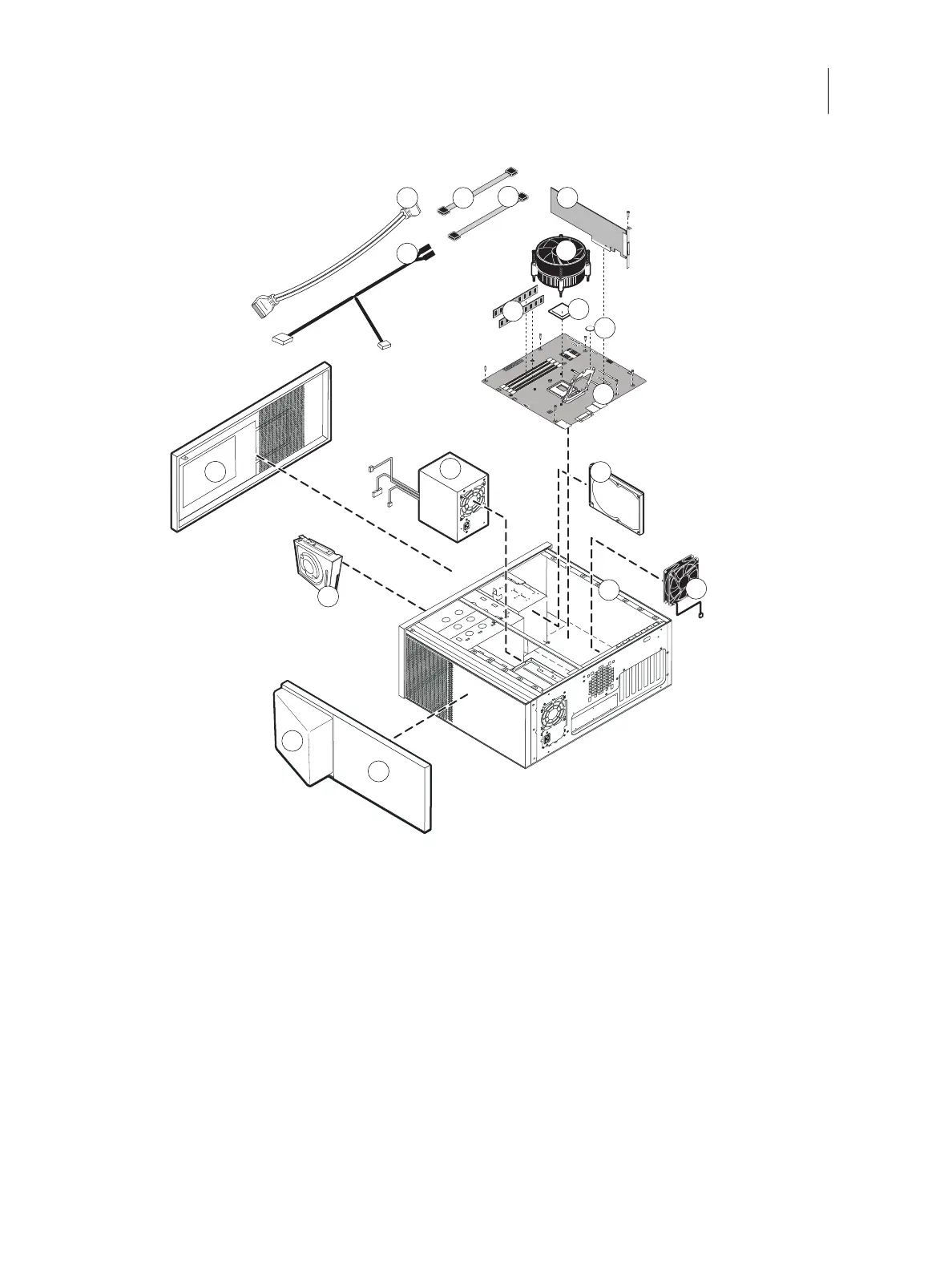

Figure 26: Exploded view of E-46A

1 Fiery QuickTouch USB3.0 cable 7 DIMM (x2) 13 Hard disk drive

2 Hard disk drive data cables 8 CPU 14 DVD drive

3 DVD drive data cable 9 Battery 15 Chassis

4 Printer interface board 10 Motherboard 16 Rear fan

5 Fiery QuickTouch power SW/LED

cable

11 Front panel 17 Fiery QuickTouch display

6 CPU cooling assembly 12 Power supply 18 Top panel

Note: CPU fan cable, tie-wraps, cable clamps, dongle(s), and external cables are not shown.
