ISDN trunk statistics are not displayed on this page at first, but the page is automatically refreshed every 10 minutes. Statistics collected from that time, as
well as the last resetting of the counter, will be displayed there. System Uptime, Current System Time and Last Time Cleared (last time ISDN statistics
has been cleared) are displayed at the bottom of the page.
To reset the statistics counters press the Clear button.
PSTN Lines Sharing
The PSTN Lines Sharing page allows QX to use the PSTN lines (FXO lines, E1/T1 and/or ISDN trunks) on other QXs. This provides the option to call not
only through local PSTN lines but also through available shared FXO, E1/T1 or ISDN lines in the network of QXs. When the sharing mode is enabled and
one QX is configured to use the shared PSTN lines of another QX, the corresponding routing patterns will automatically be created in the Call Routing
Tables (see
Call Routing Table) on both QXs. This will allow PSTN call routing between the two QXs.
The Provide PSTN lines for master device checkbox is used to
enable QX to use the shared PSTN lines on a remote device. This
selection requires you to configure the Authorization Parameters.
• User Name and Password text fields are used to enter the
identification parameters for the authentication on the
remote QX IP PBX. In its turn, these authentication settings
should be added in the Interfaces - PSTN Gateways -
Authorization Parameters page on the master QX IP PBX.
• Master device IP text field requires the IP address of the
master QX IP PBX current PSTN lines will be shared for.
• Master device port text field requires the port number of
the master QX IP PBX current PSTN lines will be shared for.
• Registration State and Registration Date/Time fields
indicate a read-only information about the last successful
registration on the master QX IP PBX (i.e. when
authentication was successful), its state and the registration
date/time.

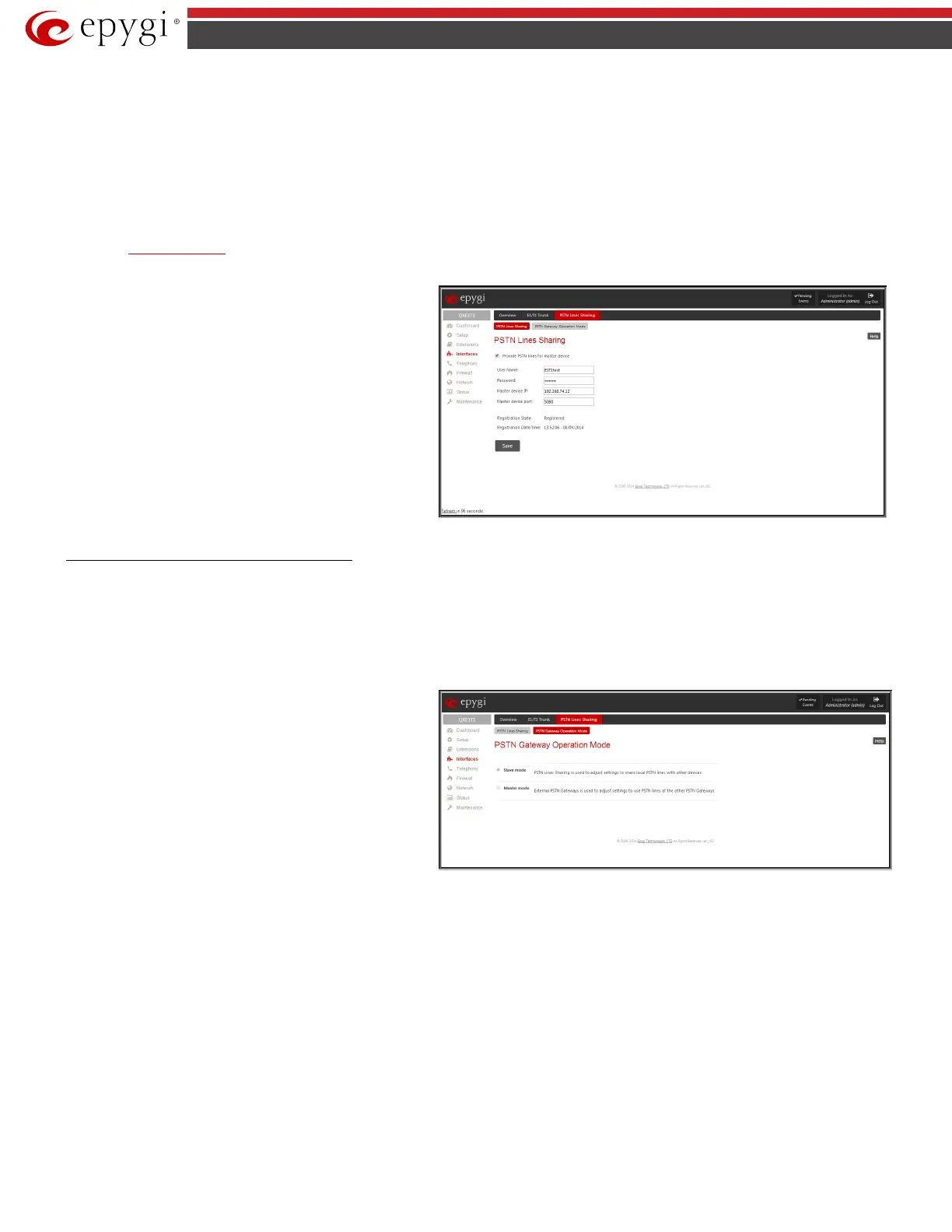

Fig.II- 60: PSTN Lines Sharing page
To use the shared remote PSTN lines on QX IP PBX
1. Enable the Use PSTN lines of the other device checkbox from the Interfaces - PSTN Gateways page.
2. Press Save to apply the selection.
3. Enter the Authorization Parameters page.
4. Create an account using a unique Username and a Password.
PSTN Gateway Operation Mode
This page is used to select the PSTN Gateway operational mode.
One of the two modes can be selected:
Slave Mode - is used to adjust settings to share local PSTN lines
with other devices.
Master Mode - is used to adjust settings to use PSTN lines of the
other PSTN Gateways.
Fig.II- 61: PSTN Gateway Operation Mode page
