Epygi QX series Administrator's Guide

QX5
QXFXO4/QXISDN4/QXE1T1/QXFXS24; (SW Version 6.0.x) 81
QXFXO4/QXISDN4/QXE1T1/QXFXS24 Manual II: Administrator’s Guide
Port Translation
text field is available for “Allowed” action only
and optionally requires the port number that will stand instead of
the original port number when incoming packet is being
forwarded. If this field is left empty, the original port number will
be used when forwarding the packet.
Restriction radio buttons:
• Selecting Any blocks or allows all host IP addresses. This
selection is not present for the Management Access,
Blocked and Allowed IP List rules.
• Selecting Single IP will require the IP address of the allowed
or blocked host.
• Selecting IP/Mask will require the subnet to be allowed or
blocked, specified by an IP address and the Maskbits. The
following are Maskbit examples:
255.0.0.0= /8,
255.255.0.0 = /16,
255.255.255.0 = /24,
255.255.255.255= /32
• Single URL requires the hostname of the allowed or blocked
host.
• Group indicates the user-defined groups that include IP
addresses that should to be allowed or blocked.
The Description field is used to insert an optional description of
the filtering rule.

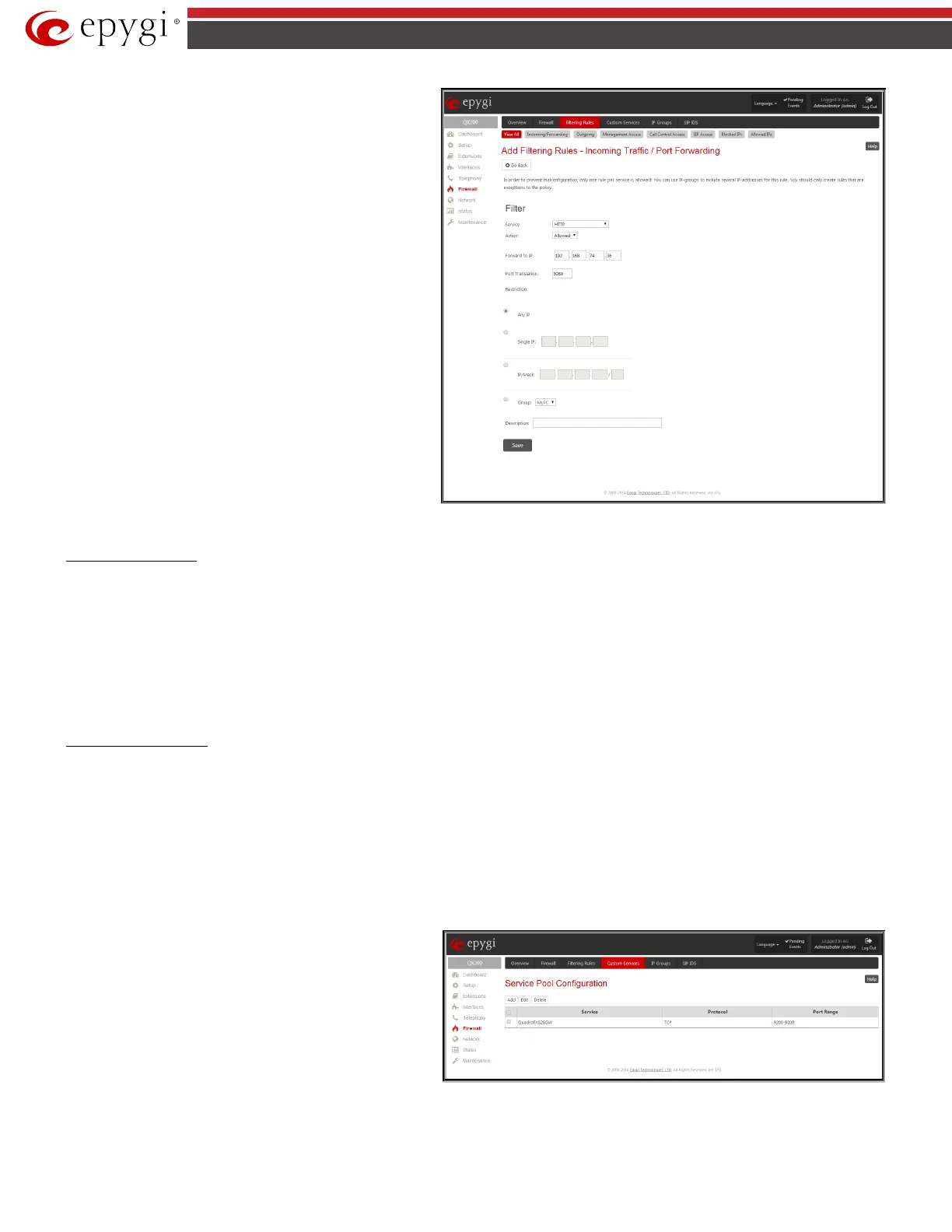

Fig.II- 112: Filtering Rules - Page to add a rule for Incoming Traffic
To Add a Filtering Rule
1. Select the Filtering Rule (Incoming Traffic/Port Forwarding, Outgoing Traffic, Management Access, SIP Access, Blocked IP List or Allowed IP
List) to add a rule for it. The corresponding Filter table will appear in the same window.
2. Click Add on the corresponding filtering rules page.
3. Select a service name from the Service list to configure a rule for it. If the list has a default value, do not change the default values.
4. Select an action from the Action list that is used in the rule. If the list has a default value, do not change the default values.
5. Enter the IP address in the Forward to IP field if an Incoming Traffic Rule is to be added.
6. Choose the restriction type by selecting Any, Single IP, IP/Mask or Single URL and enter the required information in the text fields or select a
group.
7. Insert a Description, if needed.
8. To add a rule with these parameters, press Save.
To Delete Filtering Rules
1. Select the corresponding Filtering Rule (Incoming Traffic/Port Forwarding, Outgoing Traffic, Management Access, SIP Access, Blocked IP List
or Allowed IP List).
2. Check one or more checkboxes of the corresponding rules that should be deleted from the rules table.
3. Press the Delete button on the Filtering Rules page.
4. Confirm the deletion by clicking on Yes, or cancel by clicking on No.
Custom Services
Service Pool Configuration
The
Service Pool
table is a list of all created services and their
parameters. It is used to add new services with the appropriate
settings (protocol type and port range). New services can be used
to add a restriction or permission by defining a new filtering rule
with the following:
Add opens the Add New Service page where new services may be
added.
Edit opens the Edit Service page where the service parameters
(except for the service name) can be modified. This page includes
the same components as the Add New Service page. To operate
with
Edit
only one record may be selected, otherwise the error
message “One row must be selected” will appear.
Fig.II- 113: Service Pool Configuration page
