QXFXO4/QXISDN4/QXE1T1/QXFXS24 Manual II: Administrator’s Guide
The Tunnels to Master Devices page consists of a table where master devices are listed with the corresponding authentication parameters.
Add functional button leads to the Add Entry page where a new master device parameters needs to be provided.
The
Add Entry
page consists of the following components:
The Enable Registration checkbox selection is used to enable the
registration to the corresponding master device.
The Tunnel Name text field requires the SIP tunnel name for the
corresponding connection. System suggests you to start the SIP
tunnel name with the “SIP_Tunnel_” words, according to the
automatic prefix used for the SIP tunnels on the QX, however this
is not mandatory.
The User Name text field requires the authentication user name.
The field in front of this text field displays the default non-editable
prefix for SIP tunnels: “SIPTunnel_”.
The Password text field requires the authentication password.
Please Note: The User Name and Password should match both
on master and slave QXs for the successful SIP tunnel
establishment.

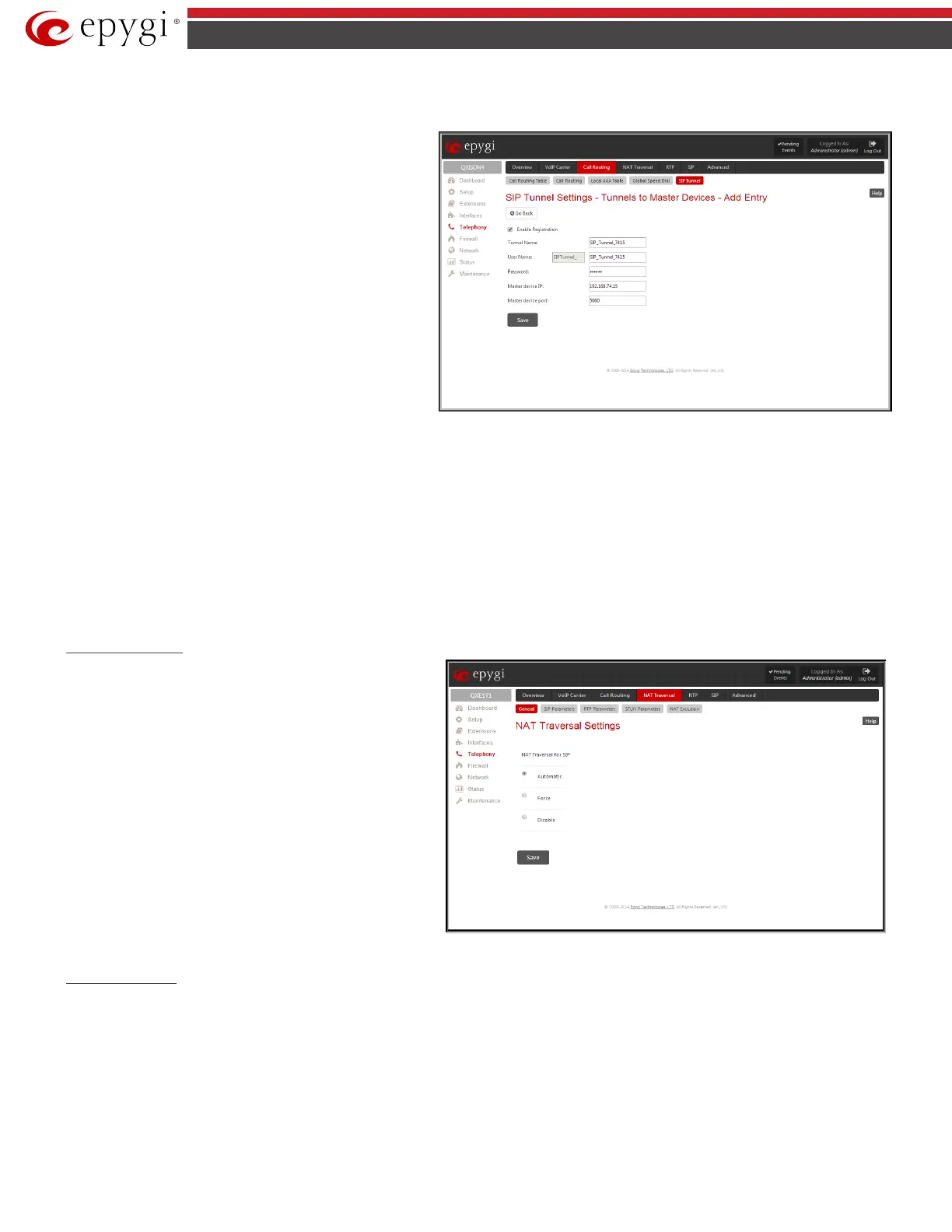

Fig.II- 81: SIP Tunnel Settings – Tunnels to Master Devices – Add Entry page
The Master device IP text field requires the IP address of the master device.
The Master device port text field requires the SIP port number of the master device.
The Registration State field displays information whether the slave device is registered on the master or not.
The Registration Date/Time field displays the time and the date of last registration on the master’s device.
NAT Traversal Settings
The NAT Traversal Settings page is divided into separate pages used to configure General NAT Settings, SIP, RTP and STUN parameters for NAT and a
page where the NAT Exclusion table may be filled.
General Settings
The
General Settings
page consists of a manipulation radio
buttons group to select the mode of the NAT Traversal usage for
the SIP traffic (any incoming and outgoing SIP messages from and
to the QX will be routed through the NAT router).
• Automatic – with this selection, system will analyze the QX’s
WAN IP address and if it is in the IP range specified for local
networks (according to RFC), the SIP traffic will be routed
through NAT. Otherwise, if QX’s WAN IP address is outside
the specified IP range, no SIP traffic will be routed through
NAT router.
• Force – with this selection, all the SIP traffic will be routed
through the NAT router.
• Disable – with this selection, no SIP traffic will be routed
through the NAT router.
Fig.II- 82: General NAT traversal Settings page
SIP Parameters
The SIP Parameters page is used to configure NAT specific settings for SIP and offers two independent groups of settings:
