10.2 Basic informations
PWR
BTN
USB1/2
LAN2
LAN1
Channel B, Slot 1 (DIMM-1B)
Channel B, Slot 2 (DIMM-2B)
Channel A, Slot 1 (DIMM-1A)
Channel A, Slot 2 (DIMM-2A)
SERIAL
PWR4
PWR2
PWR1
SATA ODD
USB8
Fan2 (SYS)
Fan1 (SYS)
HDD
LED

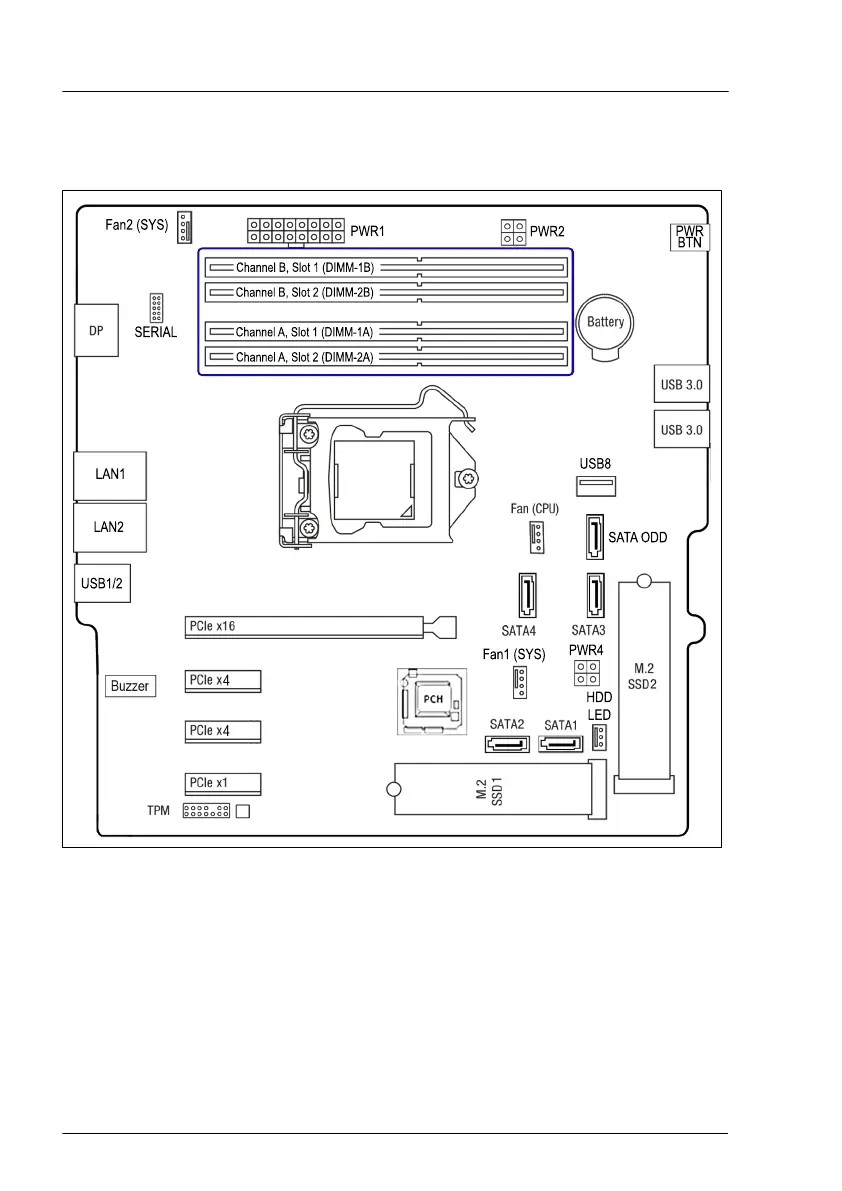

Figure 73: Slots of the main memory
The system board is equipped with four memory slots.
The system has to be equipped with at least one memory module.
Memory sequence
–
There should be at least one DDR4 DIMM.
–
Populate DIMM-1A (channel A, slot 1) first.
Main memory
126 Upgrade and Maintenance Manual TX1310 M5
