Inserting Easyrails in the upper HDD bay
Store unused Easyrails inside their drive bays to have them at hand if
needed.

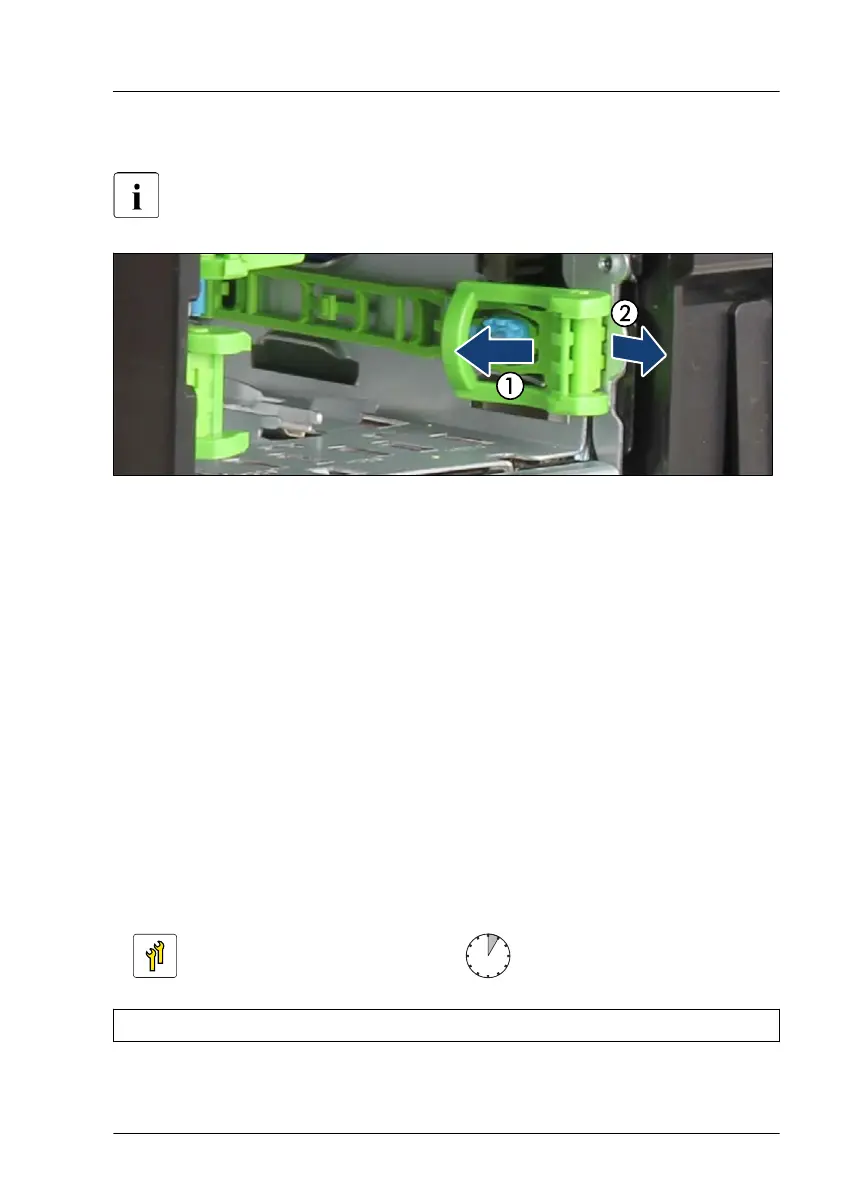

Figure 51: Inserting the Easyrails into their HDD bay
▶
Push the Easyrails completely into the bay (1).
▶
Pull out on the green handles on the Easyrails to lock them in place (2).
Concluding steps
▶
"Reassembling" on page
50
▶
"Connecting the power cord" on page
56
▶
"Switching on the server" on page 57
▶
"Installing the bay cover" on page 58
▶
"Locking the server" on page 59
7.4.3 Replacing a 3.5-inch HDD module
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
Hard disk drives (HDD)
TX1310 M5 Upgrade and Maintenance Manual 95
