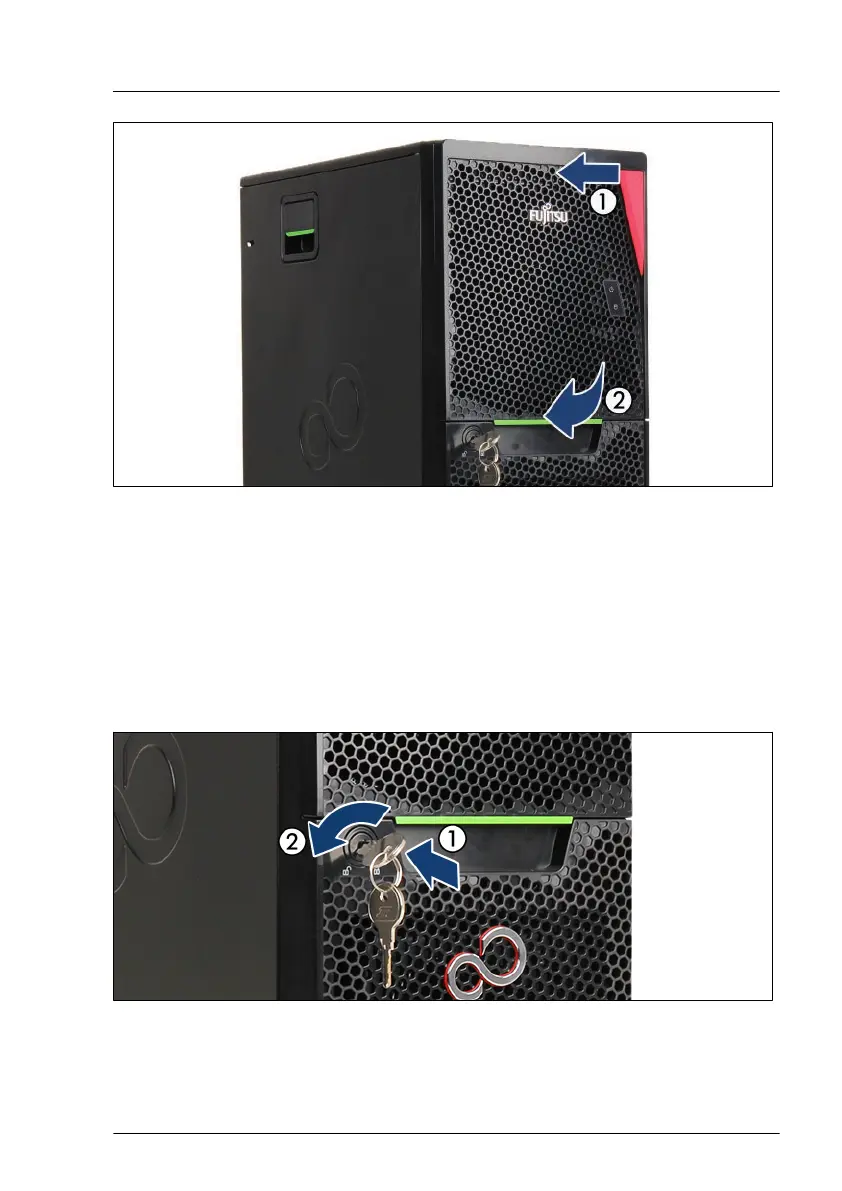

Figure 28: Installing the bay cover
▶
Hook the four tabs on the upper side of the bay cover into the notches in the
front bezel (1, see also circles in
Figure 27
).
▶
Fold down the bay cover until it locks in place (2).
4.1
1
Locking the server
Figure 29: Locking the server
Basic hardware procedures
TX1310 M5
Upgrade and Maintenance Manual
59
58
60
