14TX1310 M5
DATA CP2100 w/o BMC

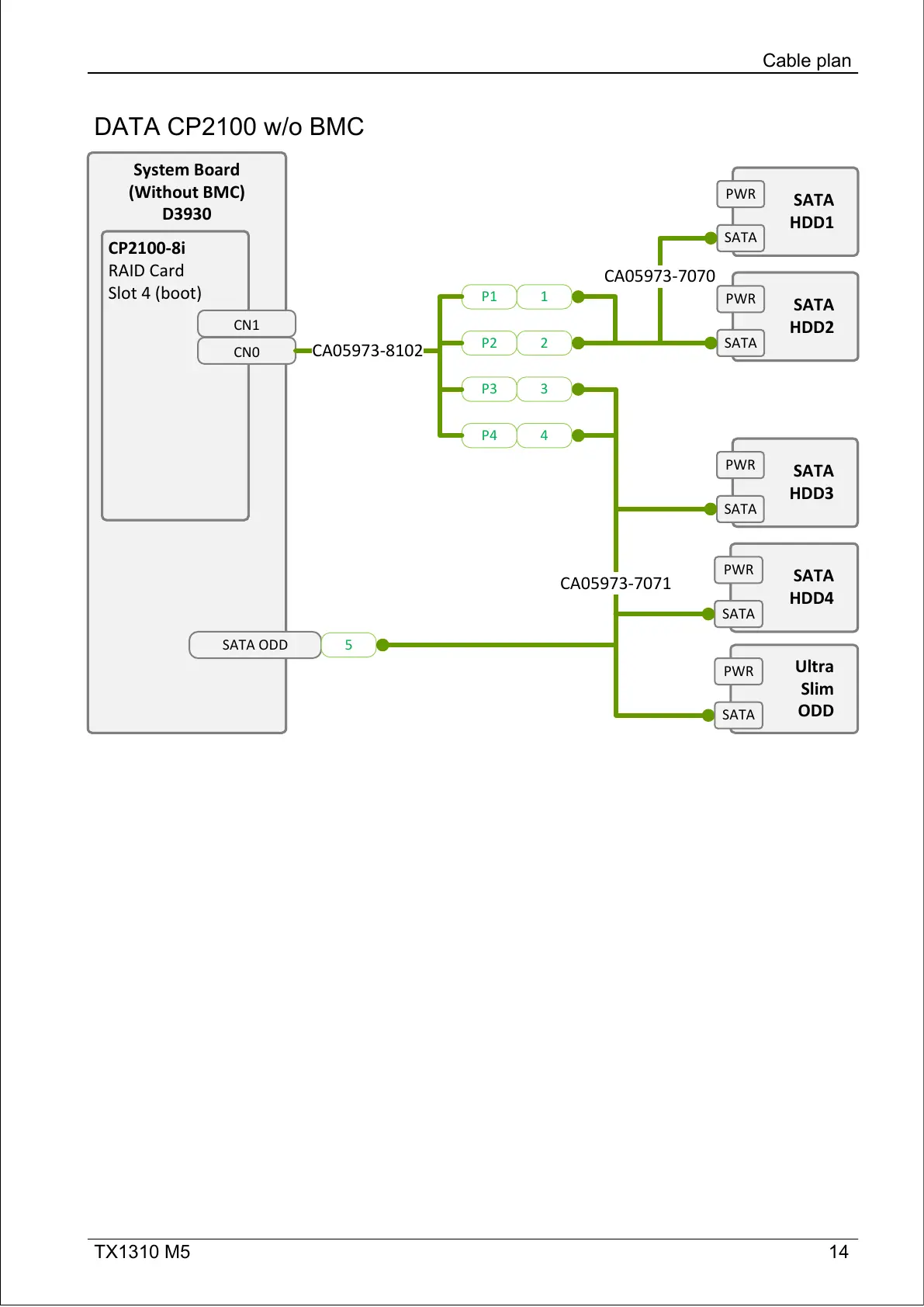

Cable plan
System Board
(Without BMC)
D3930
System Board
(Without BMC)
D3930
CP2100-8i
RAID Card
Slot 4 (boot)
CP2100-8i
RAID Card
Slot 4 (boot)
CN0
SATA
HDD1
PWR
SATA
SATA
HDD1
PWR
SATA
SATA
HDD2
PWR
SATA
SATA
HDD2
PWR
SATA
SATA
HDD3
PWR
SATA
SATA
HDD3
PWR
SATA
SATA
HDD4
PWR
SATA
SATA
HDD4
PWR
SATA
CA05973-7070
2
1
3
4
P2
P1
P3
P4
CA05973-8102
CA05973-7071
CN1
Ultra
Slim
ODD
PWR
SATA
SATA ODD 5
