17.2.3.2 Indicators on the I/O panel

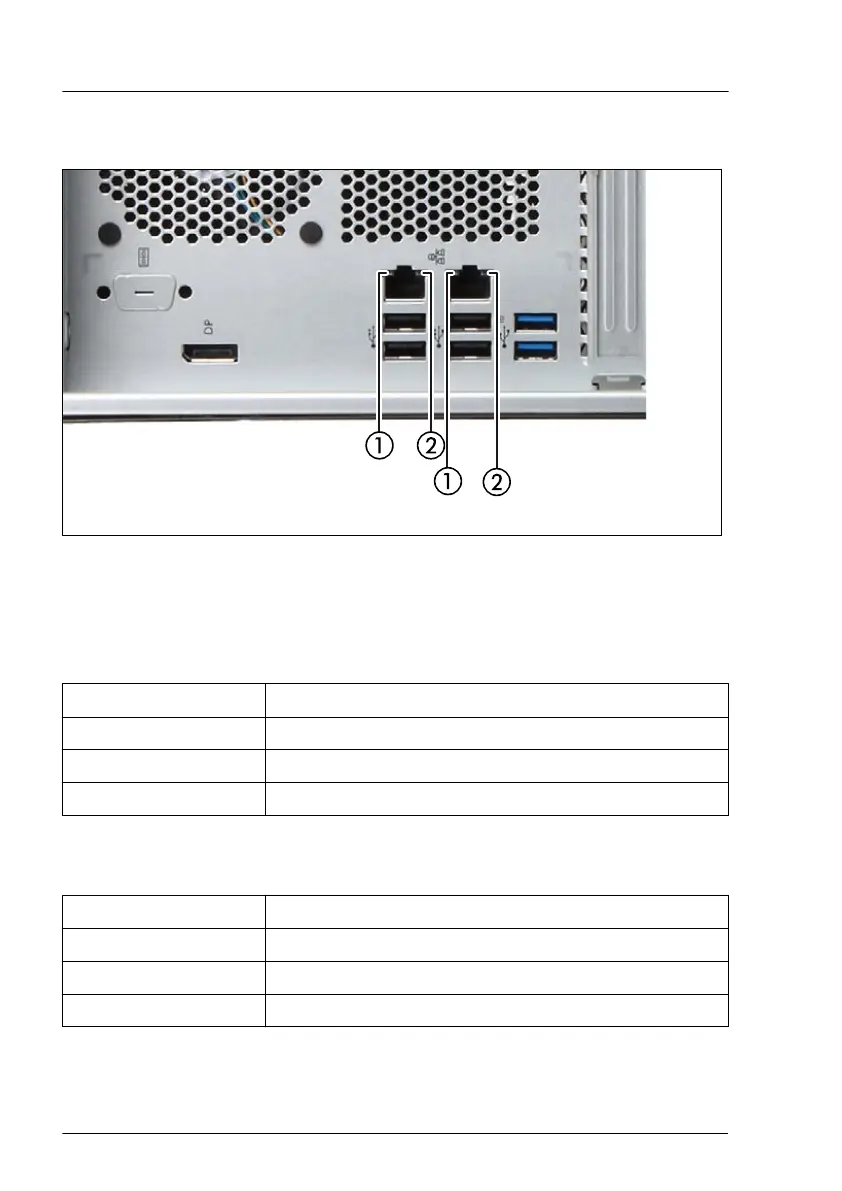

Figure 160: Indicators on the I/O panel
1 LAN link/ transfer indicator 2 LAN speed indicator
LAN link/ transfer indicator (1)
Status Description
green on A LAN connection has been established.
green flashing LAN data transfer is in progress.
off LAN is not connected.
LAN speed indicator (2)
Status Description
yellow on Data traffic at a transfer rate of 1 Gbit/s.
green on Data traffic at a transfer rate of 100 Mbit/s.
off Data traffic at a transfer rate of 10 Mbit/s.
Appendix A
234 Upgrade and Maintenance Manual TX1310 M5
