17.1.3 Server interior

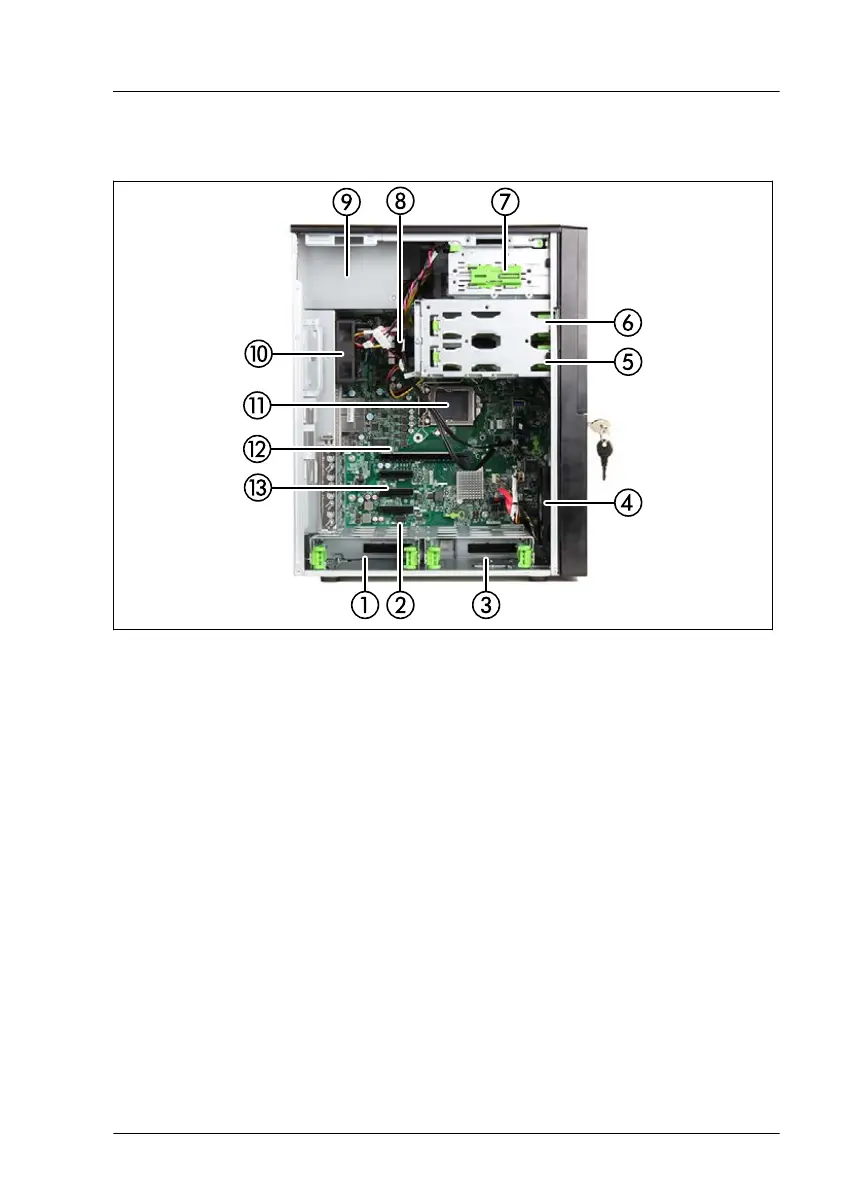

Figure 154: Server interior
1 HDD 2
2
TPM board (if installed)
3
HDD 1
4 Fan1 SYS
5 HDD 4
6 HDD 3
7 Accessible drive bays
8 Memory modules
9 PSU
10 Fan2 SYS
11 CPU / CPU heat sink / CPU fan
12 System board
13 Expansion card slots
Appendix A
TX1310 M5 Upgrade and Maintenance Manual 227
