4TX1310 M5
SysBoardConn

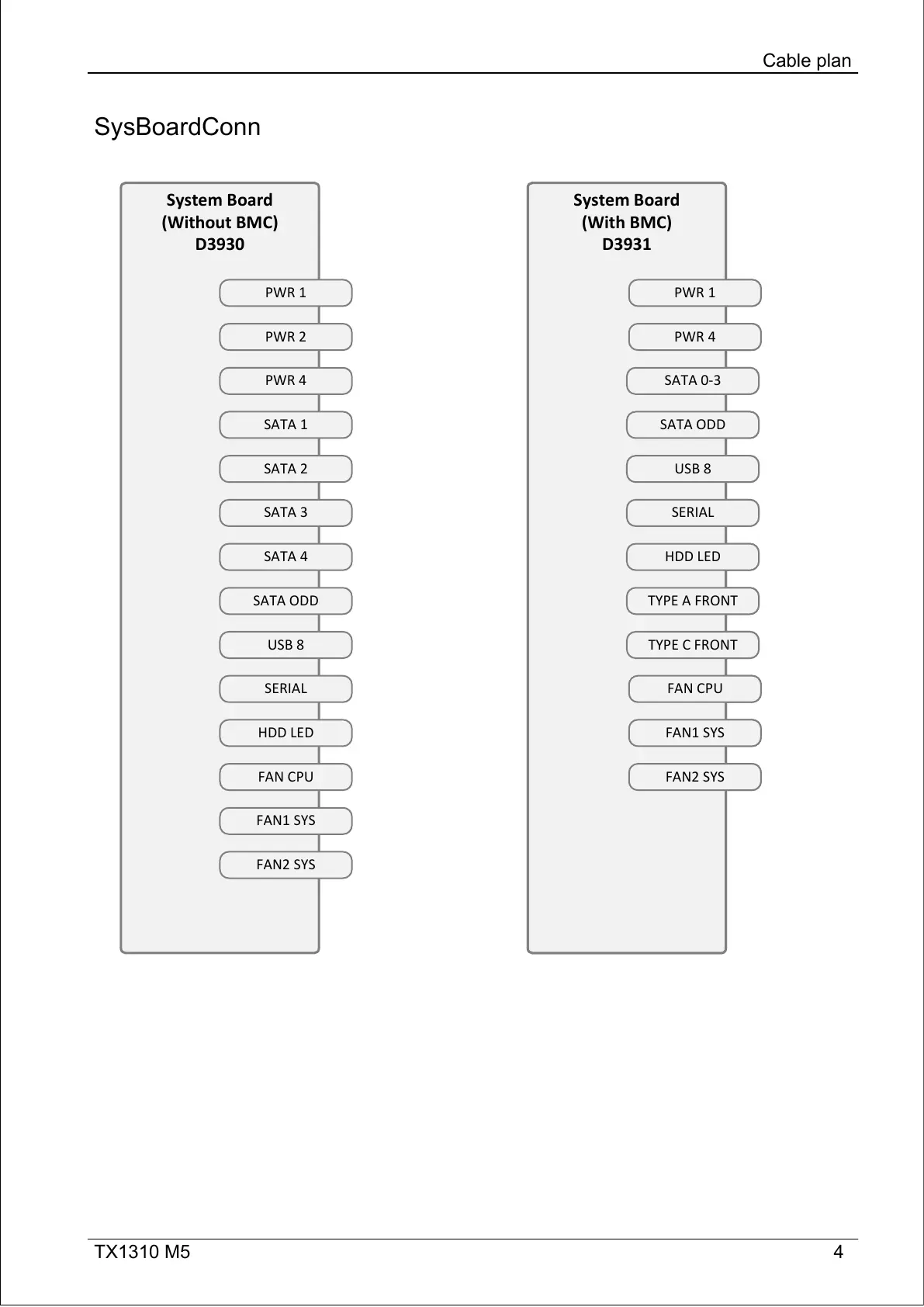

Cable plan
System Board
(Without BMC)
D3930
SATA 1
SATA 2
SATA 3
SATA 4
SATA ODD
USB 8
SERIAL
HDD LED
PWR 1
PWR 2
PWR 4
FAN CPU
FAN1 SYS
FAN2 SYS
System Board
(With BMC)
D3931
SATA 0-3
SATA ODD
USB 8
SERIAL
HDD LED
TYPE A FRONT
TYPE C FRONT
PWR 1
PWR 4
FAN CPU
FAN1 SYS
FAN2 SYS
System Board
(With BMC)
D3931
SATA 0-3
SATA ODD
USB 8
SERIAL
HDD LED
TYPE A FRONT
TYPE C FRONT
PWR 1
PWR 4
FAN CPU
FAN1 SYS
FAN2 SYS
