Remove the key ring with keys from the server rear.

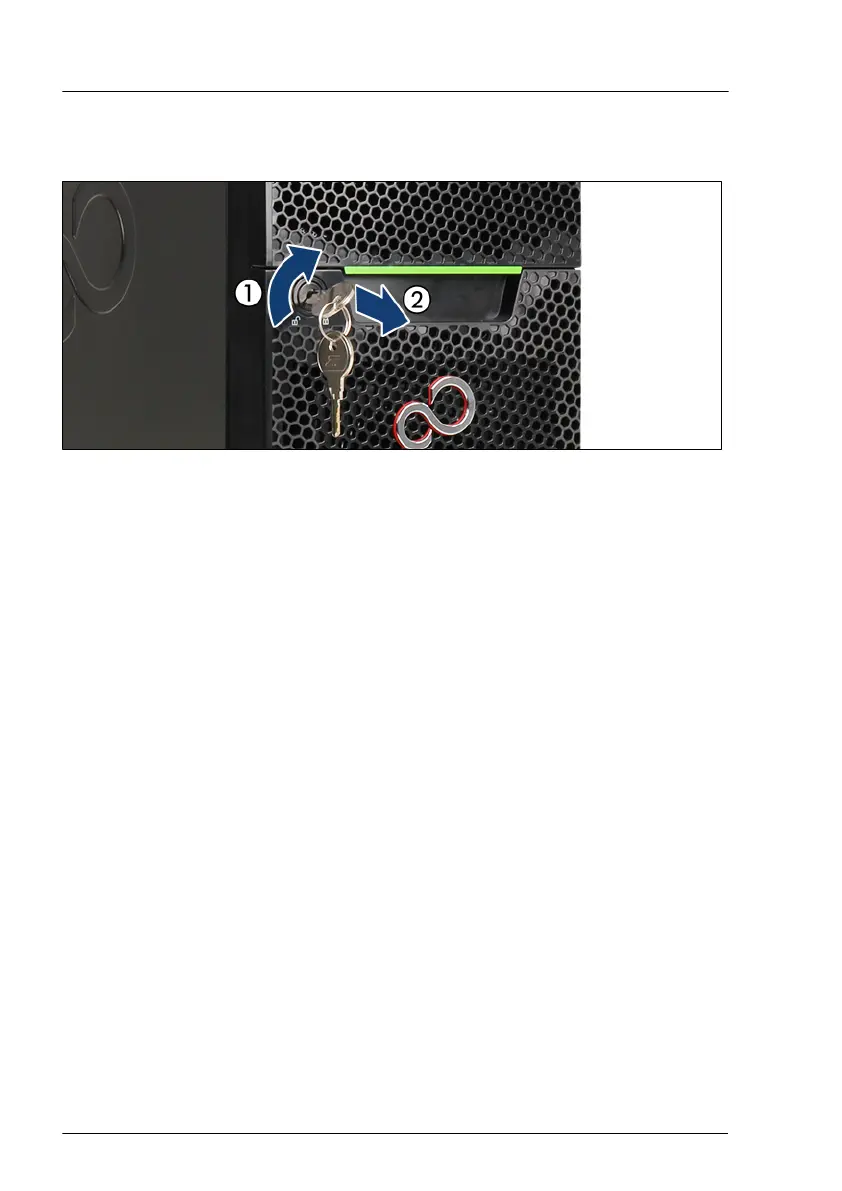

Figure 3: Unlocking the server
▶
Insert the key into the lock on the server front.
▶
T
urn the key clockwise to unlock the drive bay cover (1).
▶
Remove the key from the lock (2) and set aside for later use.
4.3
Removing the bay cover
▶
Unlock the server, see "Unlocking the server" on page 39.
Basic hardware procedures
40 Upgrade and Maintenance Manual TX1310 M5
