3–6 850 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL
FRONT CONTROL PANEL INTERFACE CHAPTER 3: INTERFACES
Working with
Graphical Display
Pages
The 850 display contains five main menu items labeled Targets, Status, Metering,
Setpoints, and Records located at the bottom of the screen. Choosing each main menu
item displays the corresponding sub-menu.

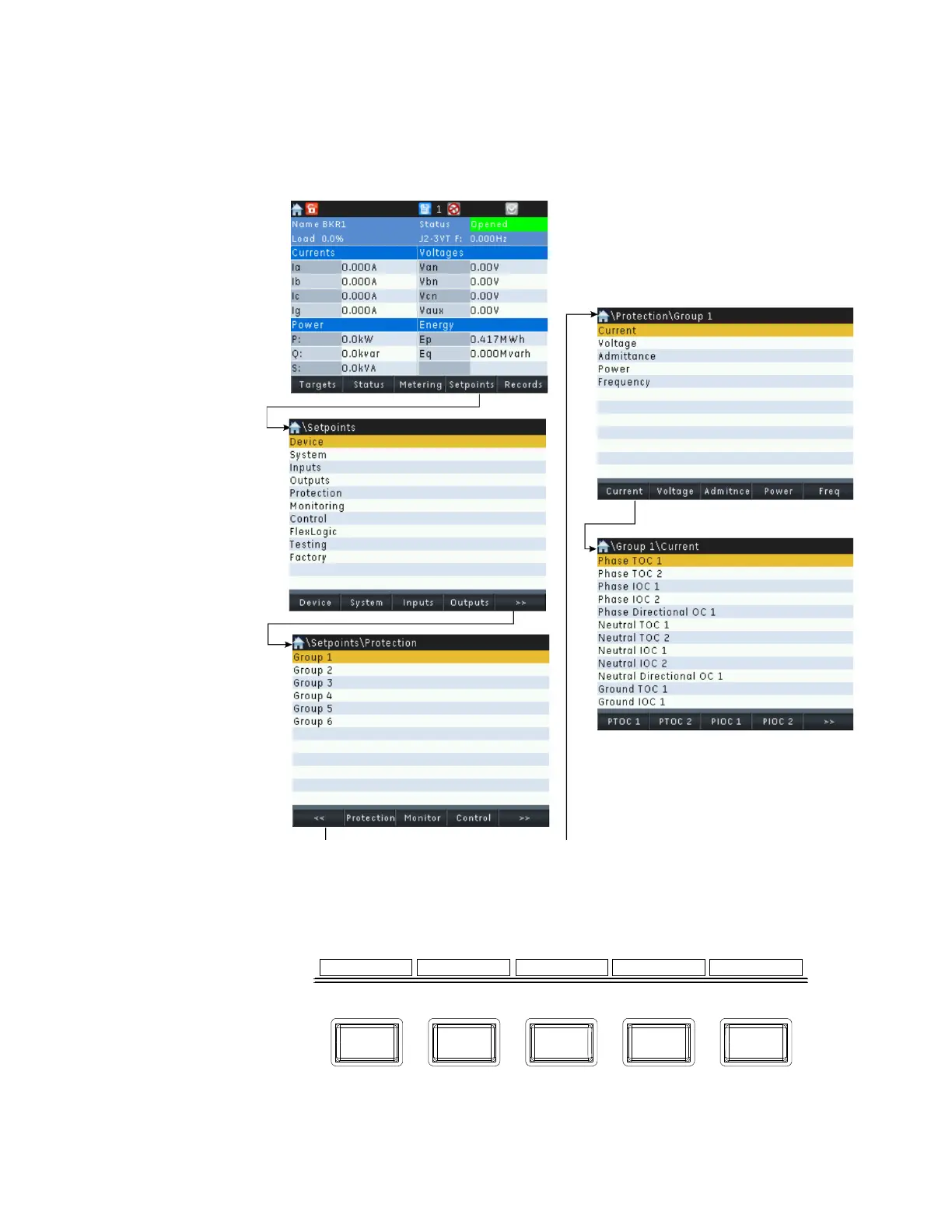

Figure 3-5: Typical paging operation from the main menu
There are two ways to navigate throughout the 850 menu: using the pushbuttons
corresponding to the soft tabs from the screen, or by selecting the item from the list of
items on the screen using the “Up” and “Down” pushbuttons to move the yellow
highlighted line, and pressing the pushbutton “Enter”.
Figure 3-6: Tab Pushbuttons
TARGETS STATUS METERING
SETPOINTS
RECORDS
