3–58 850 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL
SOFTWARE INTERFACE CHAPTER 3: INTERFACES
Protection Summary Protection Summary is a single screen which holds the summarized information of
different settings from Grouped Elements and Monitoring Elements.
The Protection Summary Screen allows the user to:
• view the output relay (R3, R4) assignments for the elements
• modify the output relay assignments for the elements
• view the Function status for the elements
• navigate to the respective element screen on a button click.
With the EnerVista 8 Series Setup software running and communications established,
select the Setpoints > Protection Summary menu item to open the Protection Summary

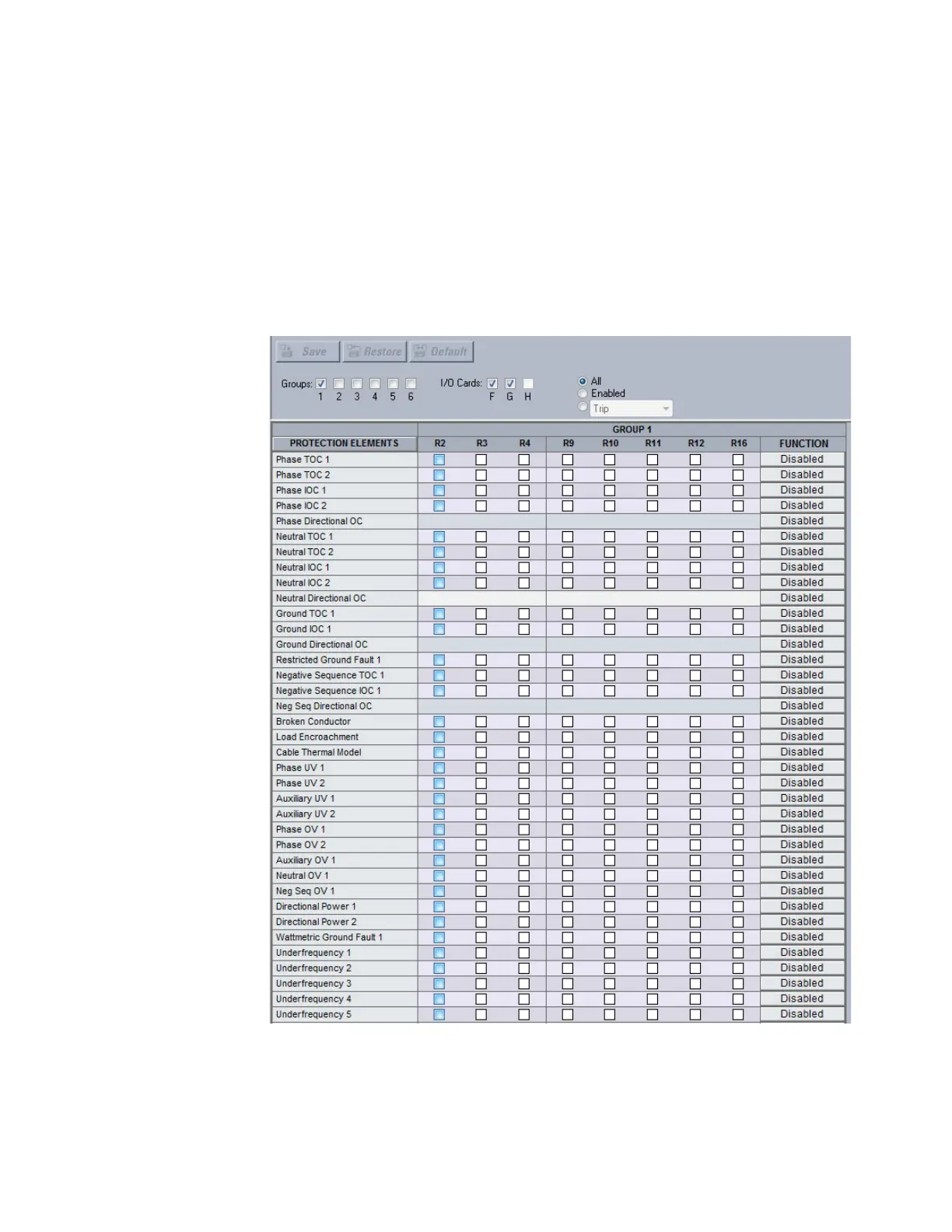

window. The Protection Summary screen is as follows:
