CHAPTER 5: DEVICE, SYSTEM, INPUT AND OUTPUT SETPOINTS DEVICE
850 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL 5–37
OFFLINE SETTINGS FILE

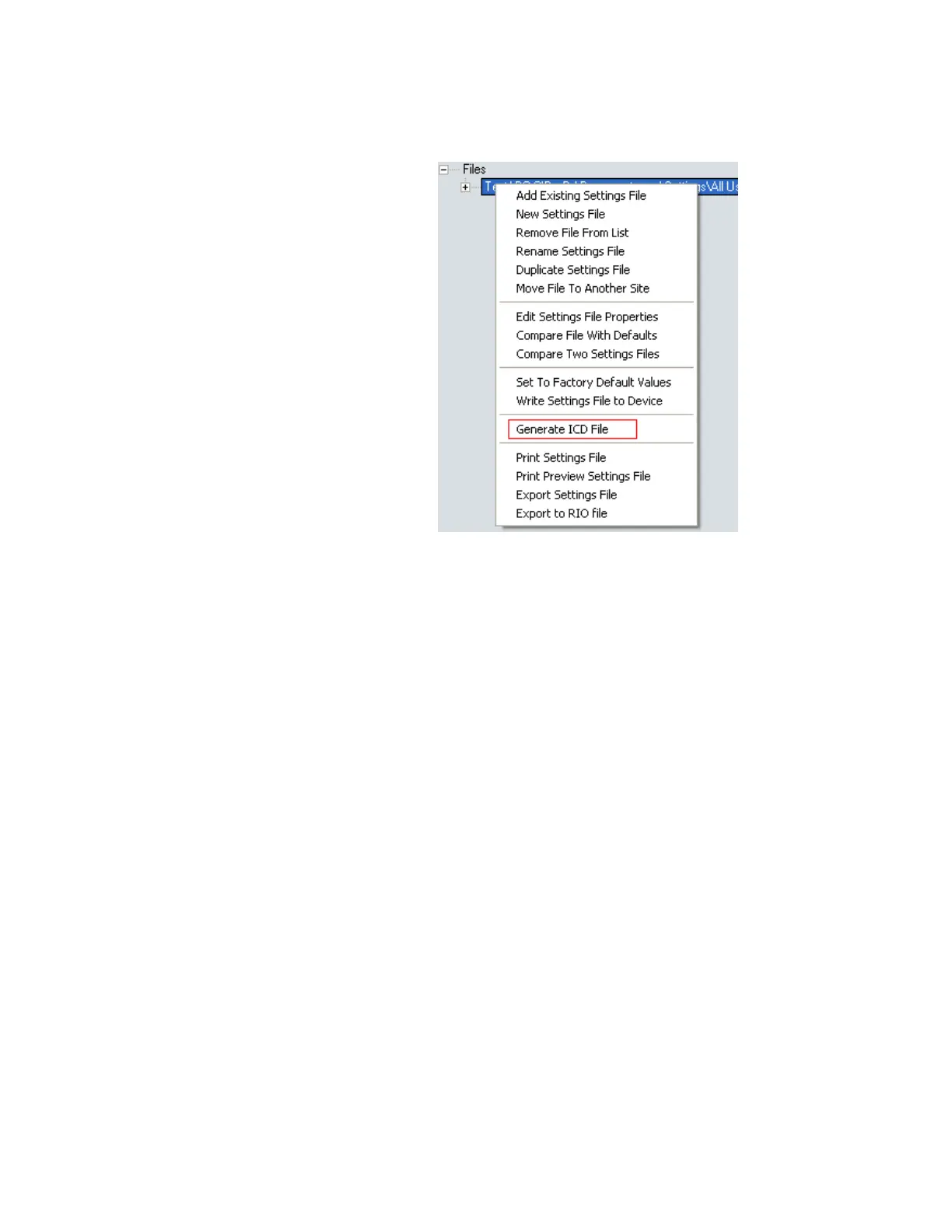

The Generate ICD file menu option generates a default ICD file with the respective order
code option and saves the file to the path selected previously.
IEC 61850 Configurator Details
The IEC61850 Configurator allows editing of all sections of the IEC61850 CID and ICD file.
No other operations can be performed in the EnerVista 8 Series Setup
software if the IEC
61850 Configurator is open. Close the IEC61850 session to perform other operations in the
EnerVista software.
The IEC 61850 configurator consists of five sections:
•ICD/CID
• Settings
•Reports
• GOOSE Reception
• GOOSE Transmission
