3–60 850 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL
SOFTWARE INTERFACE CHAPTER 3: INTERFACES
Offline Settings File Conversion
The EnerVista 8 Series Setup software supports conversion of offline settings files created
in the SR Series platform. This feature allows the conversion of existing 750 offline settings
files to 8 Series files for 850
devices.
The EnerVista 8 Series Setup software reduces the manual effort required when moving
from an older product to the 850. The settings file conversion feature takes an existing 750
settings file and generates a new settings file compatible with the 8 Series order code
specified. After the import is complete, the results are displayed in an interactive results
window.
Convert SR 750/760
Files
EnerVista 8 Series Setup software version supports conversion of SR 750/760 files to
850 settings files.
The conversion can only be initialized with EnerVista from the Offline/New Settings File
commands located in the taskbar.

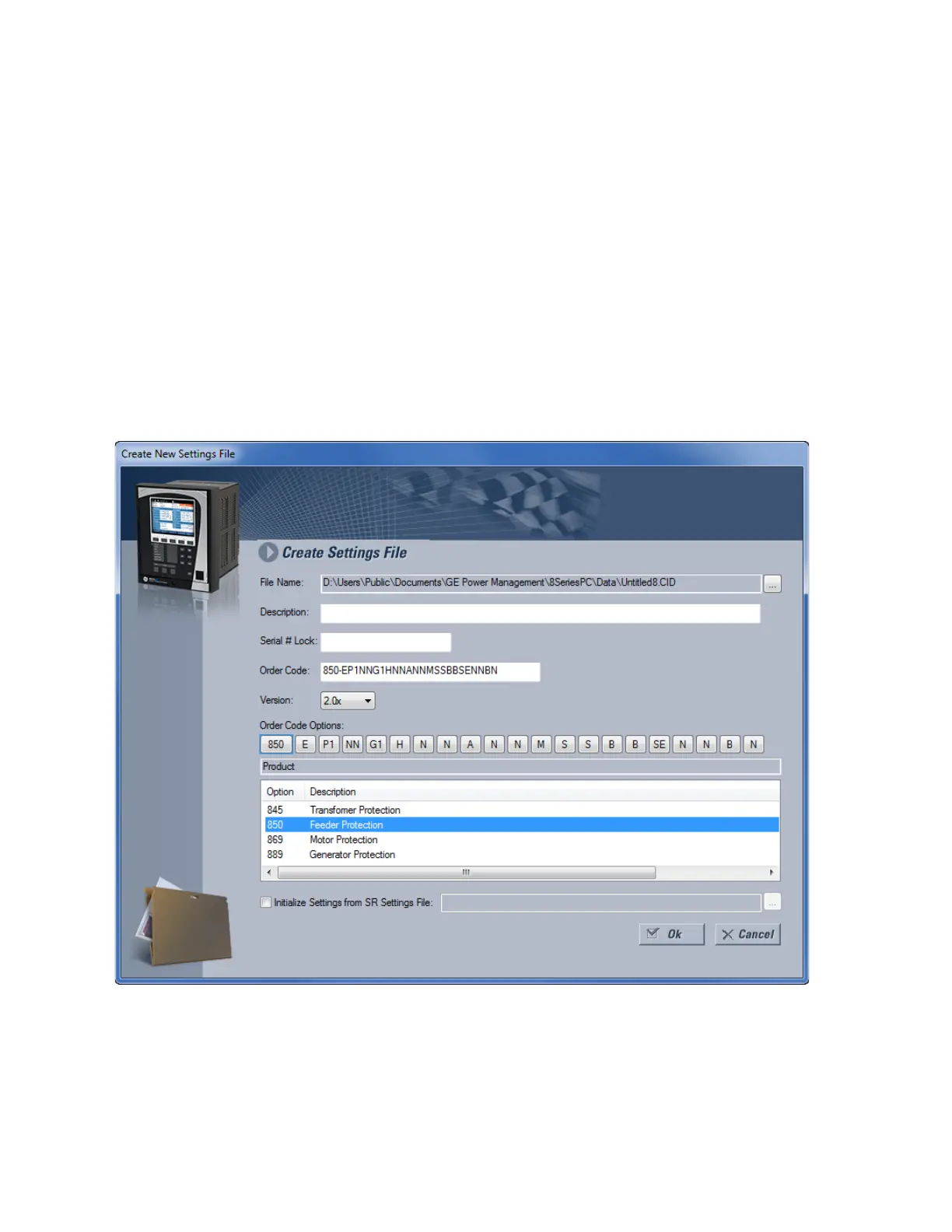

1. In the menu taskbar, click on Offline and select the New Settings File item. The
following Create New Setting s File dialog box appears, which allows for the setpoint
file conversion.
2. Select the Firmware Version and Order Code option for the new setpoint file.
3. For future reference, enter some useful information in the Description box to facilitate
the identification of the device and purpose for the file.
4. To select the file name and path for the new file, click the button beside the File Name
box.
