7.1.4 Main Menu Mode
The keypad provides access to the main menu mode. Select the Main Menu
mode by pressing the [Main Menu] key. Illustration 6.2 shows the resulting
read-out, which appears on the display of the keypad.
Lines 2 through 5 on the display show a list of parameter groups which can
be chosen by toggling the up and down buttons.

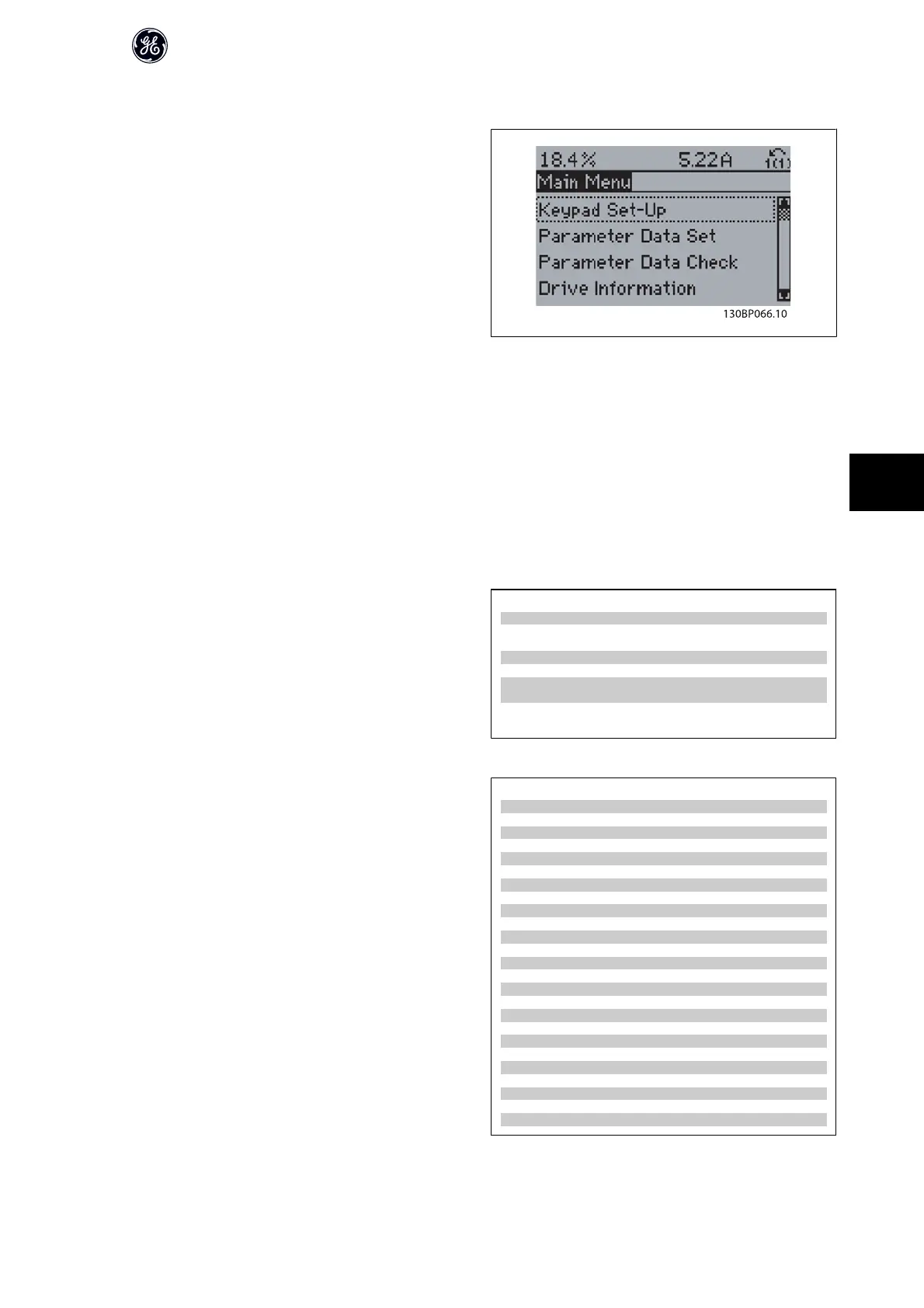

Illustration 7.1: Display example.
Each parameter has character(s) and number which remain the same regardless of the programming mode. In the Main Menu mode, the parameters are further
divided into groups: Macros, Keypad Set-Up, Parameter Data Set, Parameter Data Check, Drive Information, Data Readouts, Logs & I/O Option Status, and Advanced
Parameter Data Set.
All parameters can be changed in the Main Menu. The configuration of the unit (par. H-40 Configuration Mode) will determine other parameters available for
programming. For example, selecting Closed Loop enables additional parameters related to closed loop operation. Option cards added to the unit enable additional
parameters associated with the option device.
7.1.5 Parameter Selection
Main Menu Item Parameter Groups:
Keypad Set-Up K-##
Parameter Data Set F-##, E-##, C-##, P-##, H-##, AN-##, SP-##, O-##,
AO-##, DN-##, PB-##, LN-##, BN-##
Drive Information ID-##
Data Readouts DR-##
Logs & I/O Option
Status
LG-##
Advanced Parame-
ter Data Set
AP-##, FB-##, T-##, CL-##, XC-##, PC-##, LC-##,
B-##
Table 7.1: Parameter Groups in Main Menu Items
Group no. Parameter group:
K-## Keypad Set-Up
F-## Fundamental Parameters
E-## Digital In/Out
C-## Frequency Control Functions
P-## Motor Data
H-## High Perf Parameters
AN-## Analog In/Out
SP-## Special Functions
O-## Options / Comms
AO-## Analog I/O Option
DN-## DeviceNet
PB-## Profibus
LN-## LonWorks
BN-## BACnet
ID-## Drive Information
DR-## Data Readouts
LG-## Logs & I/O Opt. Status
AP-## HVAC Appl. Param.
FB-## Fire/Bypass Operation
T-## Timed Functions
CL-## PID Closed Loop
XC-## Ext. PID Closed Loop
PC-## Pump Controller
LC-## Logic Controller
B-## Braking Functions
Table 7.1: Parameter groups.
