6 How to operate the frequency converter
6.1.1 Two ways of operating
The frequency converter can be operated in 2 ways:
1. keypad
3. RS-485 serial communication or USB, both for PC connection
If the frequency converter is fitted with network option module, please refer to relevant documentation.
6.1.2 How to operate the keypad
The following instructions are valid for the keypad.

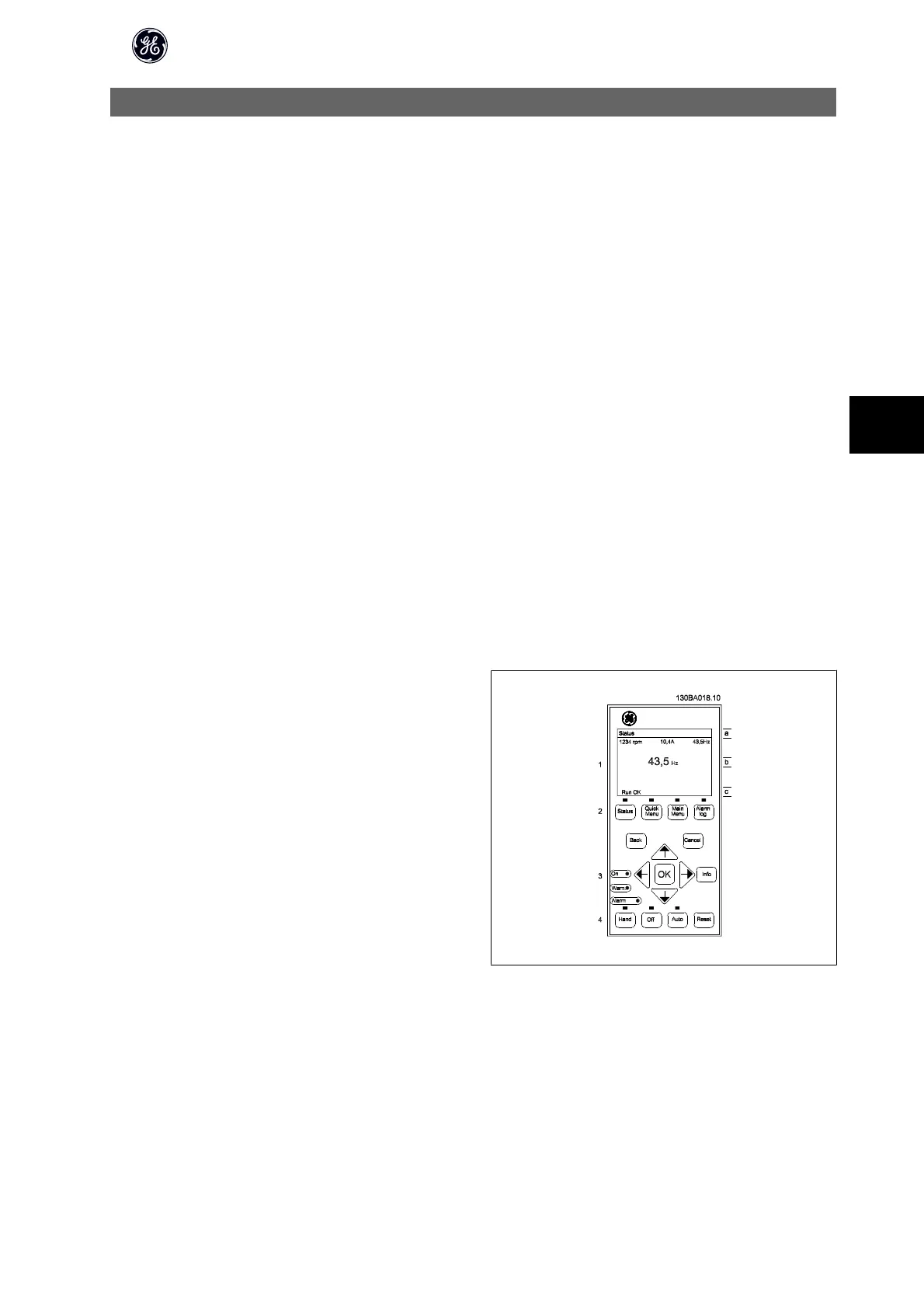

The graphical keypad is divided into four functional groups:
1. Graphical display with Status lines.
2. Menu keys and indicator lights (LED's) - selecting mode, changing parameters and switching between display functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
Graphical display:
The LCD-display is back-lit with a total of 6 alpha-numeric lines. All data is displayed on the Keypad which can show up to five operating variables while in [Status]
mode.
Display lines:
a. Status line: Status messages displaying icons and graphics.
b. Line 1-2: Operator data lines displaying data and variables defined
or chosen by the user. By pressing the [Status] key, up to one extra
line can be added.
c. Status line: Status messages displaying text.
AF-600 FP High Power Operating Instructions
71
6
