5.4.2 Installation on pedestal
This section describes the installation of a pedestal unit available for the fre-
quency converters Unit Sizes 41 and 42. This is a 200 mm high pedestal that
allows these Units to be floor mounted. The front of the pedestal has openings
for input air to the power components.
The frequency converter gland plate must be installed to provide adequate
cooling air to the control components of the frequency converter via the door
fan and to maintain the IP21/NEMA 1 or IP54/NEMA 12 degrees of Unit pro-
tections.

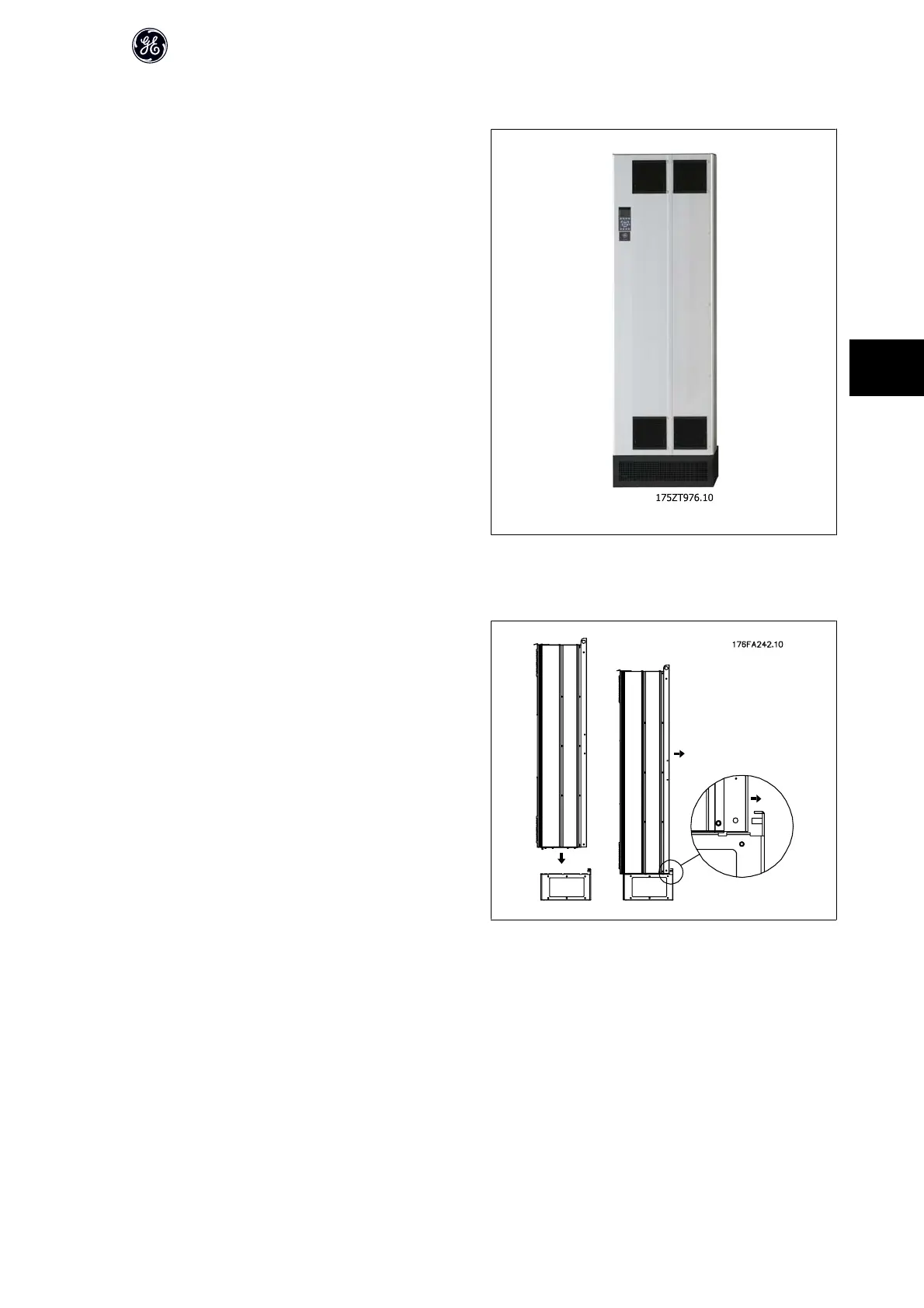

Illustration 5.35: Drive on pedestal
There is one pedestal that fits both Unit Sizes 41 and 42. Please consult GE for more information. The pedestal is standard for Unit Size 51.
Required Tools:
• Socket wrench with 7-17 mm sockets
•T30 Torx Driver
Torques:
• M6 - 4.0 Nm (35 in-lbs)
• M8 - 9.8 Nm (85 in-lbs)
• M10 - 19.6 Nm (170 in-lbs)
Kit Contents:
• Pedestal parts
• Instruction manual
Illustration 5.36: Mounting of drive to pedestal.
AF-600 FP High Power Operating Instructions
67
