7.1.3 Macros
The Macros provide quick and easy access to all parameters required for the majority of AF-600 FP applications including most VAV and CAV supply and return
fans, cooling tower fans, Primary, Secondary and Condenser Water Pumps and other pump, fan and compressor applications.

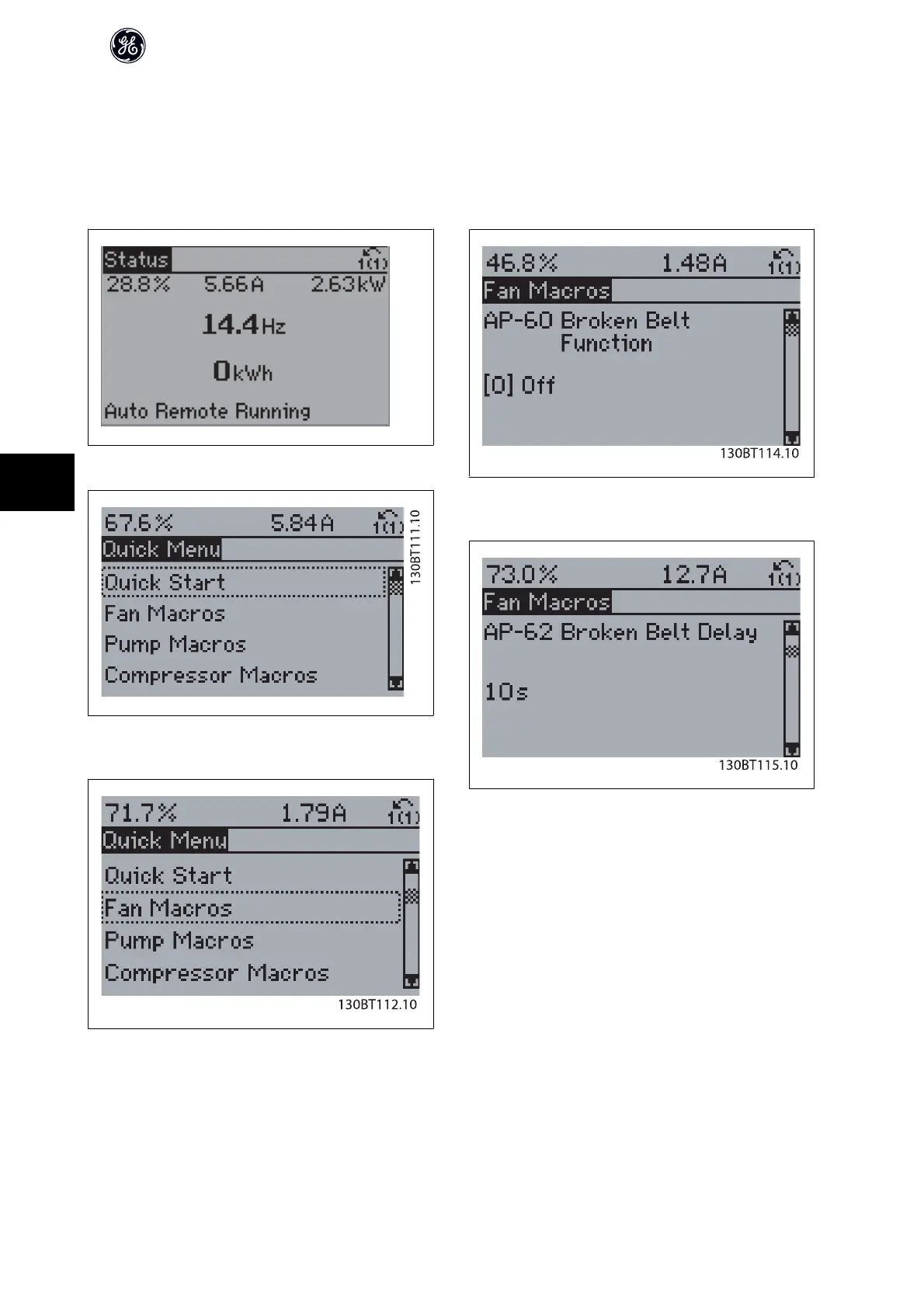

How to access Macros - example
130BT110.1
0
Illustration 7.1: Step 1: Turn on the frequency converter (green LED lights)
Illustration 7.1: Step 2: Press the [Quick Menus] button (Quick Menus choices
appear).
Illustration 7.1: Step 3: Use the up/down navigation keys to scroll down to
Fan Macros. Press [OK].
Illustration 7.1: Step 4: Use the up/down navigation keys to scroll down to
find AP-62 Broken Belt Delay.
Illustration 7.1: Step 5: Press [OK].
AF-600 FP High Power Operating Instructions
88
7
