Terminal locations - Unit Size 52
Take the following position of the terminals into consideration when designing the cable access.

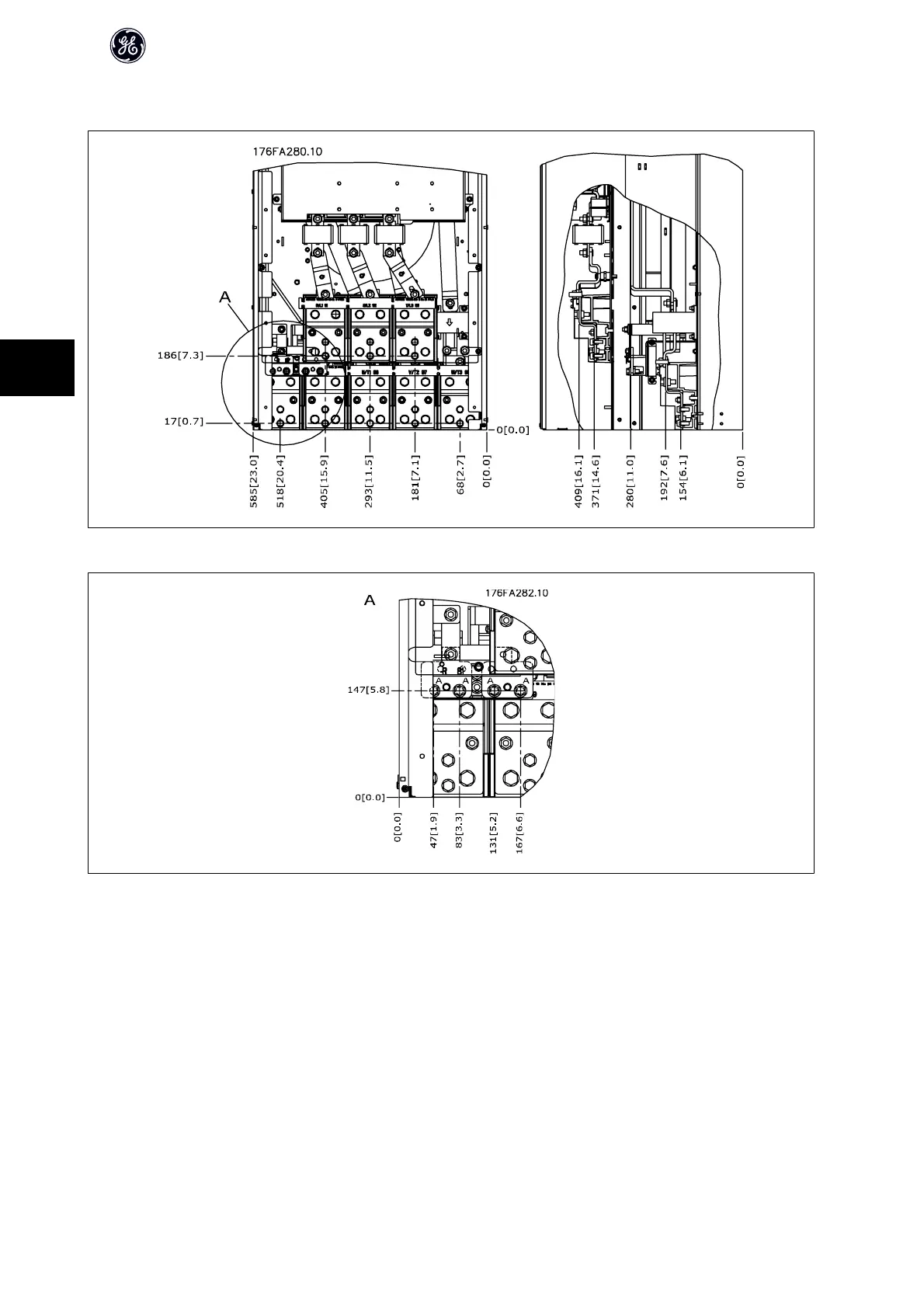

Illustration 5.19: IP00 Open Chassis drive type power connection positions
Illustration 5.20: IP00 Open Chassis drive type power connection positions
Note that the power cables are heavy and difficult to bend. Consider the optimum position of the frequency converter for ensuring easy installation of the cables.
Each terminal allows use of up to 4 cables with cable lugs or use of standard box lug. Earth is connected to relevant termination point in the drive.
AF-600 FP High Power Operating Instructions
56
5
