1. par. AN-01 Live Zero Timeout Function
2. par. O-04 Control Word Timeout Function
The output frequency of the frequency converter can be:
• [1] frozen at the present value
• [2] overruled to stop
• [3] overruled to jog speed
• [4] overruled to max. speed
•[5] overruled to stop with subsequent trip
[0] * Off
[1] Freeze output
[2] Stop
[3] Jogging
[4] Max. speed
[5] Stop and trip

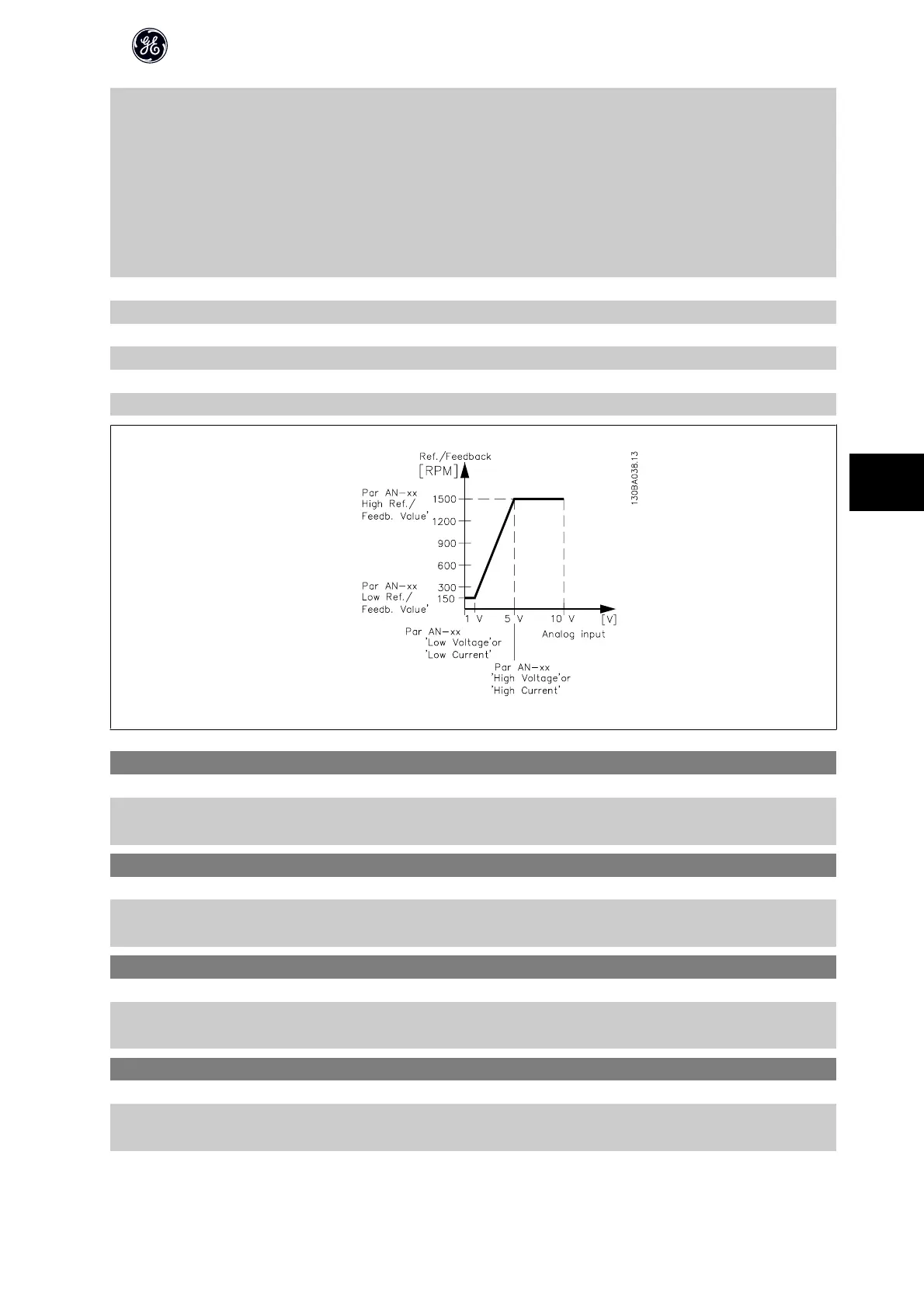

AN-10 Terminal 53 Low Voltage
Range: Function:
0.07 V* [0.00 - par. AN-11 V] Enter the low voltage value. This analog input scaling value should correspond to the low reference/
feedback value set in par. AN-14 Terminal 53 Low Ref./Feedb. Value.
AN-11 Terminal 53 High Voltage
Range: Function:
10.00 V* [par. AN-10 - 10.00 V] Enter the high voltage value. This analog input scaling value should correspond to the high reference/
feedback value set in par. AN-15 Terminal 53 High Ref./Feedb. Value.
AN-14 Terminal 53 Low Ref./Feedb. Value
Range: Function:
0.000 N/A* [-999999.999 - 999999.999 N/A] Enter the analog input scaling value that corresponds to the low voltage/low current set in par.
AN-10 Terminal 53 Low Voltage and par. AN-12 Terminal 53 Low Current.
AN-15 Terminal 53 High Ref./Feedb. Value
Range: Function:
50.000 N/A* [-999999.999 - 999999.999 N/A] Enter the analog input scaling value that corresponds to the high voltage/high current value set in par.
AN-11 Terminal 53 High Voltage and par. AN-13 Terminal 53 High Current.
AF-600 FP High Power Operating Instructions
91
7
